5.1.2 Configuring Delta F Oxygen Sensor Probes
There are 13 selections available for the Delta F Oxygen Sensor probes. These are highlighted by the box in the
Probe Configuration window shown in Figure 54 below.

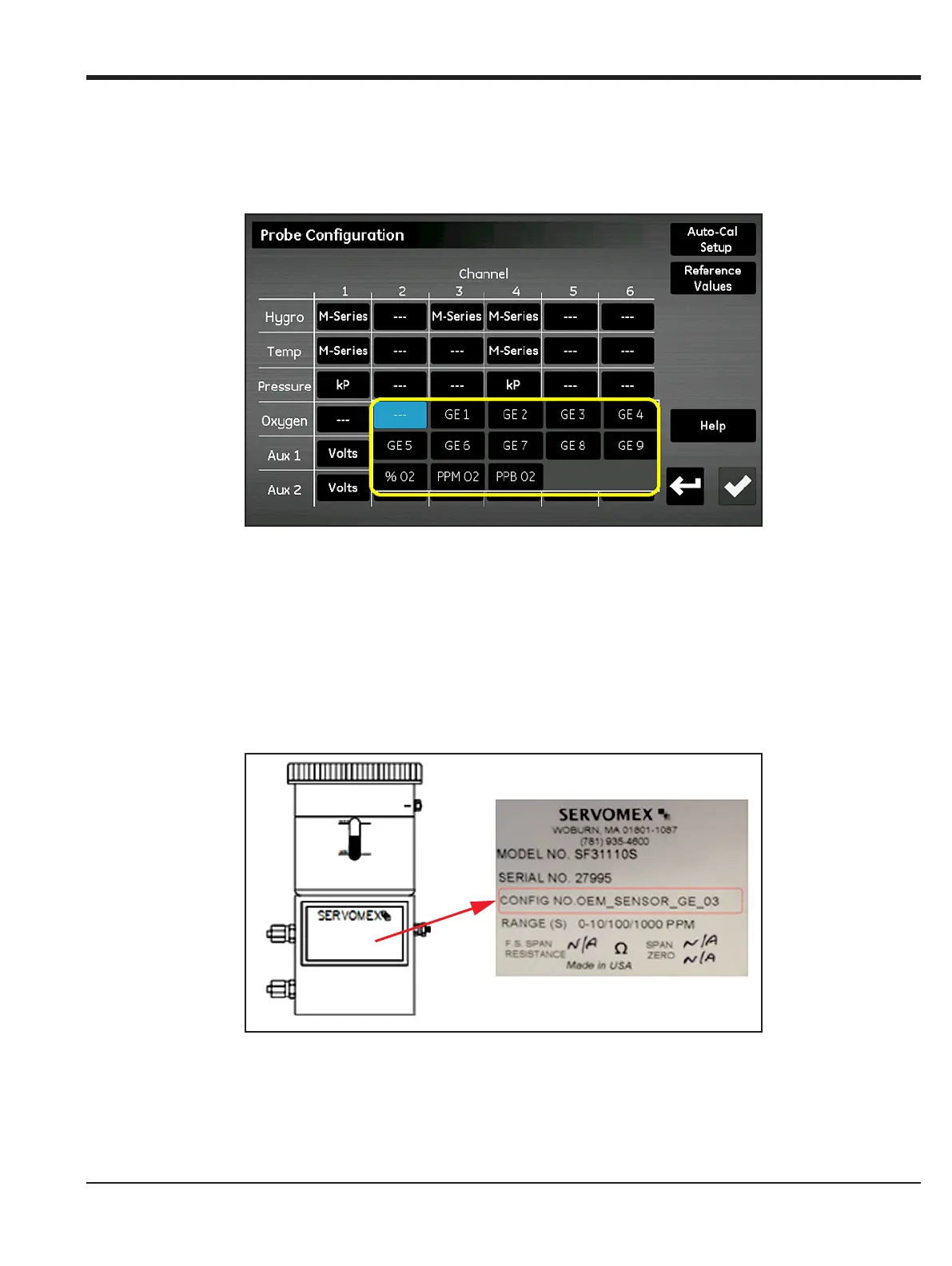

Figure 54: Delta F Probe Configuration Screen
The Delta F Oxygen Sensor probes are available in the two following types:
• GE 1 through GE 9, which include temperature compensation
• % O2, PPM O2 and PPB O2, which do not include temperature compensation
To properly configure your Delta F Sensor probe, use the information found on the label affixed to the sensor
body. Figure 55 below shows a sample label for a
GE3 sensor type.
Figure 55: Sample Delta F Probe Label
