GE Multilin g60

5-196 G60 Generator Protection System GE Multilin
5.6 GROUPED ELEMENTS 5 SETTINGS
5

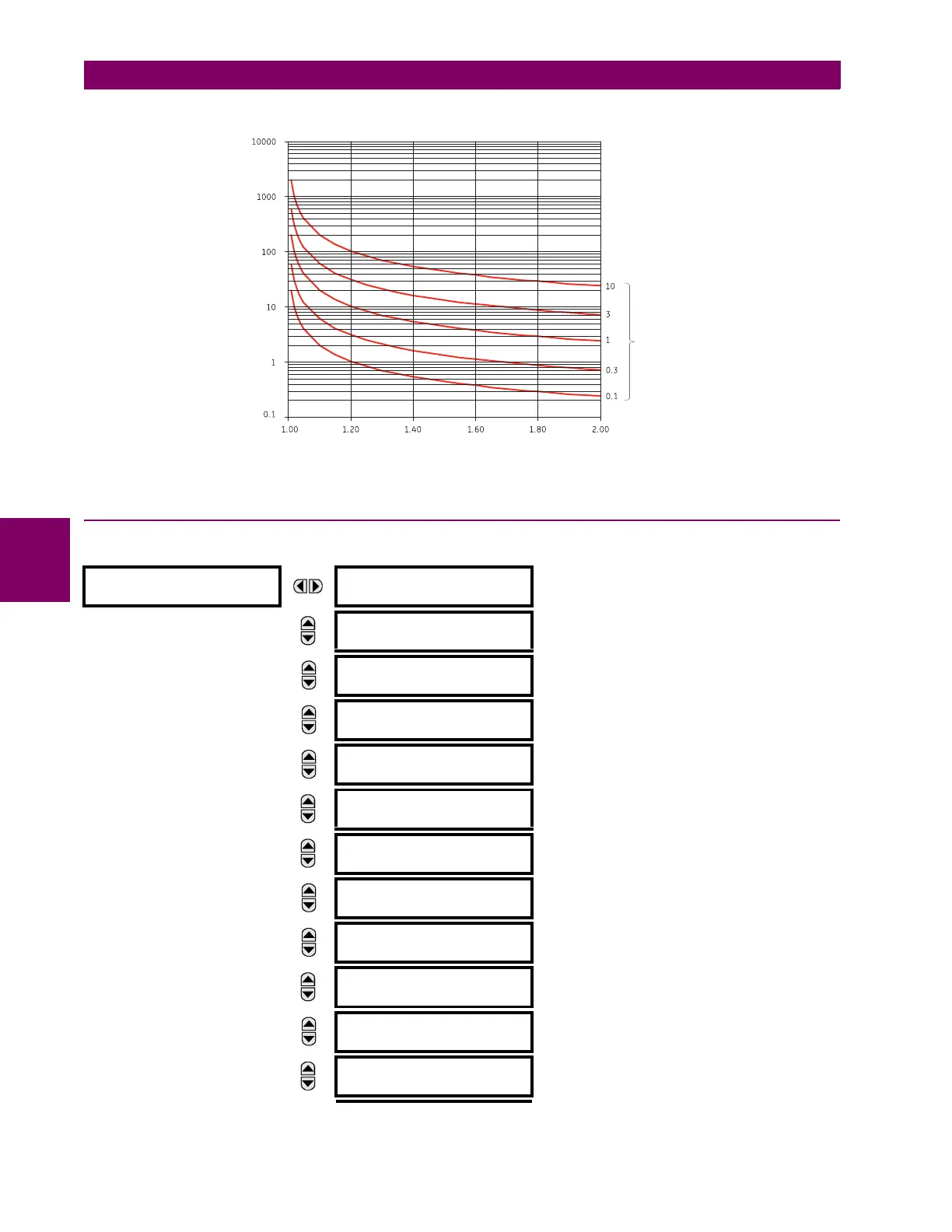

The volts/hertz inverse C curves are shown below.
Figure 5–105: VOLTS-PER-HERTZ CURVES, INVERSE CURVE C
5.6.13 LOSS OF EXCITATION
PATH: SETTINGS  GROUPED ELEMENTS  SETTING GROUP 1(6)  LOSS OF EXCITATION
 LOSS OF
 EXCITATION
LOSS OF EXCITATION
FUNCTION: Disabled
Range: Disabled, Enabled
MESSAGE
LOSS OF EXCITATION
SOURCE: SRC 1
Range: SRC 1, SRC 2, SRC 3, SRC 4
MESSAGE
LOSS OF EXCITATION
CENTER 1: 10.00 ohm
Range: 0.10 to 300.00 ohms in steps of 0.01
MESSAGE
LOSS OF EXCITATION
RADIUS 1: 8.00 ohm
Range: 0.10 to 300.00 ohms in steps of 0.01
MESSAGE
EXCITATION V SUPV 1:
Enabled
Range: Disabled, Enabled
MESSAGE
LOSS OF EXCITATION
PKP DELAY1: 0.050 s
Range: 0.000 to 65.535 s in steps of 0.01
MESSAGE
LOSS OF EXCITATION
CENTER 2: 12.00 ohm
Range: 0.10 to 300.00 ohms in steps of 0.01
MESSAGE
LOSS OF EXCITATION
RADIUS 2: 10.00 ohm
Range: 0.10 to 300.00 ohms in steps of 0.01
MESSAGE
LOSS OF EXCITATION
V SUPV 2: Enabled
Range: Disabled, Enabled
MESSAGE
LOSS OF EXCITATION
PKP DELAY2: 0.500 s
Range: 0.000 to 65.535 s in steps of 0.01
MESSAGE
LOSS OF EXCITATION
UV SUPV: 0.700 pu
Range: 0.000 to 1.250 pu in steps of 0.001
MESSAGE
LOSS OF EXCIT BLK:
Off
Range: FlexLogic™ operand
Time to trip (in seconds)
Multiples of volts per hertz pickup
830740A1.CDR
Time
delay
setting
