10 APPLICATION OF SETTINGS 10.1 SETTING EXAMPLE
10
10.1.13 INPUTS/OUTPUTS

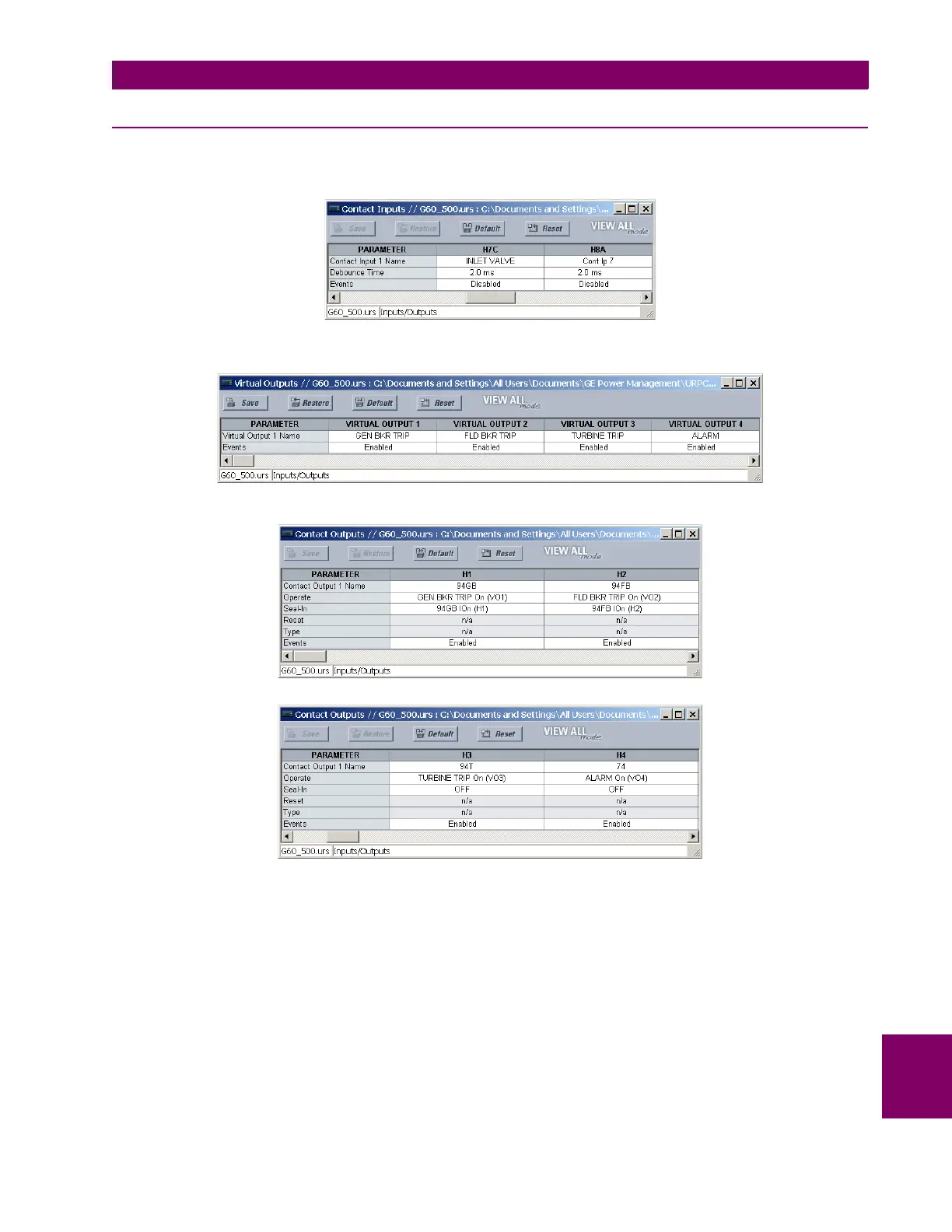

The following inputs and outputs will be used in this example. Make the following changes in EnerVista UR Setup or
through the
SETTINGS  INPUTS/OUTPUTS  CONTACT INPUTS  CONTACT INPUT H7a(H7c) menus:
Make the following changes in EnerVista UR Setup or through the
SETTINGS  INPUTS/OUTPUTS  VIRTUAL OUTPUTS 
VIRTUAL OUTPUT 1(4) menus:
Make the following changes in EnerVista UR Setup or through the SETTINGS  INPUTS/OUTPUTS  CONTACT OUTPUTS
 CONTACT OUTPUT H1(H4) menus:
