36 MM300 MOTOR MANAGEMENT SYSTEM – QUICKSTART GUIDE
WORKING WITH SETPOINTS AND SETPOINT FILES CHAPTER 2: INSTALLATION

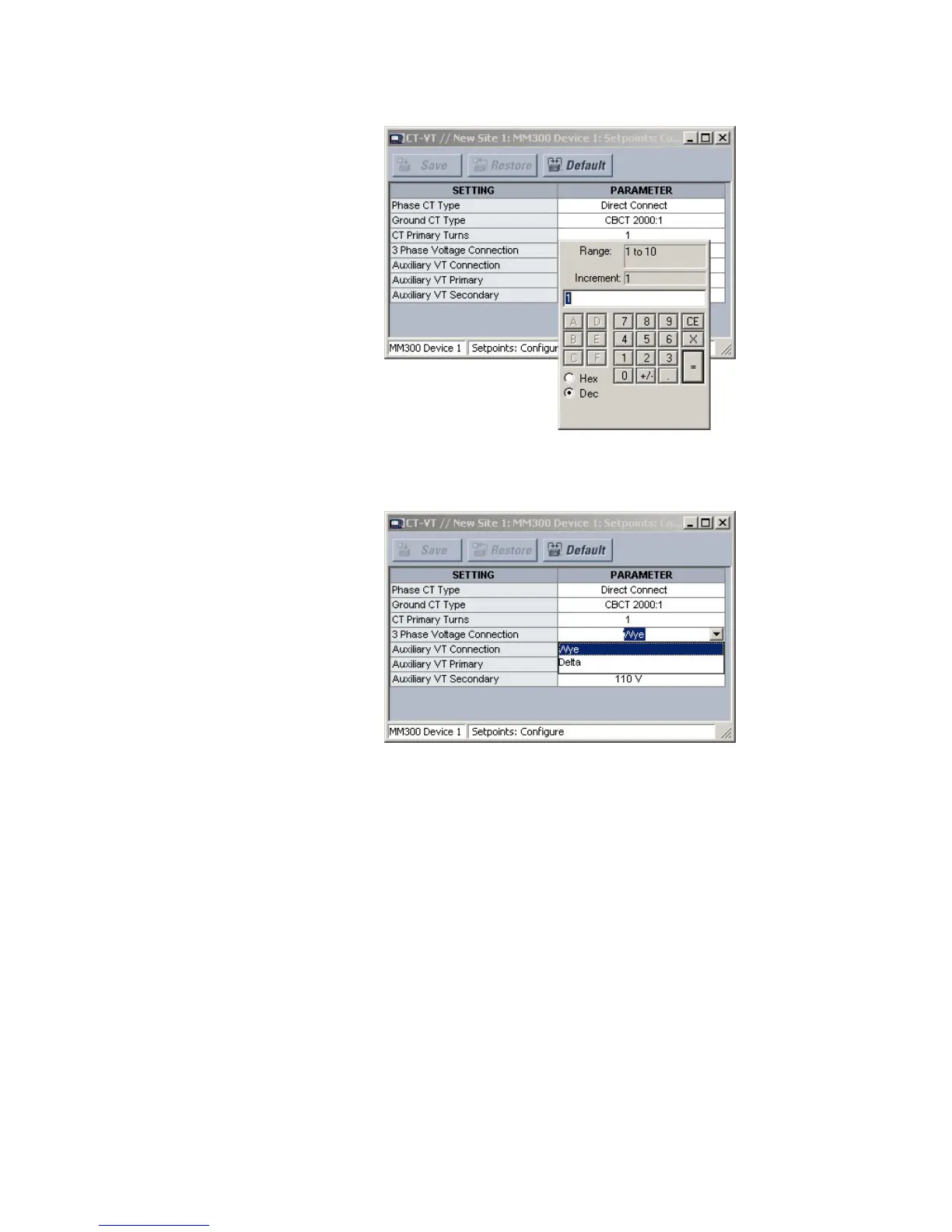

5. For setpoints requiring non-numerical pre-set values (e.g. CT Primary below), clicking
anywhere within the setpoint value box displays a drop-down selection menu arrow.
Select the desired value from this list.
6. For setpoints requiring an alphanumeric text string (e.g. "relay name"), the value may
be entered directly within the setpoint value box.
7. In the Setpoint > Config > CT-VT dialog box, click on Save to save the values into the
MM300 . Click YES to accept any changes and exit the window. Click Restore to retain
previous values. Click Default to restore Default values.
File support
Opening any EnerVista MM300/MM200 Setup file will automatically launch the application
or provide focus to the already opened application. If the file is a Settings file (has a ‘SR3’
extension) which had been removed from the Settings List tree menu, it will be added back
to the Settings List tree.
New files will be automatically added to the tree.
Using setpoints files
The EnerVista MM300/MM200 Setup software interface supports three ways of handling
changes to relay settings:
