CHAPTER 2: INSTALLATION CONNECTING ENERVISTA MM300 SETUP TO THE RELAY
MM300 MOTOR MANAGEMENT SYSTEM – QUICKSTART GUIDE 33

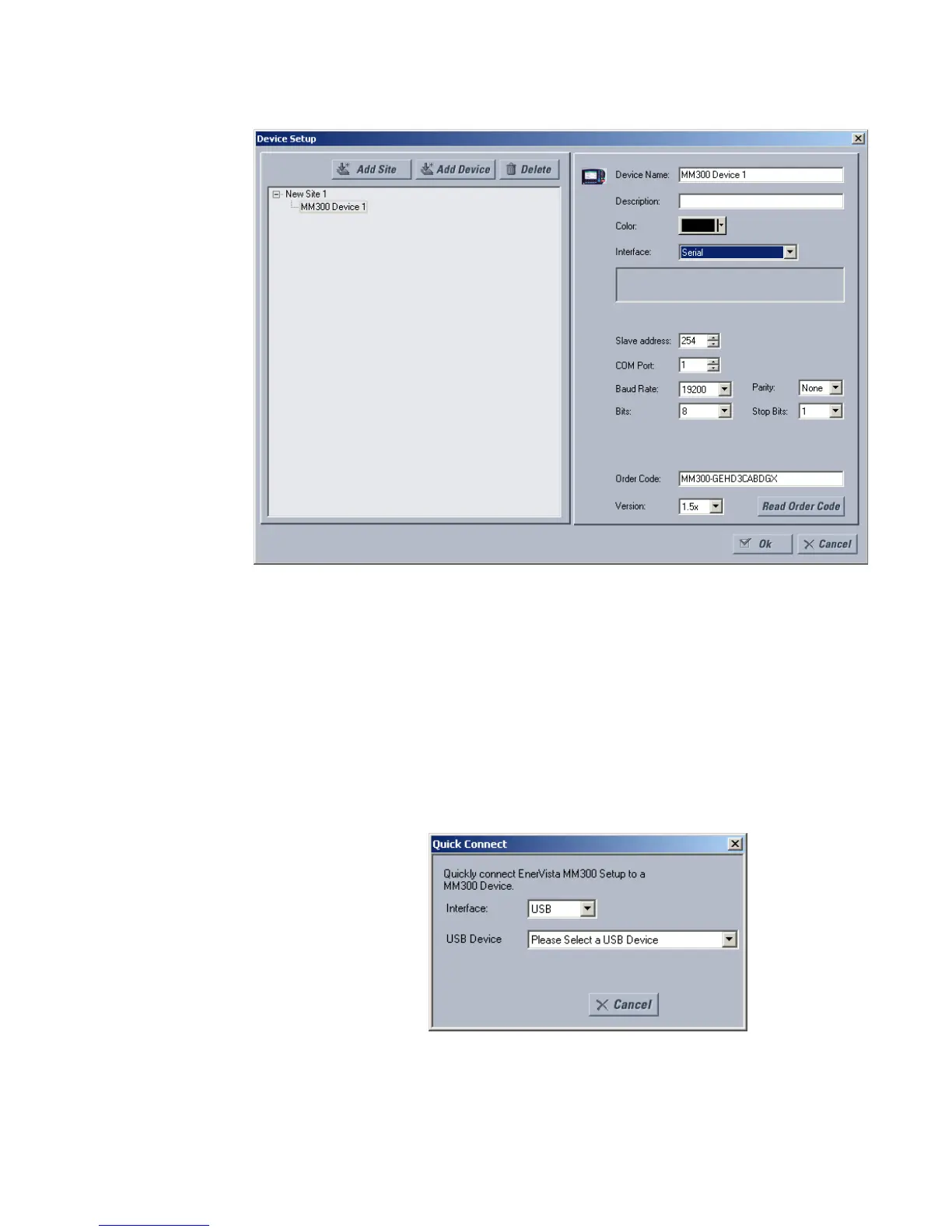

8. Click the Read Order Code button to connect to the MM300 device and upload the
order code.
9. Click OK when the relay order code has been received. The new device will be added
to the Site List window (or Online window) located in the top left corner of the main
EnerVista MM300/MM200 Setup window.
The MM300 Site Device has now been configured for Serial communications. Proceed to
Connecting to the Relay below, to begin communications.
Using the Quick Connect feature
The Quick Connect button can be used to establish a fast connection through the front
panel USB port of a MM300
relay. The following window will appear when the
QuickConnect button is pressed:
As indicated by the window, the "Quick Connect" feature can quickly connect the EnerVista
MM300/MM200 Setup
software to a MM300 front port if the USB is selected in the interface
drop-down list. Select "MM300 Relay" and press the Connect button.
When connected, a new Site called “Quick Connect” will appear in the Site List window.
