NOTICE

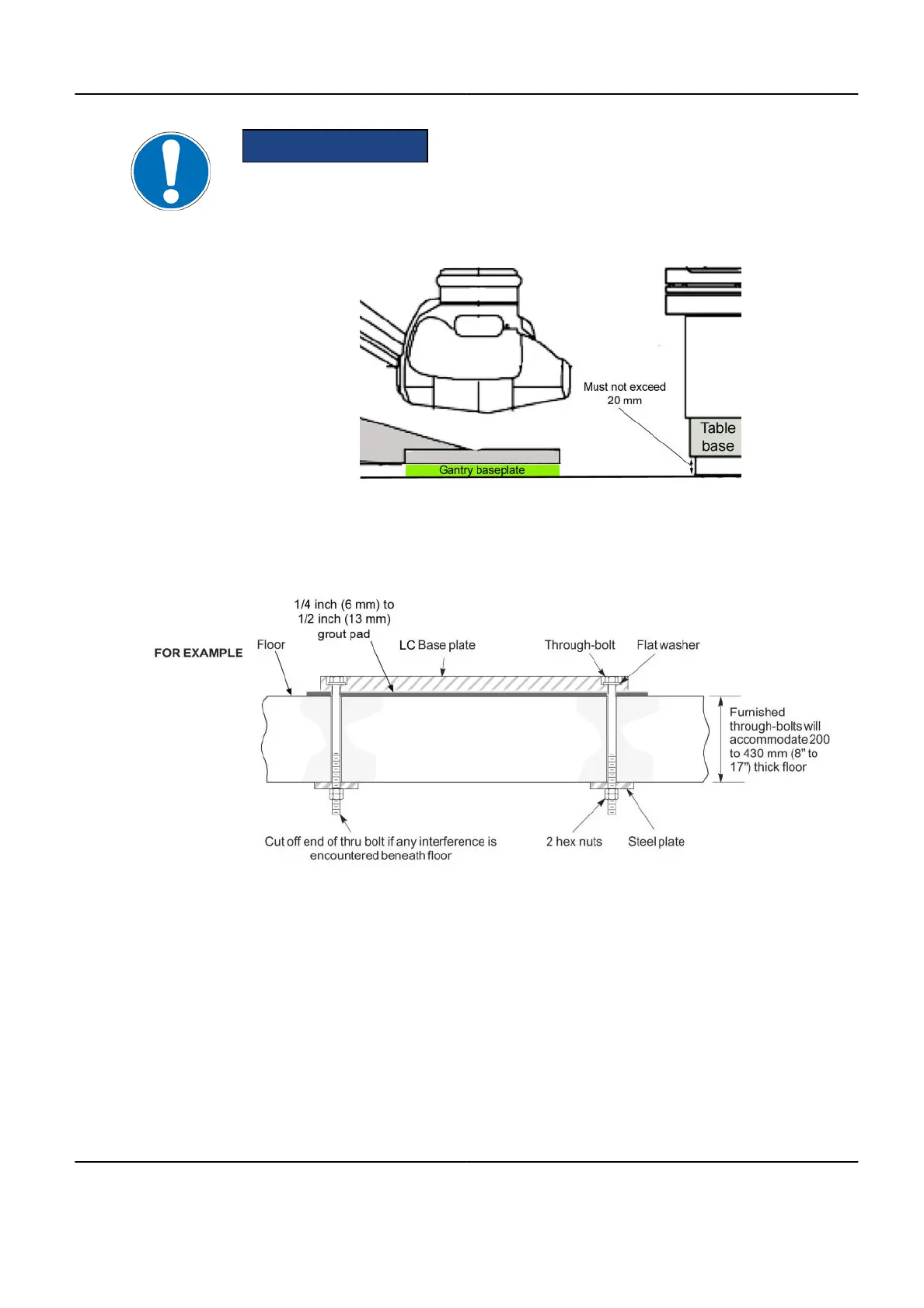

The gap between the Table Foot bottom end the Gantry Baseplate bottom end
shall be lower than 20 mm (0.97 in).
Illustration 2-49: Gap between Table Foot bottom end the Gantry Baseplate
bottom
The preferred installation method for the LC Positioner or the Omega tables is through-bolting.
The through-bolting method can be used in all seismic zones. If through-bolting cannot be used,
use provided floor anchors instead.
Illustration 2-50: Through–Bolt Supplied (Slab Type Floor Construction)
Optima IGS 320, Optima IGS 330 Pre-Installation Manual
Direction 5537562-1-1EN, Revision 3
Chapter 2 Equipment Requirements 105
