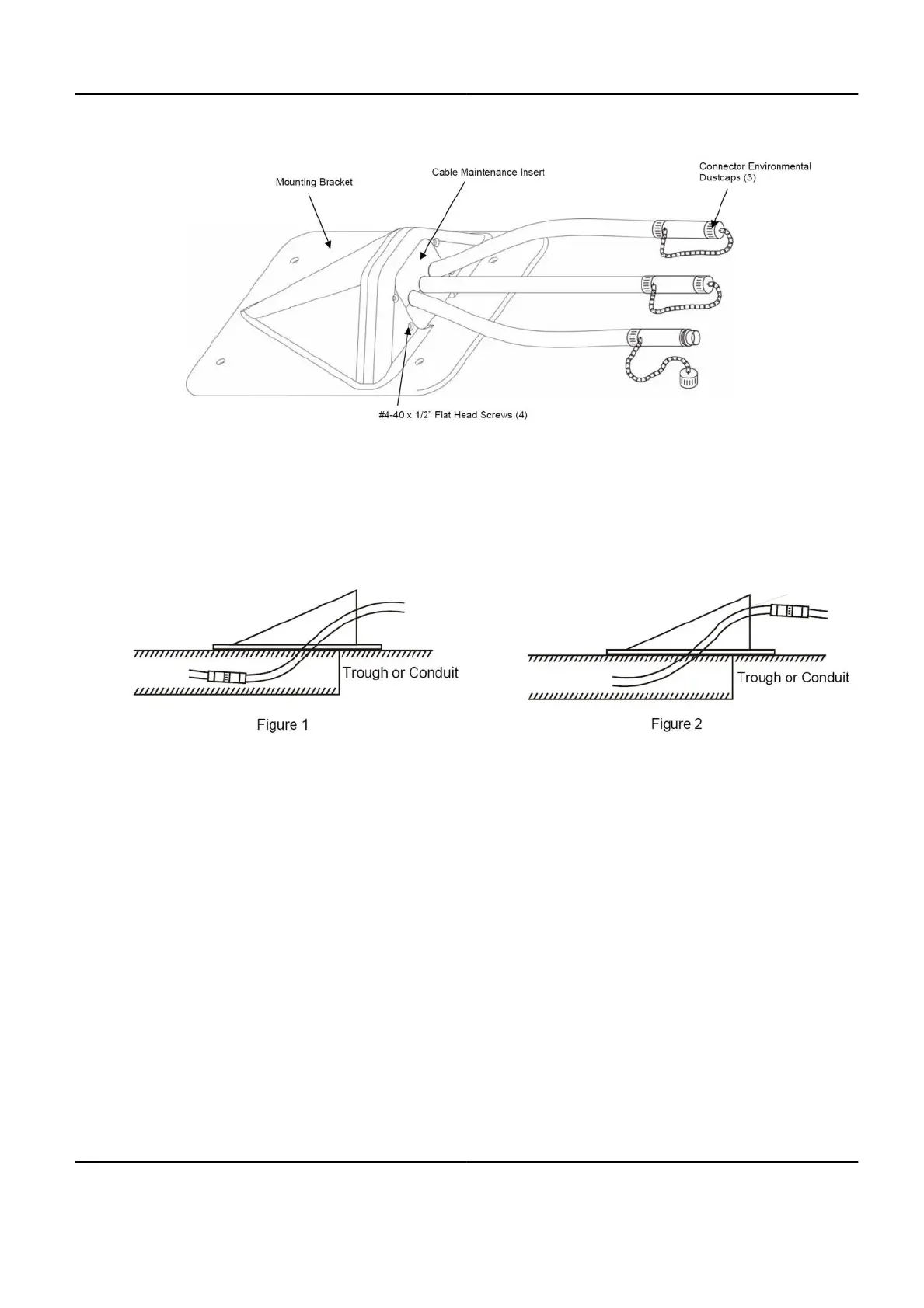

Illustration 5-11: MEDRAD Avanta mounting bracket
Floor mount installation can be accomplished one of two ways:
•
Connectors mounted in trough under mounting bracket (Figure 1)
•
Connectors mounted above mounting bracket (Figure 2)
Illustration 5-12: MEDRAD Avanta floor mounting methods
For further MEDRAD Avanta floor mounting, see the Installation guide MEDRAD Avanta Floor
Mounting Bracket.
Optima IGS 320, Optima IGS 330 Pre-Installation Manual
Direction 5537562-1-1EN, Revision 3
Chapter 5 Electrical Requirements 187
