NOTE: Required floor space depends on ambient room temperatures. When in doubt, allow
for maximum floor space.

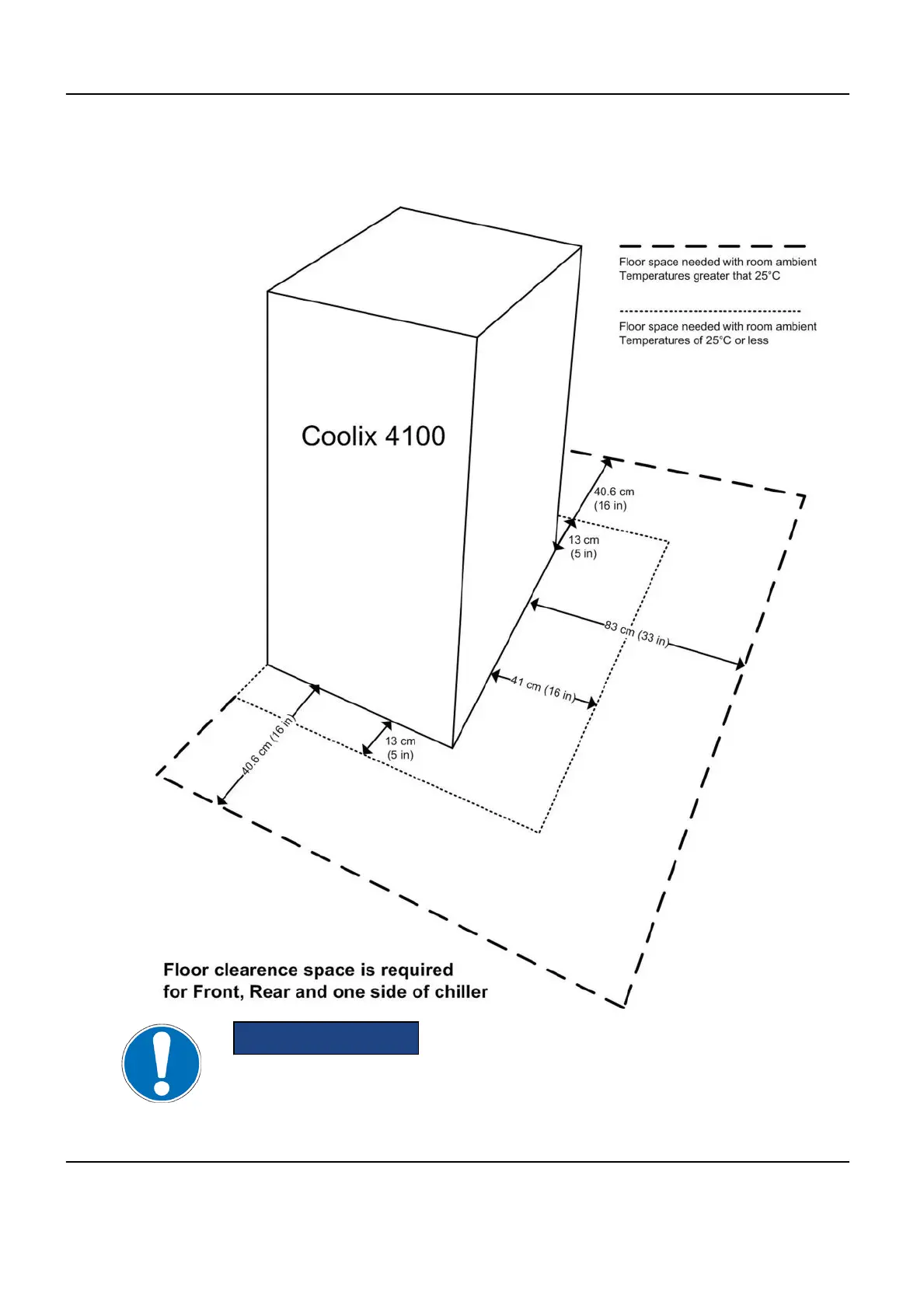

Illustration 2-27: Floor Space Diagram for X-Ray Tube Chiller 4100
NOTICE
The chiller cannot be located more than 3 m (10 ft) below the detector
Optima IGS 320, Optima IGS 330 Pre-Installation Manual
Direction 5537562-1-1EN, Revision 3
