PROTEUS XR/a
GE MEDICAL SYSTEMS Operator Manual
REV 11 DIRECTION 2259724-100
7-13
7-6-6 Rotating the Collimator ± 90° around the Vertical Axis
• Move locking lever (1) on multileaf collimator toward front panel, i.e. toward
the operator

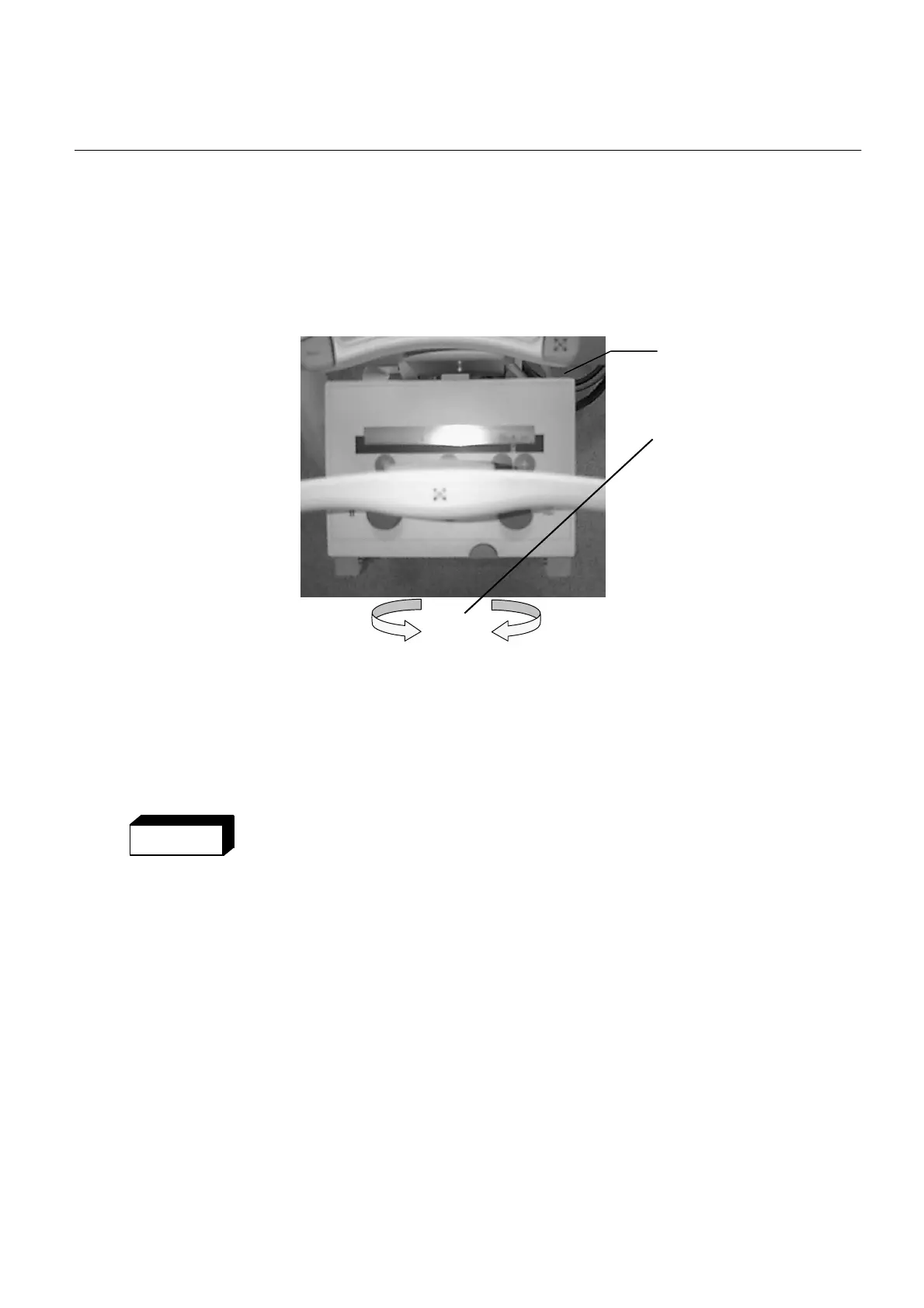

ILLUSTRATION 7-13
AUTOMATIC COLLIMATOR ROTATION
Multileaf collimator in 0° lock-in position
− The 0° lock-in position of the multileaf collimator is released by actuating the
locking lever.
• Grasp multileaf collimator with both hands and rotate it by the desired angle
to the required direction.
Rotating the Collimator to the 0° Lock-in Position
• Grasp collimator with both hands and turn it to the 0° lock-in position
ALWAYS GRASP MULTILEAF COLLIMATOR IN SUCH A WAY THAT
NEITHER HAND CAN BE PINCHED OR CRUSHED BETWEEN THE
HANDLES AND THE COLLIMATOR.
Locking lever (1)
Max rotation of multileaf
collimator up to CW or
CCW ± 90°
WARNING
FOR TRAINING PURPOSES ONLY!
NOTE: Once downloaded, this document is UNCONTROLLED, and therefore may not be the latest revision. Always confirm revision status against a validated source (ie CDL).
