CHAPTER 8 PROTEUS XR/A WALL STAND COMPONENTS
8-1 Introduction
The wall stand (GPCP No.: 2260354) is defined as a Vertical Bucky/Stationary
grid cabinet stand suitable for providing common off--table radiographic
examinations. See Illustration 8-1.
The wall stand enables radiographic operation to be performed from different
vertical positions within the range of the cassette movement.
- The height of vertical column is 2150mm.
- Bucky/Stationary grid cabinet travel distance is from 460-1710mm.

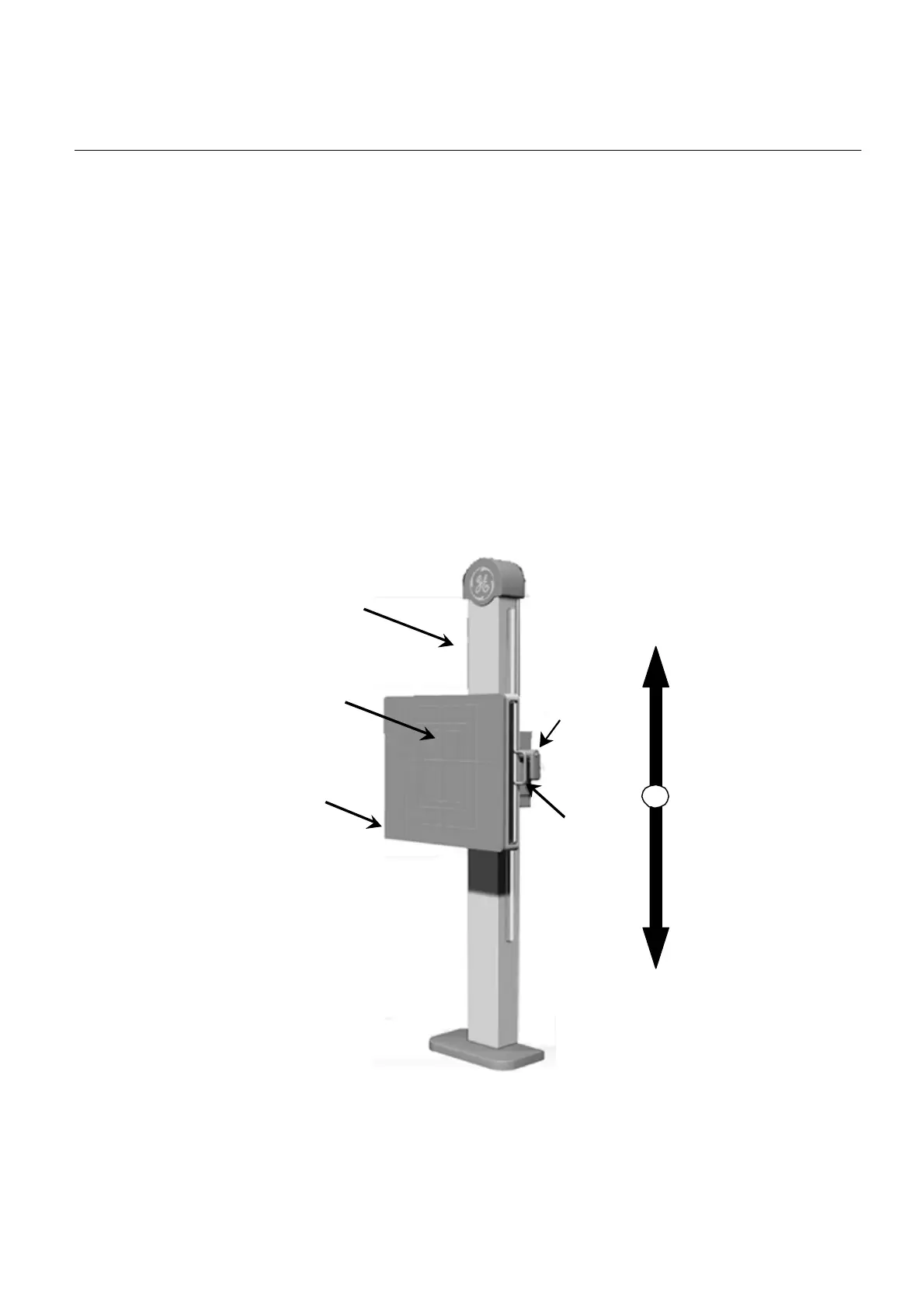

ILLUSTRATION 8-1
WALL STAND
1
2
3
4
5
6
FOR TRAINING PURPOSES ONLY!
NOTE: Once downloaded, this document is UNCONTROLLED, and therefore may not be the latest revision. Always confirm revision status against a validated source (ie CDL).
