A.2.3 V7768 PCI-X PMC Site Connector and Pinout (J13)

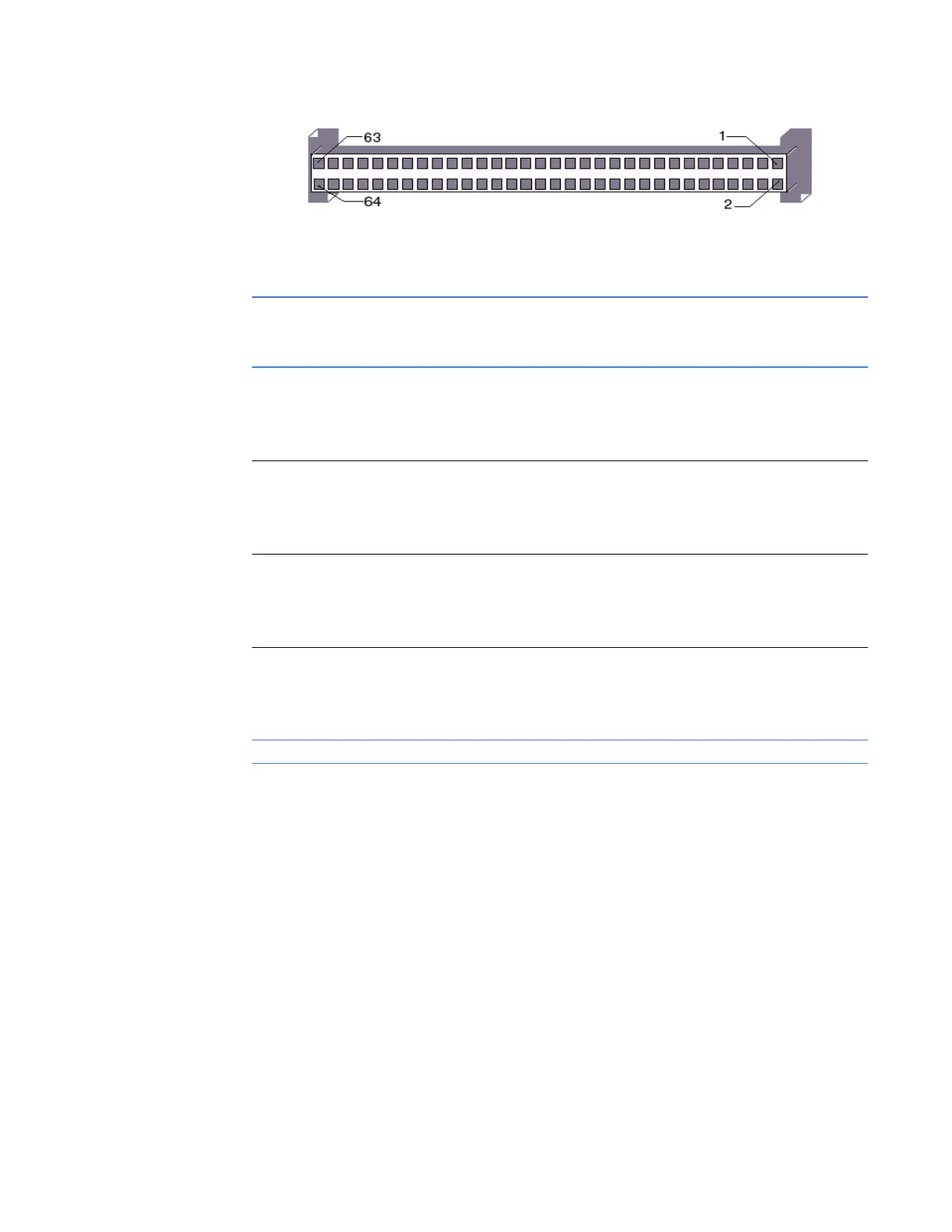

Figure A-6 V7768 PCI-X PMC Site Connector (J13)
Table A-5 V7768 PCI-X PMC Site Connector Pinout (J13)
PMC Connector (J13) PMC Connector (J13)
Left Side Right Side Left Side Right Side
Pin Name Pin Name Pin Name Pin Name
1N/C 2GND 33GND 34AD[48]
3 GND 4 CBE[7]# 35 AD[47] 36 AD[46]
5 CBE[6]# 6 CBE[5]# 37 AD[45] 38 GND
7CBE[4]# 8GND 39VCC_3.3 40AD[44]
9 VCC_3.3 10PAR64 41AD[43] 42AD[42]
11 AD[63] 12 AD[62] 43 AD[41] 44 GND
13 AD[61] 14 GND 45 GND 46 AD[40]
15 GND 16 AD[60] 47 AD[39] 48 AD[38]
17 AD[59] 18 AD[58] 49 AD[37] 50 GND
19 AD[57] 20 GND 51 GND 52 AD[36]
21 VCC_3.3 22 AD[56] 53 AD[35] 54 AD[34]
23 AD[55] 24 AD[54] 55 AD[33] 56 GND
25 AD[53] 26 GND 57 VCC_3.3 58 AD[32]
27 GND 28 AD[52] 59 N/C 60 N/C
29 AD[51] 30 AD[50] 61 N/C 62 GND
31 AD[49] 32 GND 63 GND 64 N/C
N/C indicates No Connection
