GE V7768 - Figure A-21 Mouse;Keyboard Splitter Cable; Table A-20 Mouse;Keyboard Splitter Cable Pinout

Appendix A: Connector Pinouts 79

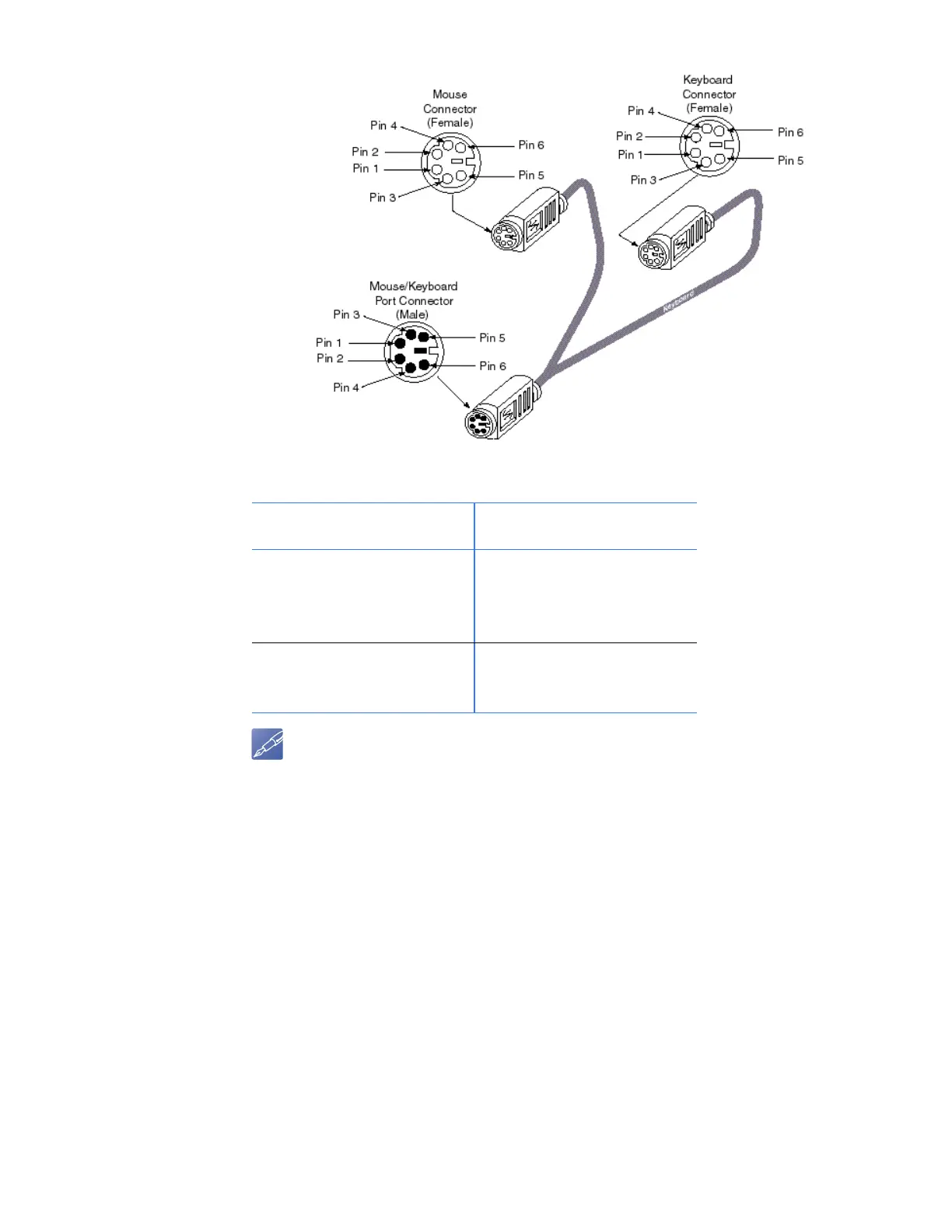

Figure A-21 Mouse/Keyboard Splitter Cable
NOTE
The mouse/keyboard pinout shown in Table A-20 has pins 2 (Keyboard Data) and 6 (Keyboard
Clock) signals on the Mouse cable. This may not work with some keyboard and mouse devices. We
recommend that you contact Customer Service for more information.
Table A-20 Mouse/Keyboard Splitter Cable Pinout
Keyboard Mouse
Pin Direction Function Pin Direction Function
1 In/Out Keyboard Data 1 In/Out Mouse Data
2 Unused 2 Unused
3 Ground 3 Ground
4+5 V4+5 V
5 Out Keyboard Clock 5 Out Mouse Clock
6 Unused 6 Unused
Shield Chassis Ground Shield Chassis Ground
