Appendix A: Connector Pinouts 73
A.5.4 Mezzanine PCI-X PMC Site 2 Connector and Pinout (J24)

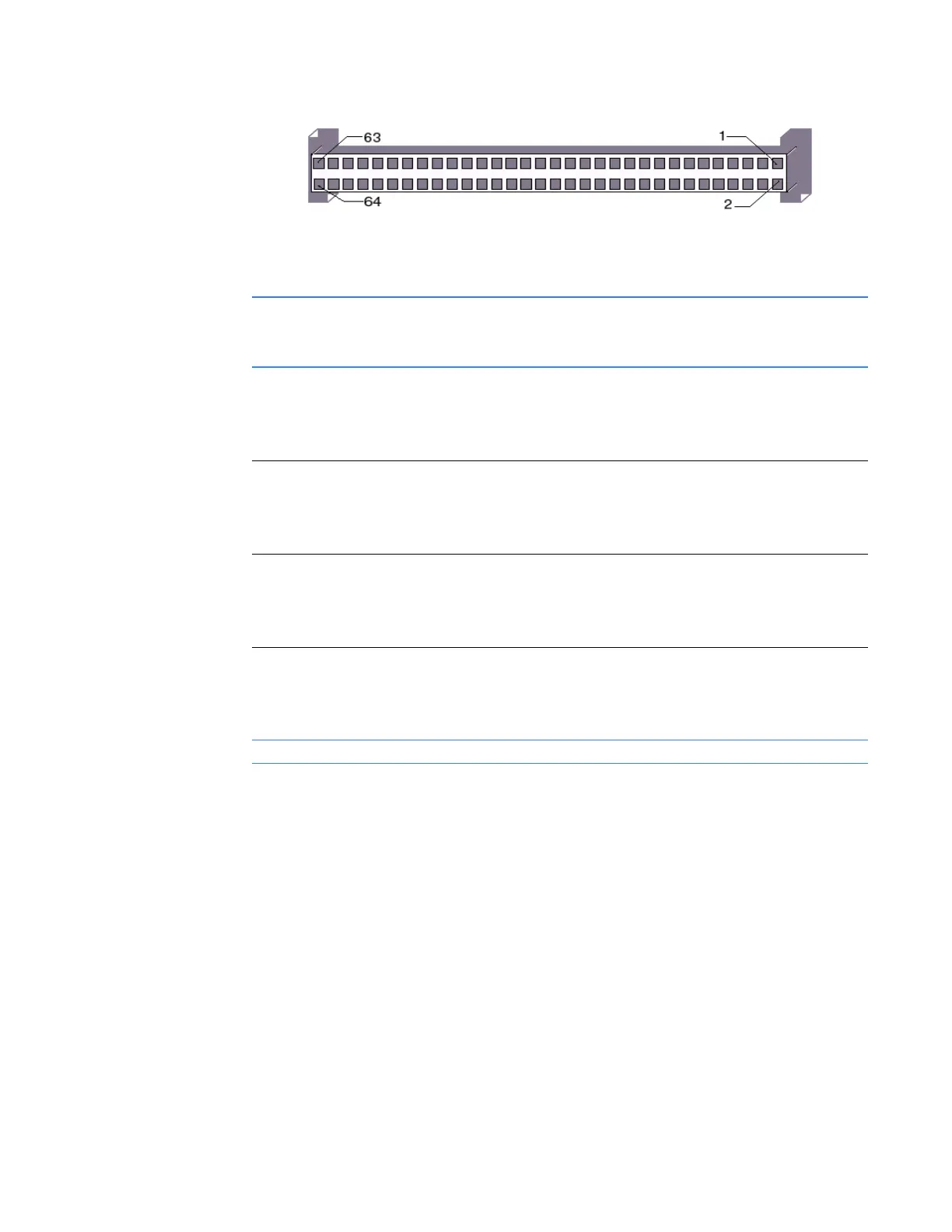

Figure A-15 Mezzanine PCI-X PMC Site Connector (J24)
Table A-14 Mezzanine PCI-X PMC Site Connector Pinout (J24)
PMC Connector (J24) PMC Connector (J24)
Left Side Right Side Left Side Right Side
Pin Name Pin Name Pin Name Pin Name
1 CONN[1] 2 CONN[2] 33 CONN[33] 34 CONN[34]
3 CONN[3] 4 CONN[4] 35 CONN[35] 36 CONN[36]
5 CONN[5] 6 CONN[6] 37 CONN[37] 38 CONN[38]
7 CONN[7] 8 CONN[8] 39 CONN[39] 40 CONN[40]
9 CONN[9] 10 CONN[10] 41 CONN[41] 42 CONN[42]
11 CONN[11] 12 CONN[12] 43 CONN[43] 44 CONN[44]
13 CONN[13] 14 CONN[14] 45 CONN[45] 46 CONN[46]
15 CONN[15] 16 CONN[16] 47 N/C 48 N/C
17 CONN[17] 18 CONN[18] 49 N/C 50 N/C
19 CONN[19] 20 CONN[20] 51 N/C 52 N/C
21 CONN[21] 22 CONN[22] 53 N/C 54 N/C
23 CONN[23] 24 CONN[24] 55 N/C 56 N/C
25 CONN[25] 26 CONN[26] 57 N/C 58 N/C
27 CONN[27] 28 CONN[28] 59 N/C 60 N/C
29 CONN[29] 30 CONN[30] 61 N/C 62 N/C
31 CONN[31] 32 CONN[32] 63 N/C 64 N/C
N/C indicates No Connection
