68 V7768/V7769 Hardware Reference Manual
.
A.4.2 Mezzanine PCI-X PMC Site 1 Connector and Pinout (J12)

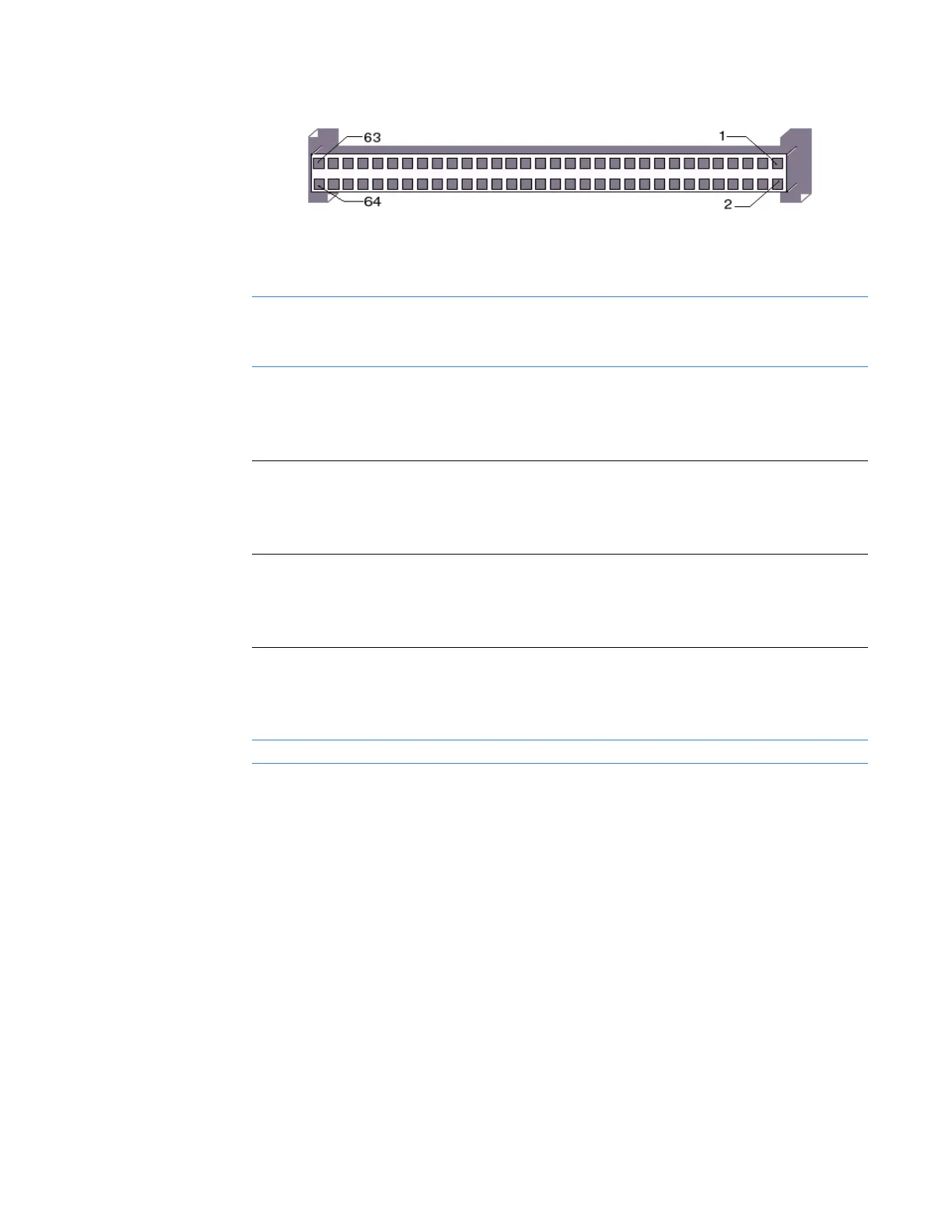

Figure A-10 Mezzanine PCI-X PMC Site Connector (J12)
Table A-9 Mezzanine PCI-X PMC Site Connector Pinout (J12)
PMC Connector (J12) PMC Connector (J12)
Left Side Right Side Left Side Right Side
Pin Name Pin Name Pin Name Pin Name
1 VCC_12.0 2 JTAG_TRST# 33 GND 34 N/C
3 JTAG_TMS_2 4 JTAG_TDO 35 TRDY# 36 VCC_3.3
5 JTAG_TDI 6 GND 37 GND 38 STOP#
7GND 8N/C 39PERR# 40GND
9 N/C 10 N/C 41 VCC_3.3 42 SERR#
11 BMODE2# 12 VCC_3.3 43 CBE[1]# 44 GND
13 PCIB_RESET# 14 BMODE3# 45 AD[14] 46 AD[13]
15 VCC_3.3 16 BMODE4# 47 M66EN 48 AD[10]
17 N/C 18 GND 49 AD[8] 50 VCC_3.3
19 AD[30] 20 AD[29] 51 AD[7] 52 N/C
21GND 22AD[26] 53VCC_3.3 54N/C
23 AD[24] 24 VCC_3.3 55 N/C 56 GND
25 PMC_IDSEL 26 AD[23] 57 N/C 58 N/C
27 VCC_3.3 28 AD[20] 59 GND 60 N/C
29 AD[18] 30 GND 61 ACK64# 62 VCC_3.3
31 AD16] 32 CBE[2]# 63 GND 64 N/C
N/C indicates No Connection
