A.5 V7769 Mezzanine PCI-X PMC Site 2 Connectors
A.5.1 Mezzanine PCI-X PMC Site 2 Connector and Pinout (J21)
The PMC carries the same signals as the PCI standard; however, the PMC
standard uses a completely different form factor. Tables A-11 through A-14 show
the pinouts for the PMC site connectors.

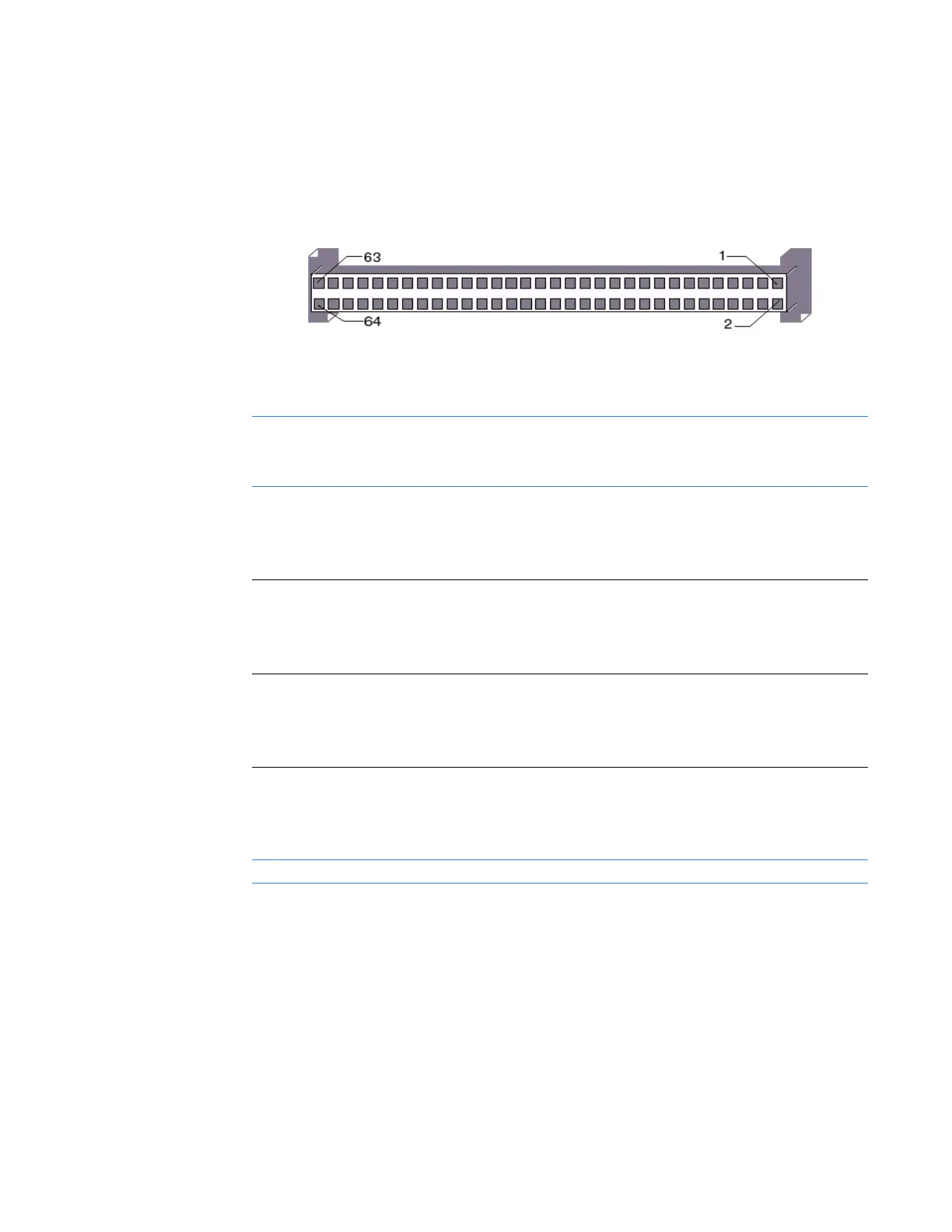

Figure A-12 Mezzanine PCI-X PMC Site Connector (J21)
Table A-11 Mezzanine PMC Site Connector Pinout (J21)
PMC Connector (J21) PMC Connector (J21)
Left Side Right Side Left Side Right Side
Pin Name Pin Name Pin Name Pin Name
1 JTAG_TCK_22 VCC_-12 33FRAME# 34GND
3GND 4INTA# 35GND 36RDY#
5INTB# 6INTC# 37DEVSEL# 38VCC_5.0
7BMODE1#8VCC_5.0 39PCIXCAP 40LOCK#
9 INTD# 10 N/C 41 SDONE# 42 PMC_SB0#
11GND 12N/C 43PAR 44GND
13 CLK 14 GND 45 VCC_3.3 46 AD[15]
15 GND 16 GNT0# 47 AD[12] 48 AD[11]
17REQ0# 18VCC_5.0 49AD[9] 50VCC_5.0
19 VCC_3.3 20 AD[31] 51 GND 52 CBE[0]#
21 AD[28] 22 AD[27] 53 AD[6] 54 AD[5]
23 AD[25] 24 GND 55 AD[4] 56 GND
25 GND 26 CBE[3]# 57 VCC_3.3 58 AD[3]
27 AD[22] 28 AD[21] 59 AD[2] 60 AD[1]
29 AD[19] 30 VCC_5.0 61 AD[0] 62 VCC_5.0
31 VCC_3.3 32 AD[17] 63 GND 64 REQ64#
N/C indicates No Connection
