VersaMax provides automatic addressing that can eliminate traditional configuration and
the need for hand-held devices. Multiple field wiring termination options provide support
for two, three, and four-wire devices.
For faster equipment repair and shorter Mean-Time-To-Repair, the hot insertion feature
enables addition and replacement of I/O modules while a machine or process is running
and without affecting field wiring.
VersaMax I/O may be remotely located. Remote I/O interfaces for Genius, DeviceNet,
Profibus, and Ethernet are available.
1.2 CPU Modules for VersaMax PLCs

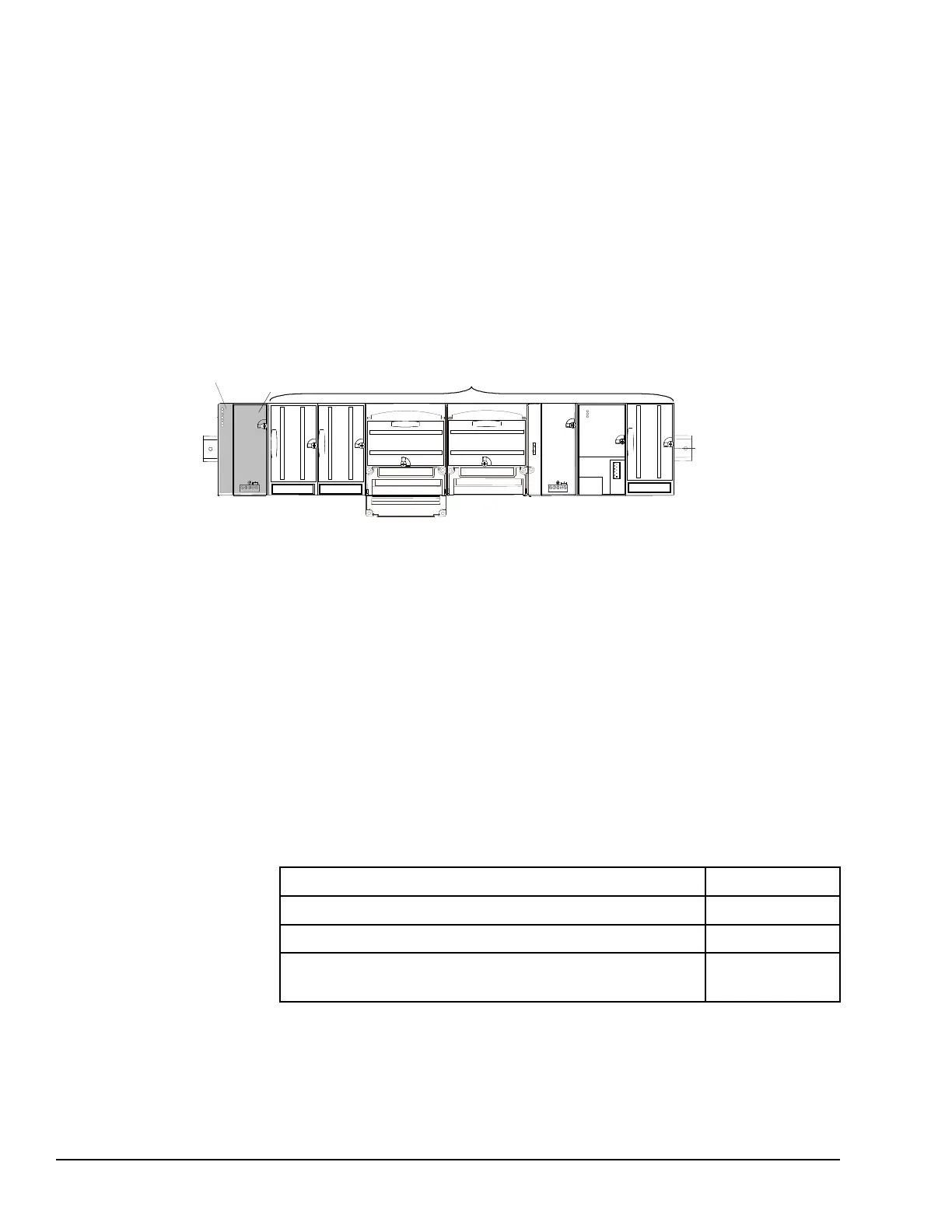

A VersaMax PLC consists of a group of VersaMax modules with a VersaMax CPU and
attached power supply in the first position.
VersaMax PLC CPU
power supply
VersaMax Modules
All VersaMax CPUs provide powerful PLC functionality. They are designed to serve as
the system controller for up to 64 modules with up to 2048 I/O points. Two serial ports
provide RS-232 and RS-485 interfaces for SNP slave and RTU slave communications.
CPU model IC200CPUE05 provides a built-in Ethernet port.
1.2.1 Basic CPU Features
• Programming in Ladder Diagram, Sequential Function Chart, and Instruction List
• Floating point (real) data functions
• Non-volatile flash memory for program storage
• Run/Stop switch
• Embedded RS-232 and RS-485 communications
• Compatible with EZ Program Store device
1.2.2 Available VersaMax CPUs
CPU with Two Serial Ports, 34kB of Configurable Memory IC200CPU001
CPU with Two Serial Ports, 42kB of Configurable Memory IC200CPU002
CPU with Two Serial Ports, 128kB of Configurable Memory IC200CPU005
CPU with Two Serial Ports and Embedded Ethernet Interface,
128kB of Configurable Memory
IC200CPUE05
18 GFK-1503E VersaMax PLC User Manual
