Using Vscan Extend
5-18 Vscan Extend – User Manual
5721203-100
Rev. D
Black and white imaging (continued)
Black and white imaging adjustments
The following adjustments can be done to further improve the
image quality:
1. Gain - Black and white gain increases or decreases the
amount of echo information displayed in an image. It may
have the effect of brightening or darkening the image if
sufficient echo information is generated.
• Press the Gain icon.
The gain slider disappears after a few seconds. Press
Gain again to activate the slider.
• Use the gain slider to increase or decrease gain.
• Press the Gain icon again to hide the control.

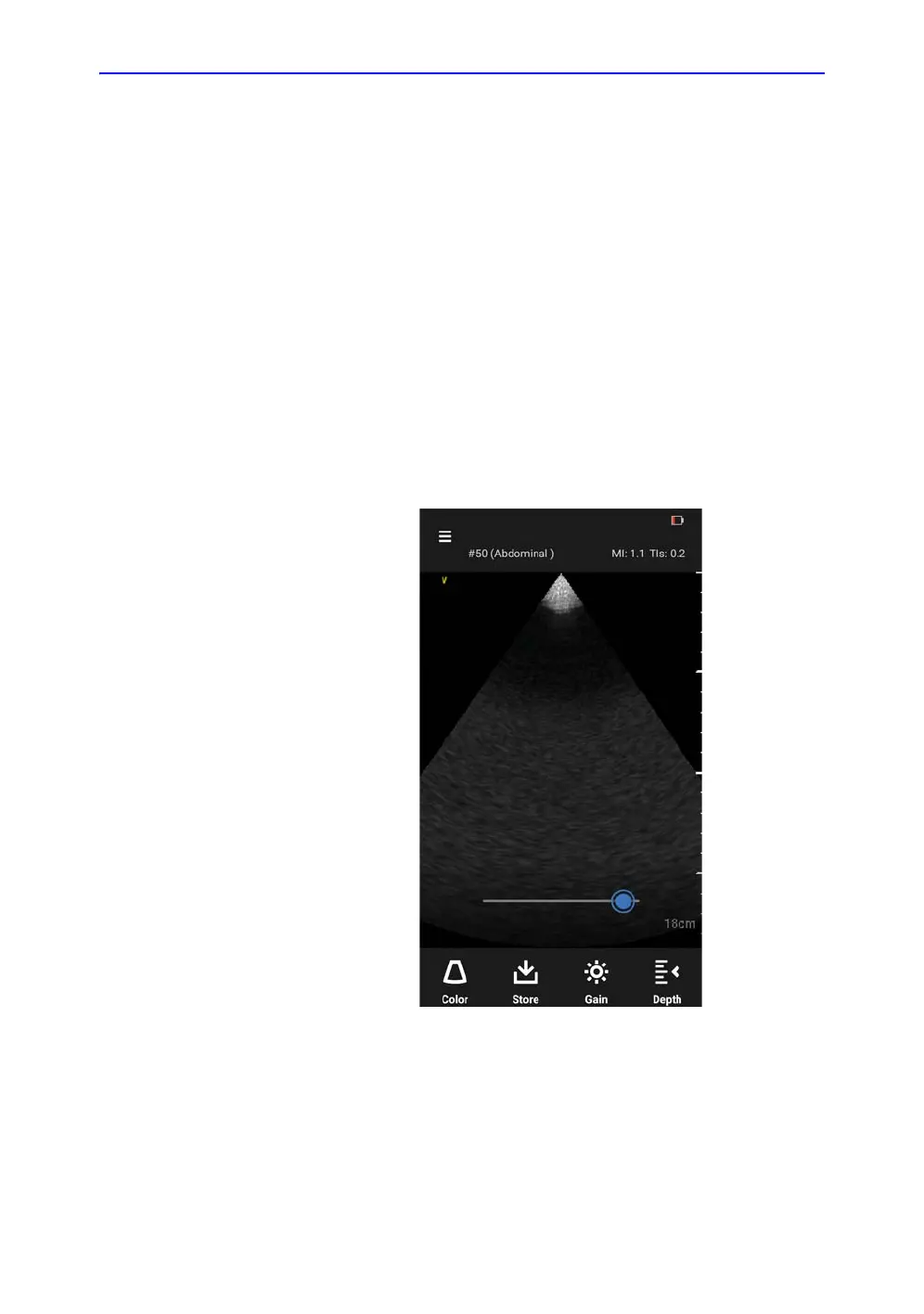

Figure 5-15. Gain
