Acoustic Output Reporting Tables

Vscan Extend – User Manual 7-11

5721203-100 Rev. D

Sector probe

Phased array transducer G3S

Operating Mode: black/white and color

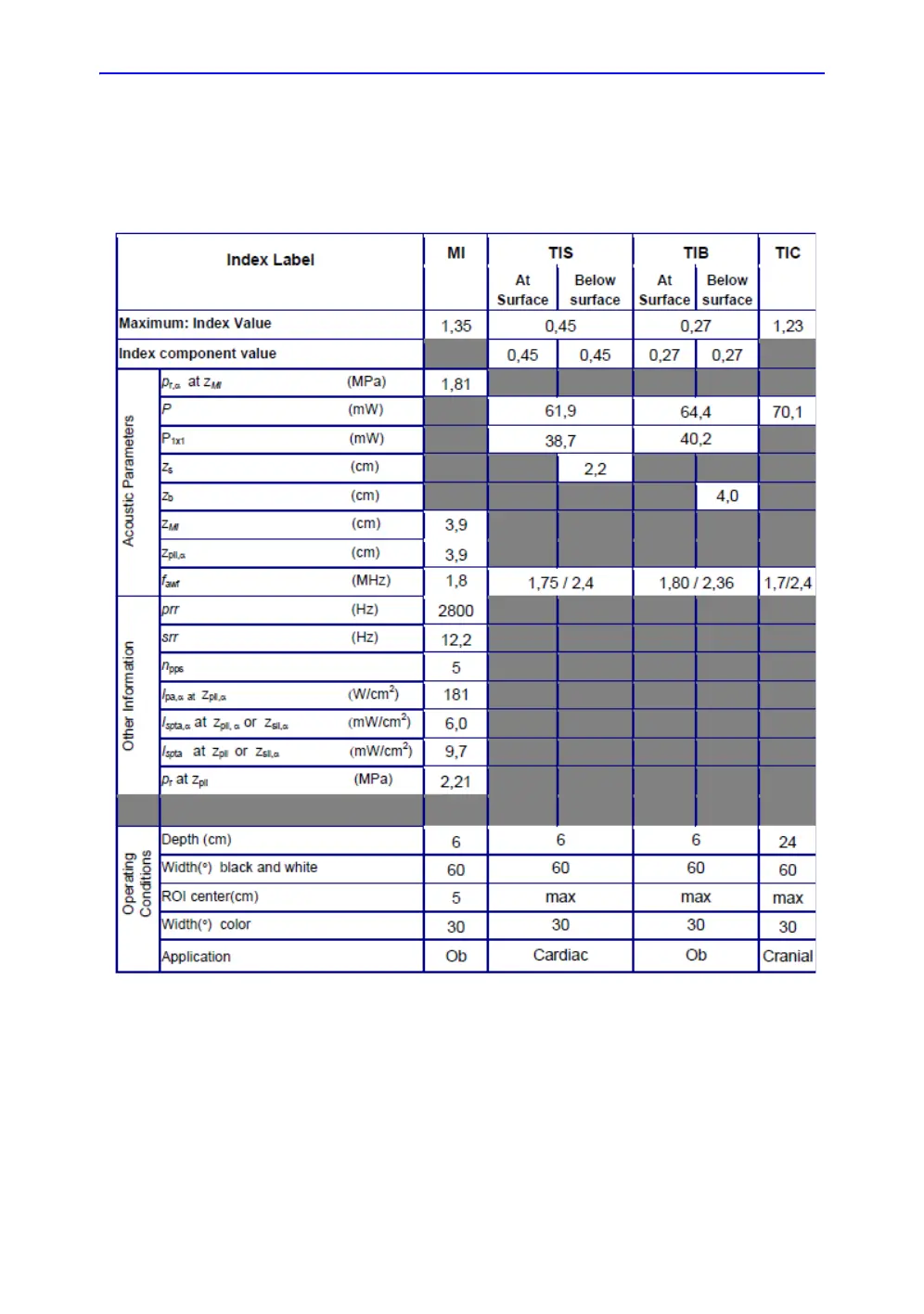

Figure 7-6. Phased array transduce - black/white and color
