System description
Vscan Extend – User Manual 3-5
5721203-100 Rev. D
Vscan Extend configured with a Dual probe holding both a phased array
and linear array transducer for deep and shallow scanning

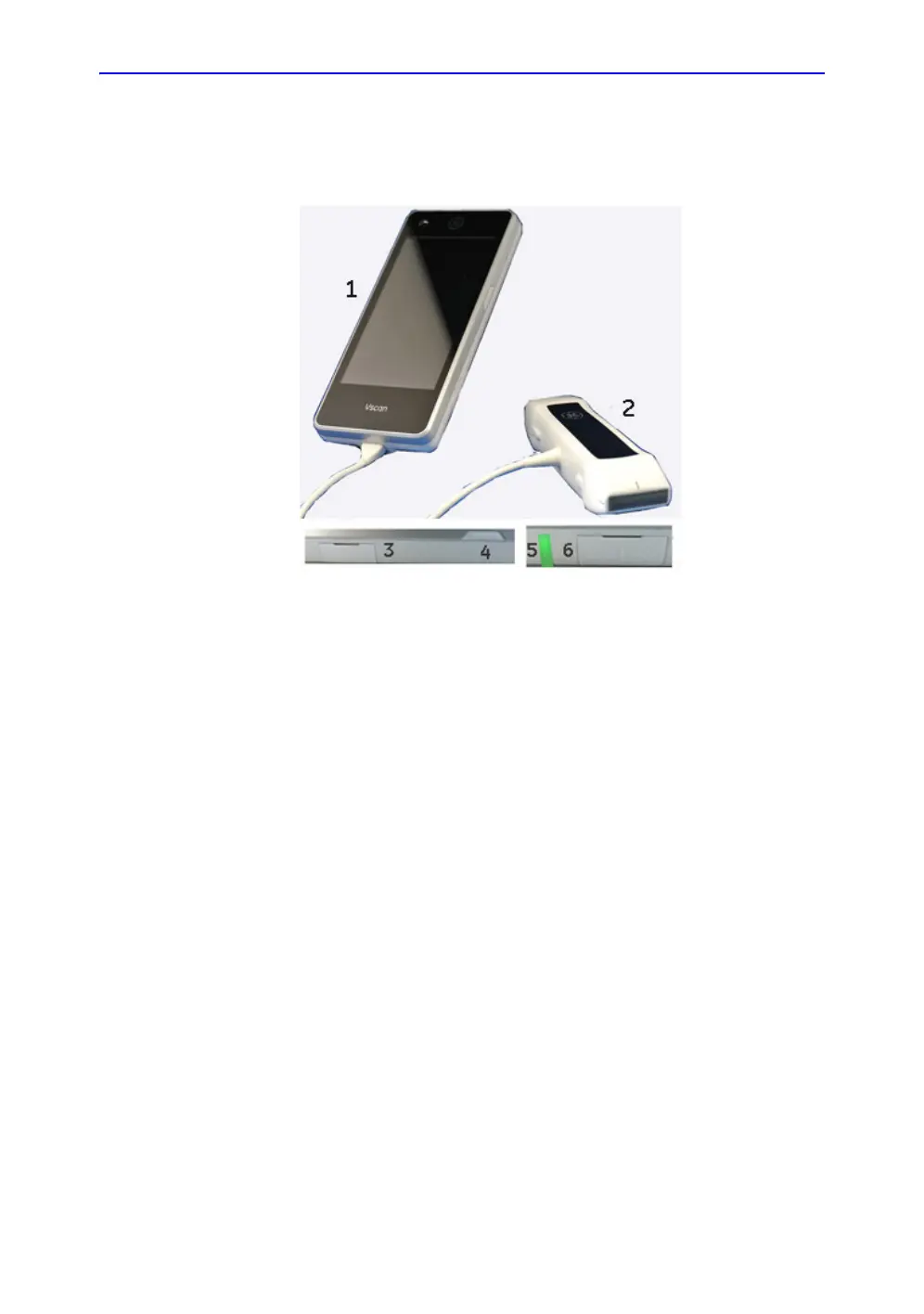

Figure 3-3. Vscan Extend with Dual probe
NOTE: Green LED indicates Vscan Extend is fully charged and an
amber LED indicates it is charging.
1. Display
2. Dual probe
3. Serial port (For Service ONLY)
4. Power button
5. LED indicates charging status
6. USB port and Power connector
