Preparing Vscan Extend for Use
3-18 Vscan Extend – User Manual
5721203-100
Rev. D
Charging the battery
1. Insert the battery into the device.
Figure 3-14. Insert the battery
2. Plug the AC/DC adapter into the electrical outlet.

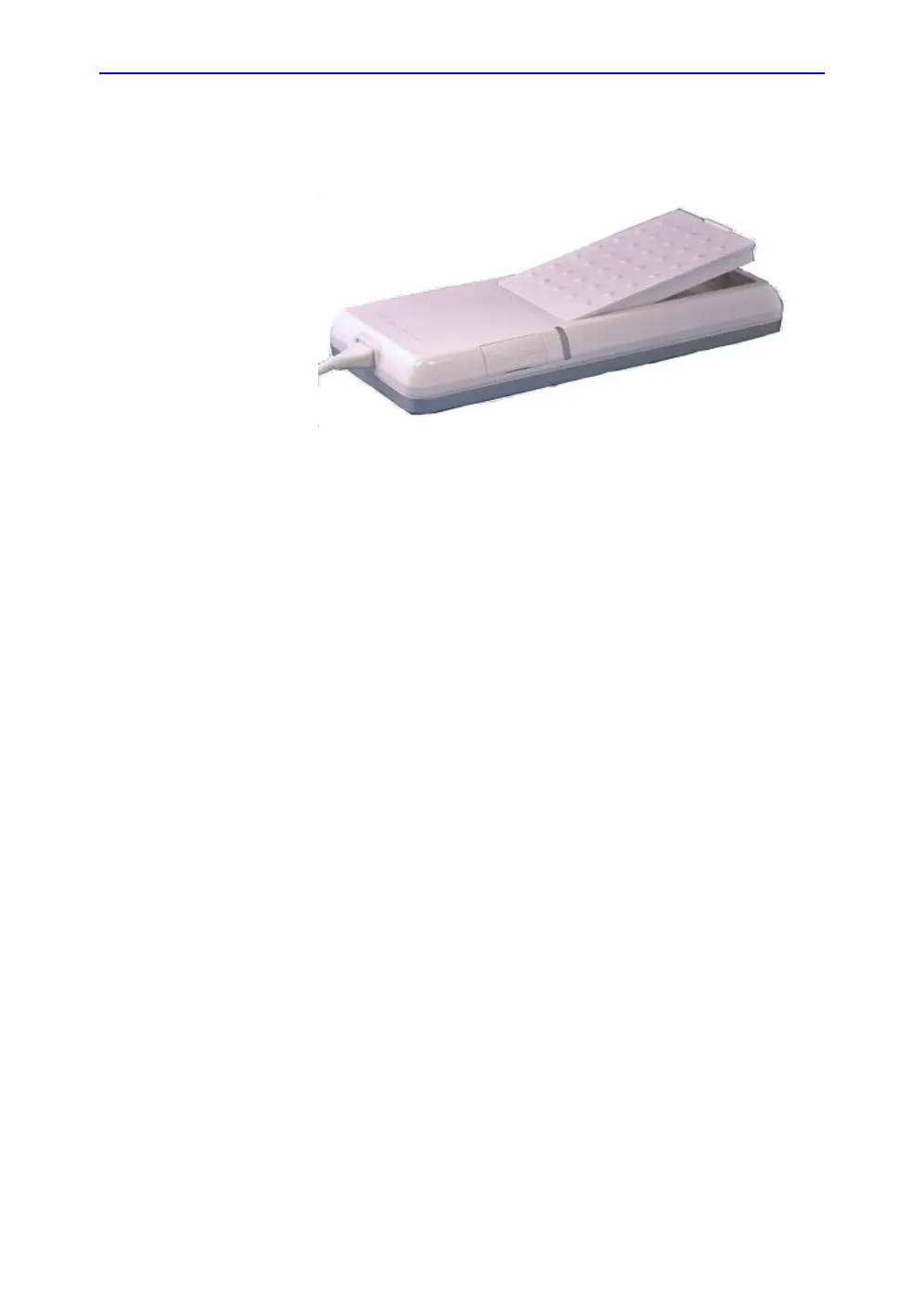

Charging the battery using the optional External battery charger
compartment
1. Place the external battery charger on a flat surface.
2. Insert the battery in the compartment.
NOTE: Do not apply excessive pressure to the battery while
inserting it into the compartment. There is no snap provided
on the external battery charger. The battery fits smoothly
into the compartment without a click.
3. Plug the charger plug into the charger connector on the
external battery charging compartment.
