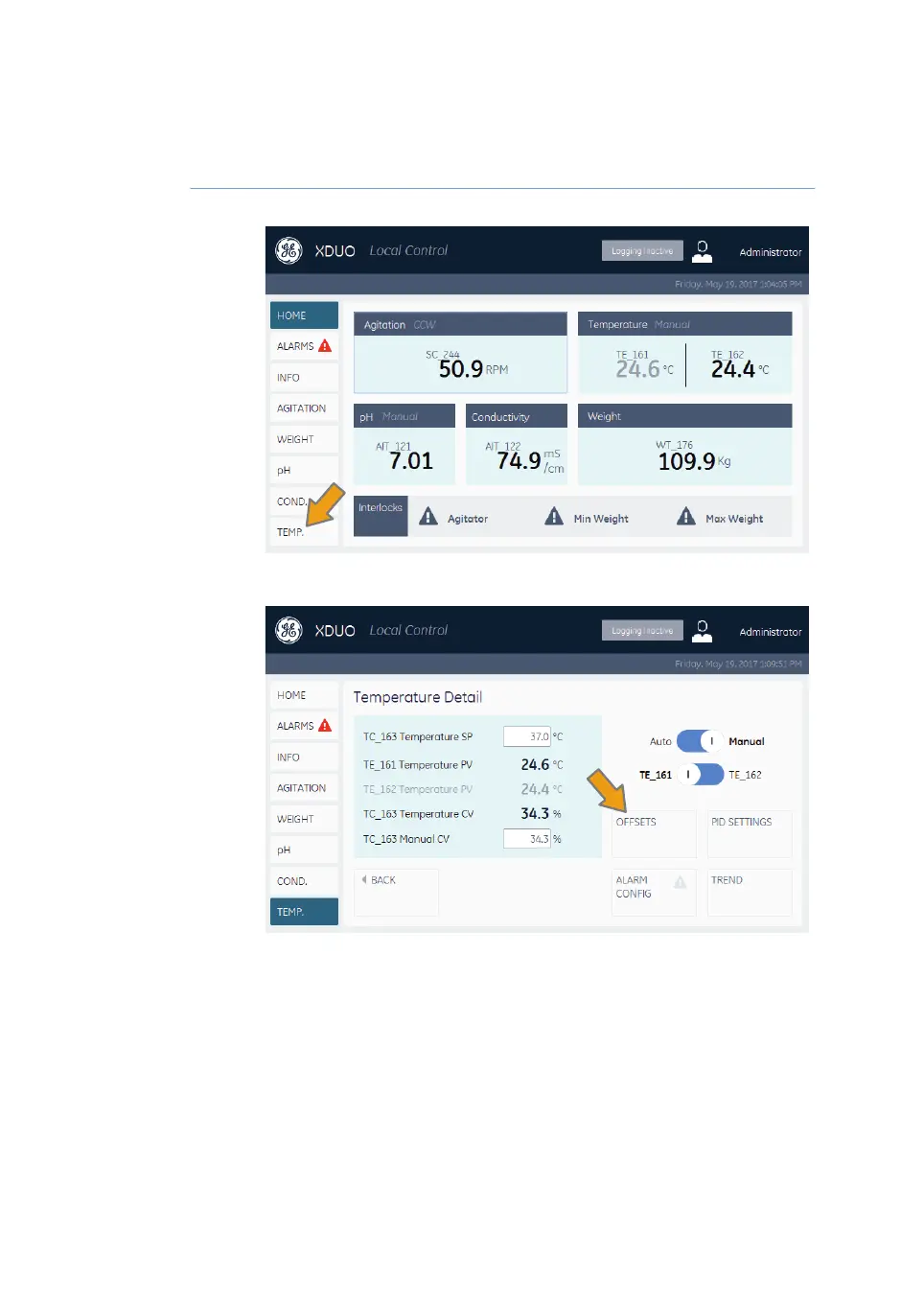

Action
Step
Tap
TEMP
.
on
the
home
screen
to
open
the
Temperature
Detail
screen.
On
the
T
emperature
Detail
screen,
tap
OFFSETS
.
Result:
The
Transmitter
Offsets
screen
opens.
292
Xcellerex
XDM
50-1000,
XDUO
100-1000
mixers
Operating
Instructions
29251615
AD
10
Reference
information
10.8
Temperatur
e
probe
calibration
291
293
Table of Contents
Default Chapter
3
Table of Contents
3
1 Introduction
7
About this Manual
8
Important User Information
9
Regulatory Information
11
EU Directives
12
Eurasian Customs Union
13
Regulations for USA and Canada
14
Korean Regulatory Information
15
Other Regulations and Standards
16
Abbreviations
17
2 Safety Instructions
18
Safety Precautions
19
Labels
28
Emergency Procedures
34
Emergency Procedures, Xcellerex XDM Mixer
35
Emergency Procedures, Xcellerex XDUO Mixer
37
Power or Communication Failure
42
Xcellerex XDUO Mixer Interlocks
43
Security Levels
46
Recycling Information
47
Declaration of Hazardous Substances (Dohs)
49
3 System Description
51
System Overview
52
Xcellerex XDM Mixer System Description
53
System Hardware
54
Illustration of Xcellerex XDM Mixer
55
Xcellerex XDUO Mixer System Description
58
System Hardware
59
Illustration of Xcellerex XDUO Mixer
60
Mixer Vessel Components
63
Mixer Vessel
64
Agitator
66
Load Cells
68
Pumps
70
Safety Hardware
71
Mixer Automation and Control
72
Temperature Control Unit
74
Disposable Components
75
Disposable Bag Assembly
76
Probe Sheath Assembly
82
4 User Interface
84
General Description
85
Adjustment and Control Screens
90
Alarm Screens
93
Alarm Overview Screen
94
Alarm Configuration Screens
95
Detail Screens
98
Overview
99
Agitator Screen
100
Conductivity Screen
102
Ph Screens
103
Temperature Screens
107
Weight Screen
112
Trend Screens
113
5 Installation
116
Safety Precautions
117
Site Requirements
119
Installation of the Mixer
121
Connect Temperature Control Unit
122
6 Preparation
129
Safety Precautions
130
Stabilize the Mixer Vessel
132
Use Jacking Bolts
133
Lock and Unlock Casters
138
Prepare the Disposable Bag
139
Unpack the Disposable Bag Assembly
140
Install the Disposable Bag
147
Prepare and Install the Probes
157
Calibrate the Ph Probe
158
Prepare the Conductivity Probe
163
Autoclave Probe Sheath Assembly
165
Insert Probes into the Disposable Bag
168
Calibrate the Monitors of Xcellerex XDM Mixer
182
Prepare the Pumps
183
7 Operation
187
Safety Precautions
188
Operate Xcellerex XDM Mixer
190
Start up the System
191
Operate the Agitator Motor
192
Monitor Temperature and Weight
196
Monitor Ph and Conductivity
197
Operate Xcellerex XDUO Mixer
198
Start up the System
199
Operate the Agitator Motor
207
Prepare the Pump
211
Control the Ph
215
Control the Temperature
220
Manage Mixer Weight
225
Set Alarm Limits
227
Add Liquid Contents
229
Add Solid Contents
236
Finish a Batch Run
240
Collect the Product
241
Remove the Disposable Bag
242
Shut down the System
247
8 Maintenance
248
Safety Precautions
249
Maintenance Schedules
250
Lock-Out / Tag-Out (LOTO): Turn-Off Procedure
253
Lock-Out / Tag-Out (LOTO): Turn-On Procedure
255
Cleaning
257
Hardware Maintenance
259
Storage, Moving and Reinstallation
263
9 Troubleshooting
264
10 Reference Information
273
10.1 System Specifications
274
10.2 SP, CV and PV Units and Ranges
279
Xcellerex XDM and XDUO Mixers Minimum Working Volumes
280
10.4 Pump Characteristics
281
10.5 Disposable Bag Specifications
282
10.6 Environmental Requirements
283
10.7 Temperature Control Unit
284
TCU Requirements
285
Temperature Control Optimization
287
TCU Coolant Specifications
288
10.8 Temperature Probe Calibration
289
10.9 Ordering Information
294
10. 1 0 Health and Safety Declaration Forms
295
Appendix A Information about the Appendices
297
Appendix B Add and Remove Users
298
Appendix C Download Audit and Data Logs
304
Appendix D Privacy and Security
310
Index
