9.6.9 Checking the function

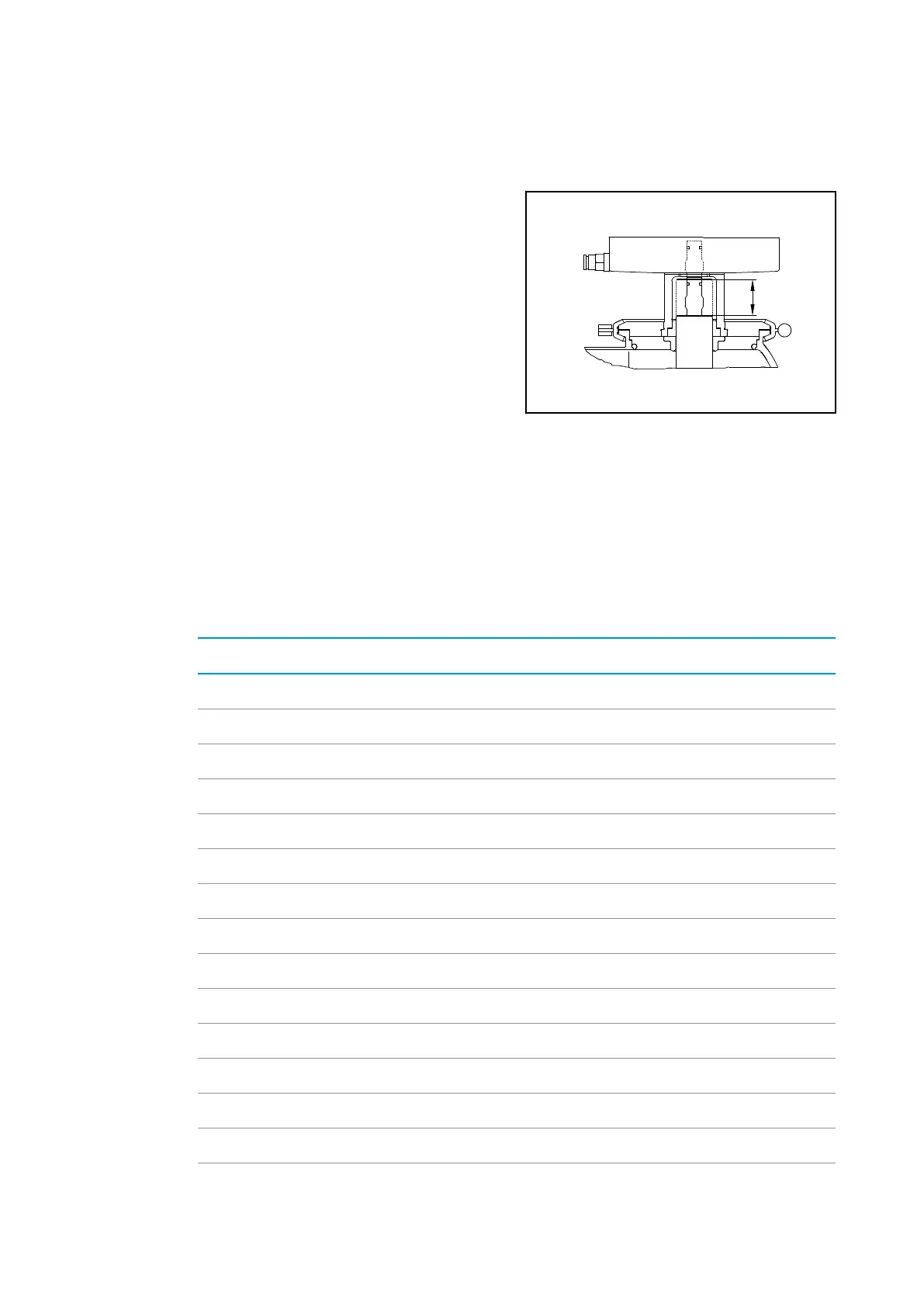

Check valve stroke and adjust feedback
1. Actuate the valve with compressed air.
2. Check the valve stroke (c), also refer
to table
Valve stroke .
c
3.
INFO
Please take
the operating instructions for the respective control top into account
for adjustment of the feedbacks.
If the strokes are correct, the feedback can be adjusted and checked.
Þ
The valve stroke has been tested.
The valve str
okes depending on size
Valve stroke
Valve size Valve stroke [mm]
Metric
25 16
40 19
50 31
65 30
80 30
100 30
Inch OD
1" 12
1.5" 19
2" 31
2.5" 31
3" 29
4" 30
80 / 104 - 9.6 Installing the valve
0000000881 - 001 - EN-GB
