9.5.3 Remove connection 0
Tools
●
Hex key, a/f 3
●
Jaw wrench a/f13
1. Unscrew the screws (49) of the half-
rings (B12) using a hex key a/f 3 and
remove the half-rings (B12).
2. Release the air connection (117) and
reduction nipple (130) using a jaw
wrench and unscrew.
3. Remove the actuator cover (138) from
the actuator.

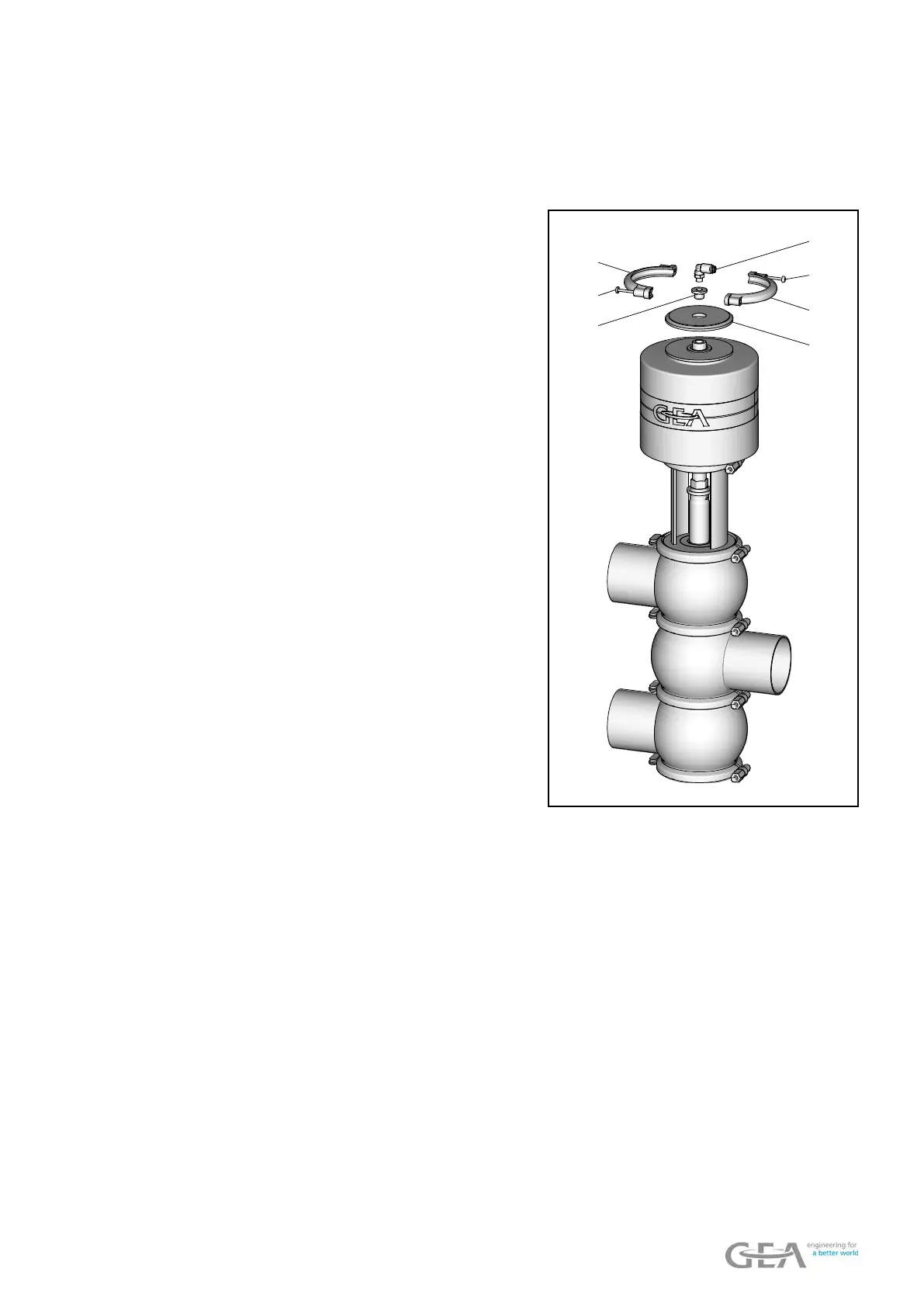

49
117
B12
B12
49
130
138
Þ
Connection 0 has been removed.
9.5 Removing the valve - 59 / 104
