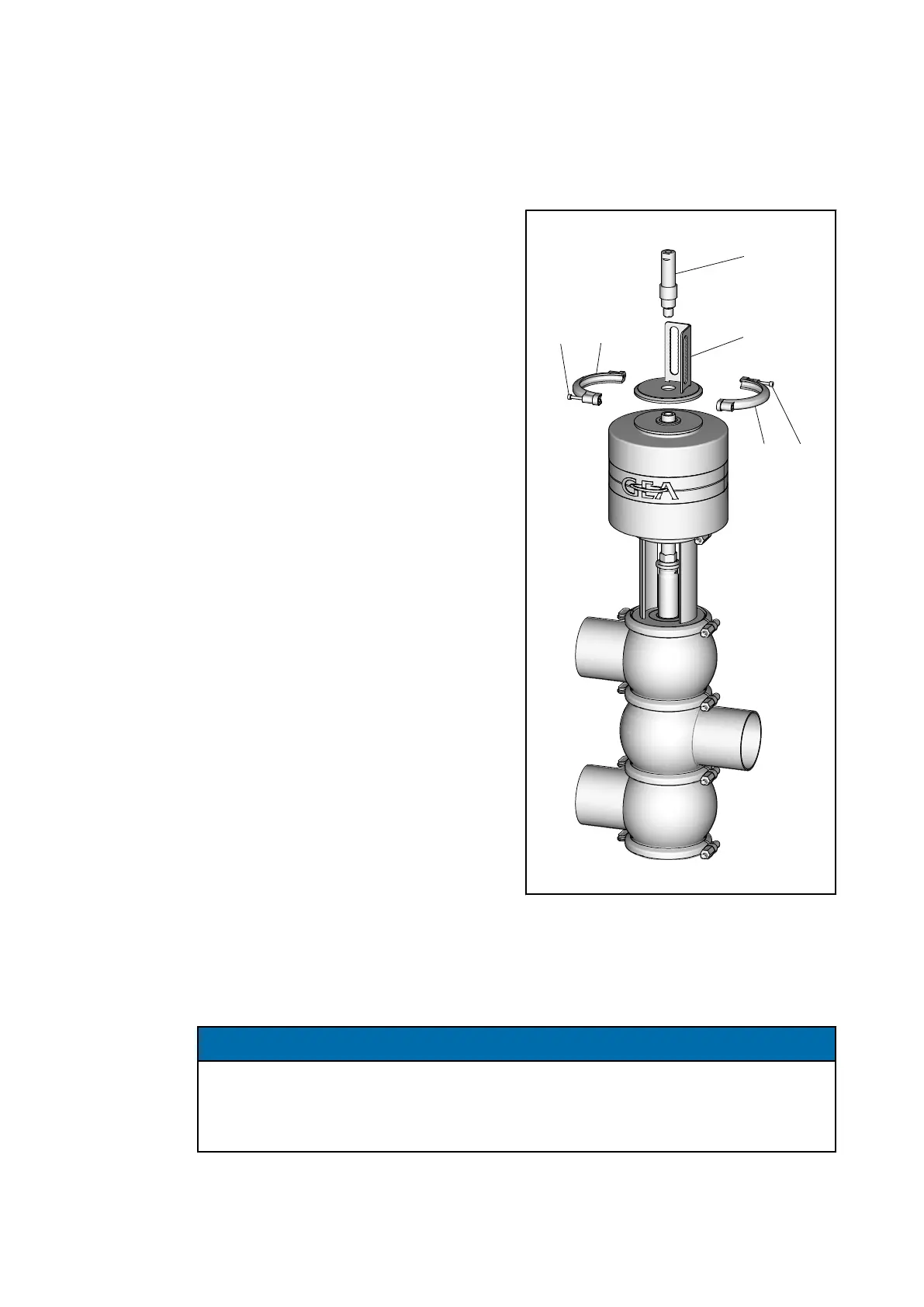

9.5.4 Remove INI holder
Tools
●
Hex key, a/f 3
●
Jaw wrench a/f13
1. Unscrew the screws (49) of the half-
rings (B12) using a hex key a/f 3 and
remove the half-rings (B12).
2. Unscrew and remove the air connec-
tion (246) with a jaw wrench.
3. Remove the mounting for proximity
switch INA (243) from the actuator.
49
243
B12
B12
49
246
Þ
INI holder has been removed.
9.5.5
Disconnecting the valve insert from the housing
ATTENTION
Sensitive valve parts
Damage to the valve parts can lead to a malfunction.
●
Protect the valve parts against impact stress.
60 / 104 - 9.5 Removing the valve
0000000881 - 001 - EN-GB
