• If pump 1 does not
work in either speed,
replace pump 1 fuse.
• If replacing the fuse
is not effective or
if pump 1 works in
only one speed, take
voltage reading on the
corresponding in.link
connector.
• Turn pump 1 to high
speed and take voltage
reading between:
Pump up to 20 A :
240 V: Pin 3 & Pin 1
120 V: Pin 3 & Pin 5
Pump up to 15 A :
240 V: Pin 2 & Pin 1
120 V: Pin 2 & Pin 5
Your reading should be:
240 V for a 240 V pump
120 V for a 120 V pump
• Turn pump 1 to low
speed and take voltage
reading between:
240 V: Pin 6 & Pin 1
120 V: Pin 6 & Pin 5
Your reading should be:
240 V for a 240 V pump
120 V for a 120 V pump
• If voltage is as it should
be, replace pump 1.
• If not, replace spa pack.

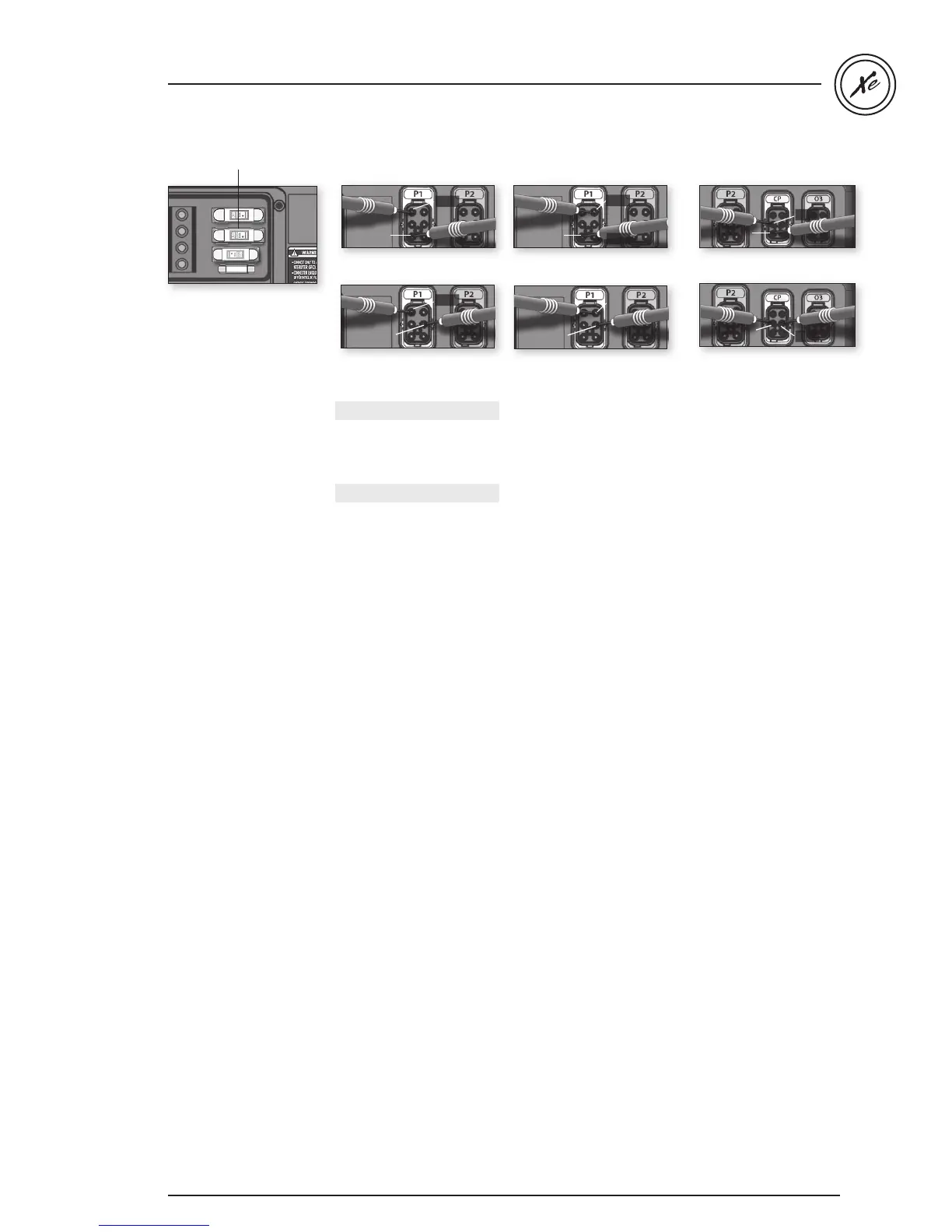

Pump 1 fuse
120 V at P1 connector:
Pin 3 & Pin 5
240 V at P1 connector:
Pin 3 & Pin 1
120 V at P1 connector:
Pin 6 & Pin 5
Pin 3
Pin 1
Pin 5
Pin 3
240 V at P1 connector:
Pin 6 & Pin 1
Pin 1
Pin 6
Pin 5
Pin 6
240 V at CP connector:
Pin 2 & Pin 1
Pin 1
Pin 2
120 V at CP connector:
Pin 2 & Pin 5
Pin 2
Pin 5
