Gecko in.xe User Manual

in.xe TechBook
5
Overview

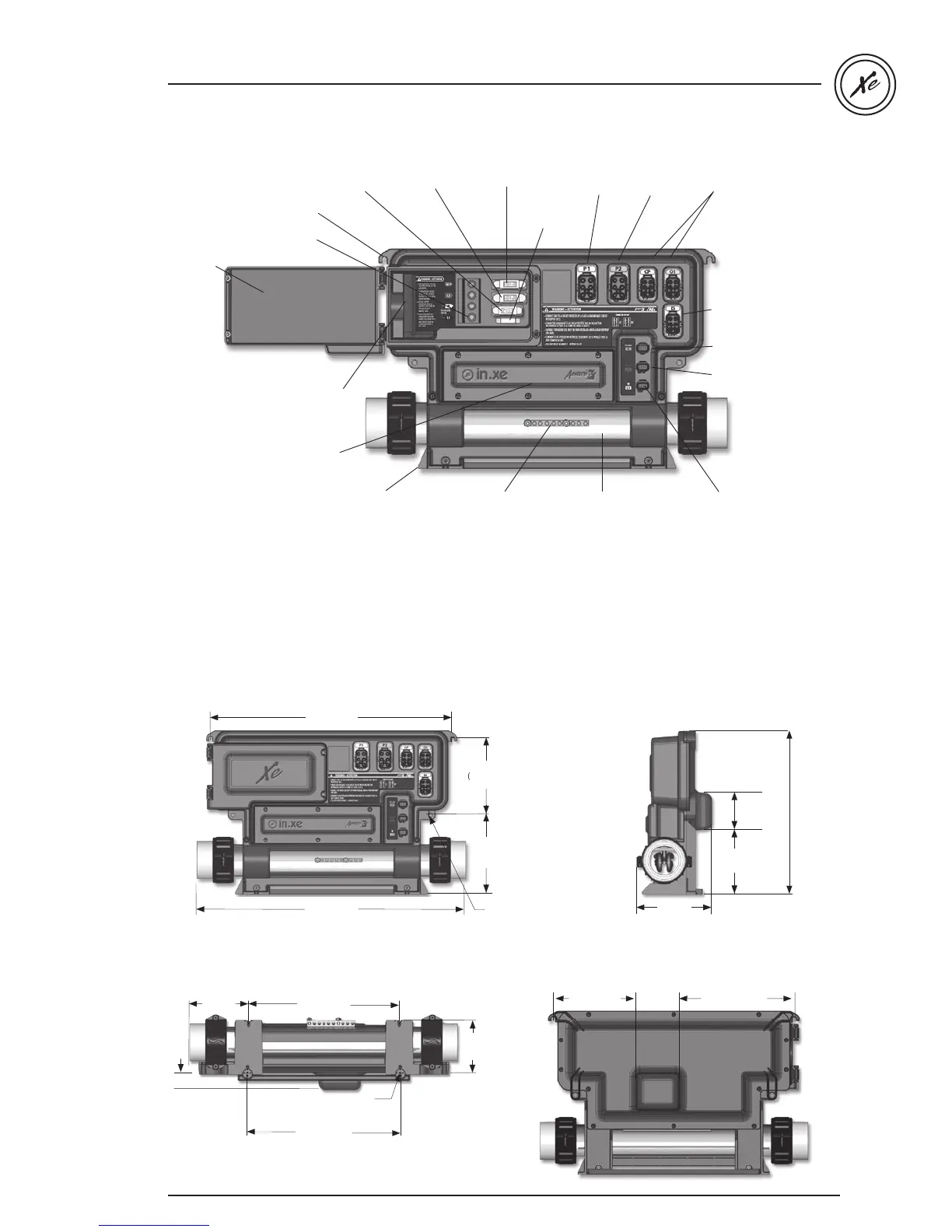

in.xe dimensions:
Transformer fuse
Main power
entry connection
Main power
cable input entry
Mounting feet
Installation brackets
Door to access
power input
connectors
and fuses
Light 12 V AC
connector (1 A max)
2 connectors for
outputs controlled by
independent relays (for
ozonator, CP, light, blower
or any other accessories)
(120/240 V 5 A).
*Only one output is available on
IN.XE-3
Connector for direct
120/240 V 5 A output
(for audio or accessories)
Main keypad connector
Accessory fuse Pump 2 fuse Pump 1 fuse
Communication
connector (in.stik)
Bonding lug
Access to heater
connections
heat.wav heater
Note: No connectors should remain unplugged. Use blank plugs to fill unused connectors.
* Pump 2
connector
Pump 1
connector
* Only available on IN.XE-5
Front view
Side view
10.8"
(275.6 mm)
4.2"
(106.7 mm)
1.2"
(30.5mm)
Ø.25"
(6 mm)
4x
3
.9"
(98.3 mm)
6"
(152 mm)
3"
(76 mm)
8.3"
(210 mm)
5.37"
(136.4 mm)
11.75"
(298.5 mm)
2.75"
(69.9mm)
4.5"
(114.3 mm)
Bottom view
Rear view
17.38"
(441.5 mm)
5.51"
(140 mm)
19.32"
(490.7 mm)
5.69"
(144.5mm)
Ø.25"
(6 mm)
11.0"
(279.4 mm)

Gecko in.xe Specifications

General

Blower Output	1
Ozone Output	1
Light Output	1
Dimensions	Varies by model
Weight	Varies by model
Warranty	Varies by manufacturer
Power Supply	240V
Keypad Compatibility	in.k200, in.k300, in.k35, in.k4, in.k450, in.k500, in.k600, in.800 Auxiliary Keypads: in.k100
