GFCI trips
Warning!
Total current output cannot exceed total current
input rating!
There are different GFCI models used on the
market. See manufacture's instructions that come
with the GFCI for specific information. Note that all
illustrations are examples only.

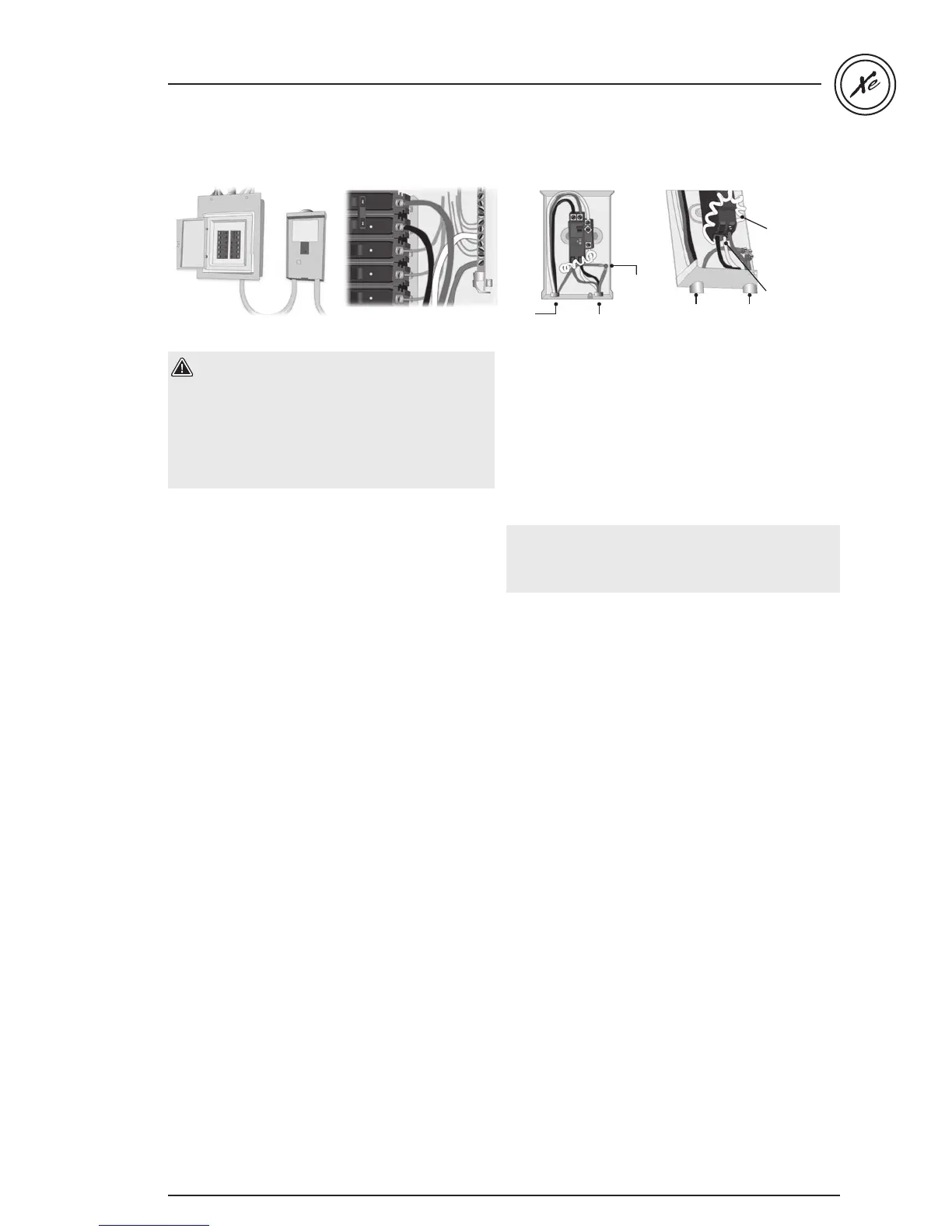

From
electrical box
To spa
Ground
wire
Main electrical box GFCI panel
Verify if GFCI is properly connected.
If it's not, verify GFCI diagram and reconnect it.
Verify in.xe pack wiring (make sure that the neutral
and the ground have not been inverted).
From
electrical box
To spa
Important
connections:
Neutral of
GFCI must be
connected to
neutral bus.
Neutral from
spa must be
connected to
breaker.
If the GFCI is properly connected but still tripping,
unplug all outputs from the spa pack (pumps, blower,
heater, ozonator etc).
Reconnect one output at a time until the GFCI trips
again.
Replace defective component.
Note: Incorrect GFCI wiring may lead to a condition where the
GFCI may NOT trip when it should, causing electrical shock
hazard. All electrical installations should be done by qualified
personnel only.
