Geeetech A10M - Page 11

11
SHENZHEN GETECH TECHNOLOGY CO LTD

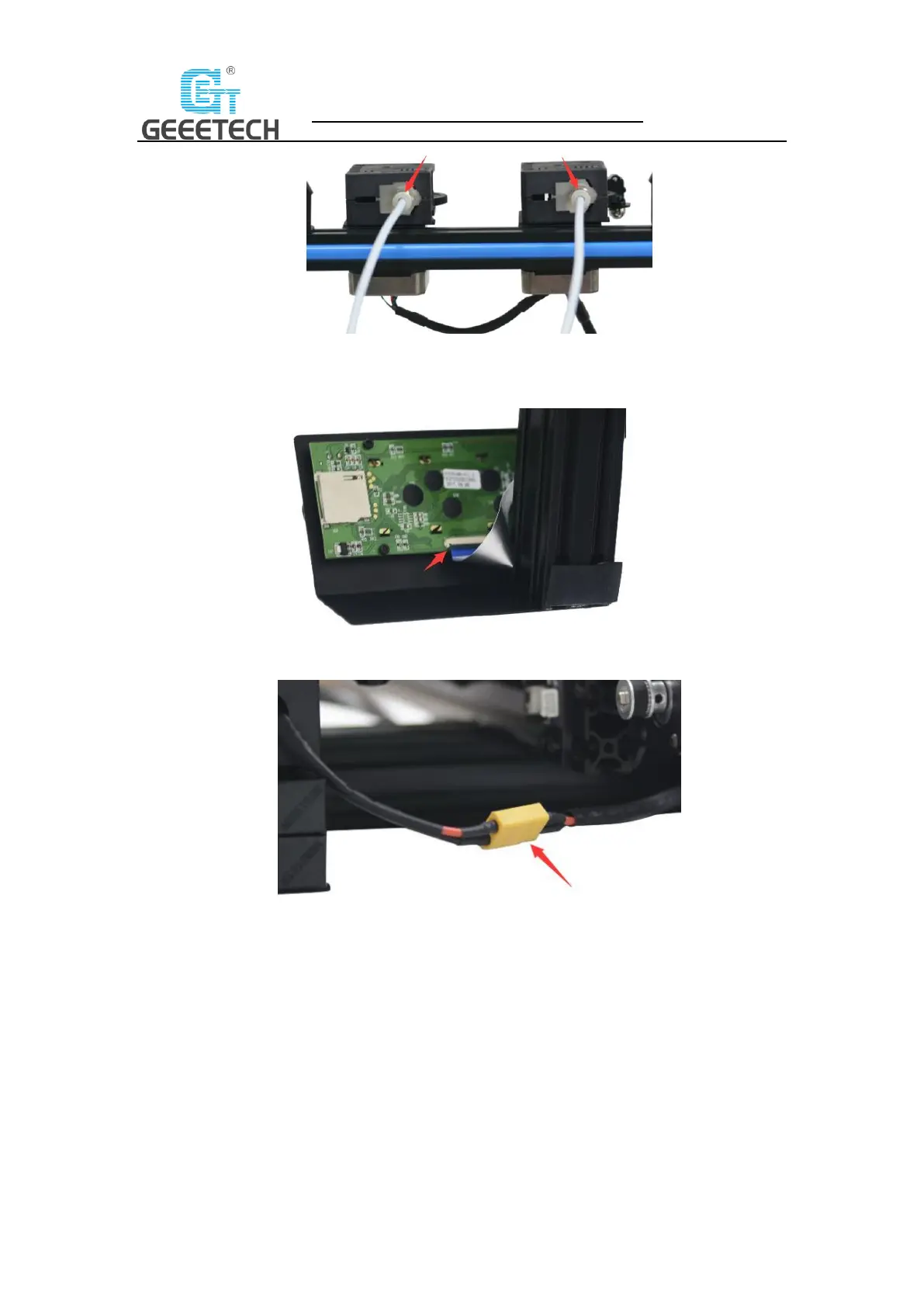

(Picture 3-7)
 Insert the flat ribbon cable blue side facing you in to LCD socket behind the LCD screen. See
picture (3-8).
(Picture 3-8)
 Connect the PSU cable. See picture (3-9).
(Picture 3-9)
 Plug the extruder cables into the molex socket of the extruder head extension board firmly.
See picture (3-10)
