SHENZHEN GETECH TECHNOLOGY CO LTD

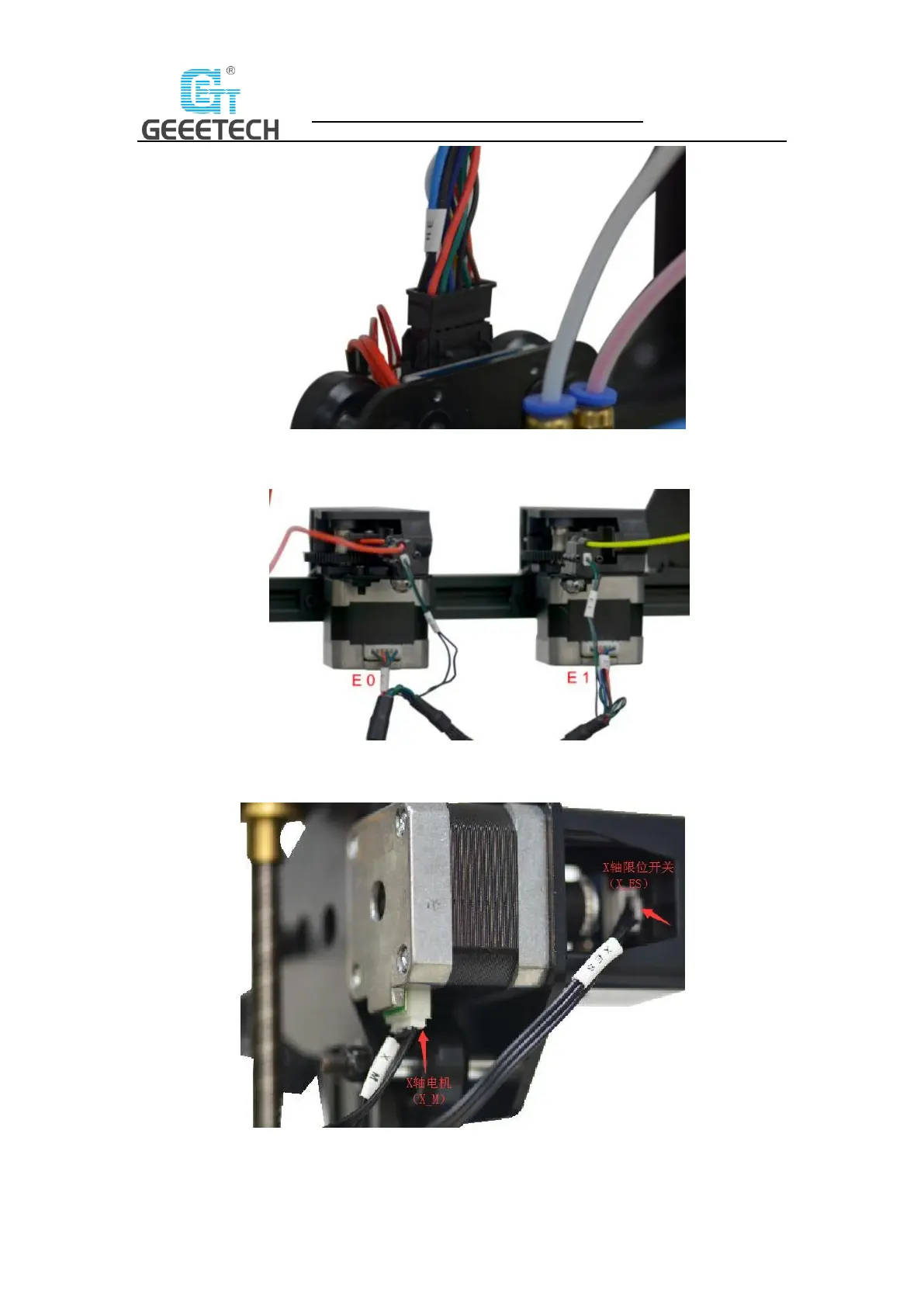

(Picture 3-10)
Connect the motor wires of E0 and E1. See picture (3-11).
(Picture 3-11)
Connect the wires of X axis’ motor and end stop. See picture (3-12).
(Picture 3-12)
Connect the wires of Y axis’ motor and end stop. See picture (3-13).
