Geeetech A10M User Manual

26
SHENZHEN GETECH TECHNOLOGY CO LTD

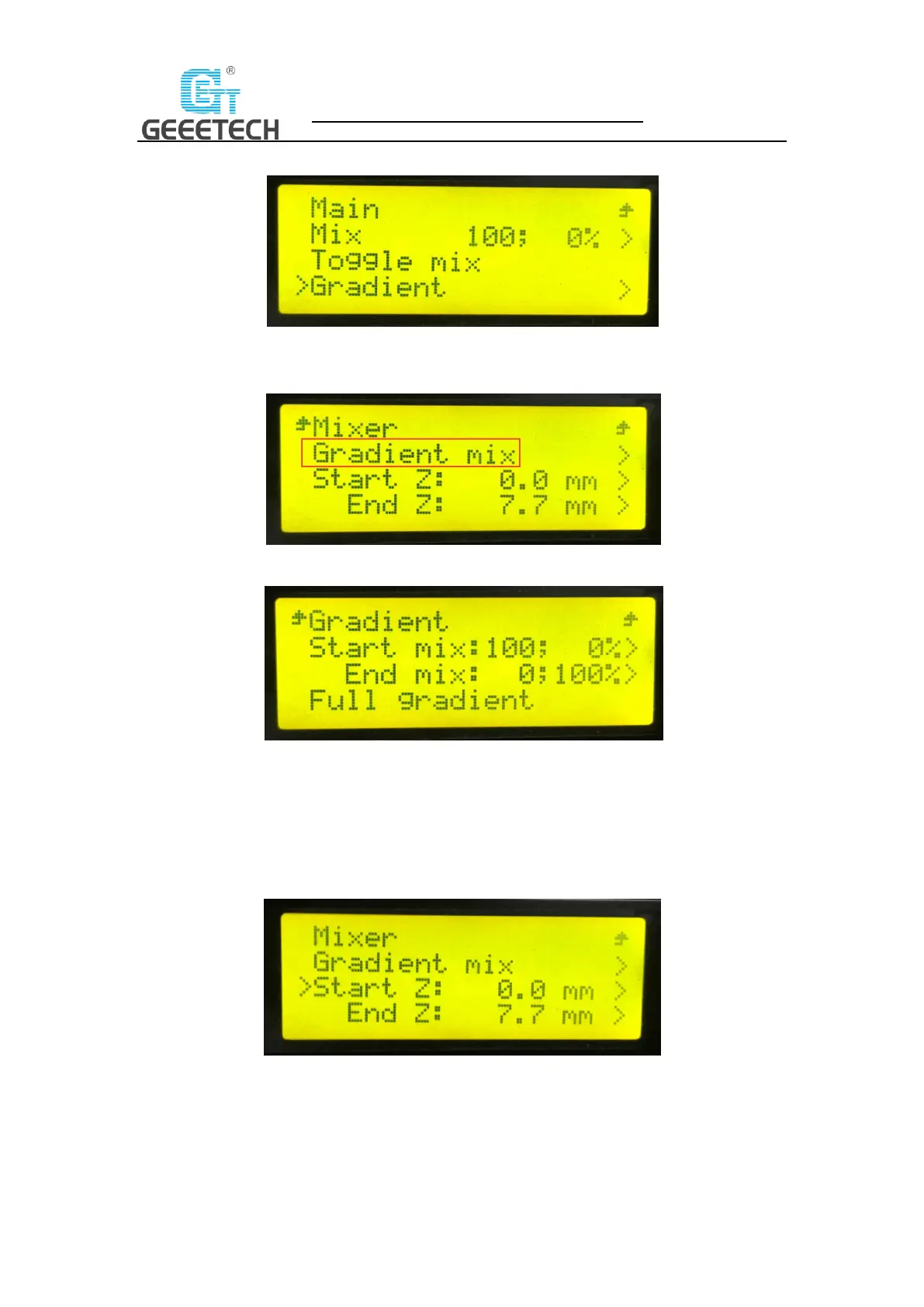

Choose “Gradient” to set the variable mix ratio, details see picture (5-16).
(Picture 5-16)
“Gradient mix”: Adjust the filament ratio of E0 and E1. See picture (5-17and 5-18).
(Picture 5-17)
(Picture 5-18)
“start Z”: The starting position (z-axis height) of automatic change of mixing; automatically
change the mix based on the current Z height obtained in the previous step.
“end Z”: The end of automatic change of mixing (z-axis height).
Choose “start z” and “end z”, press and rotate the knob to set the starting and ending position of
mixing. See picture (5-19).
(Picture 5-19)
Test the motors’ function via LCD
Press the knob to enter the next menu; choose “Prepare”. See picture (5-20).

Geeetech A10M Specifications

General

Print Technology	Fused Deposition Modeling (FDM)
Build Volume	220 x 220 x 260 mm
Layer Resolution	0.1-0.4 mm
Filament Diameter	1.75 mm
Nozzle Diameter	0.4 mm
Max Extruder Temperature	250°C
Max Hotbed Temperature	100°C
Connectivity	SD card, USB
Number of Extruders	2
Machine Dimensions	478 x 413 x 485 mm
Net Weight	7.8 kg
Filament Compatibility	PLA, ABS, Wood
Display	LCD
Power Supply	24V
