Geeetech A10M - Page 8

8
SHENZHEN GETECH TECHNOLOGY CO LTD

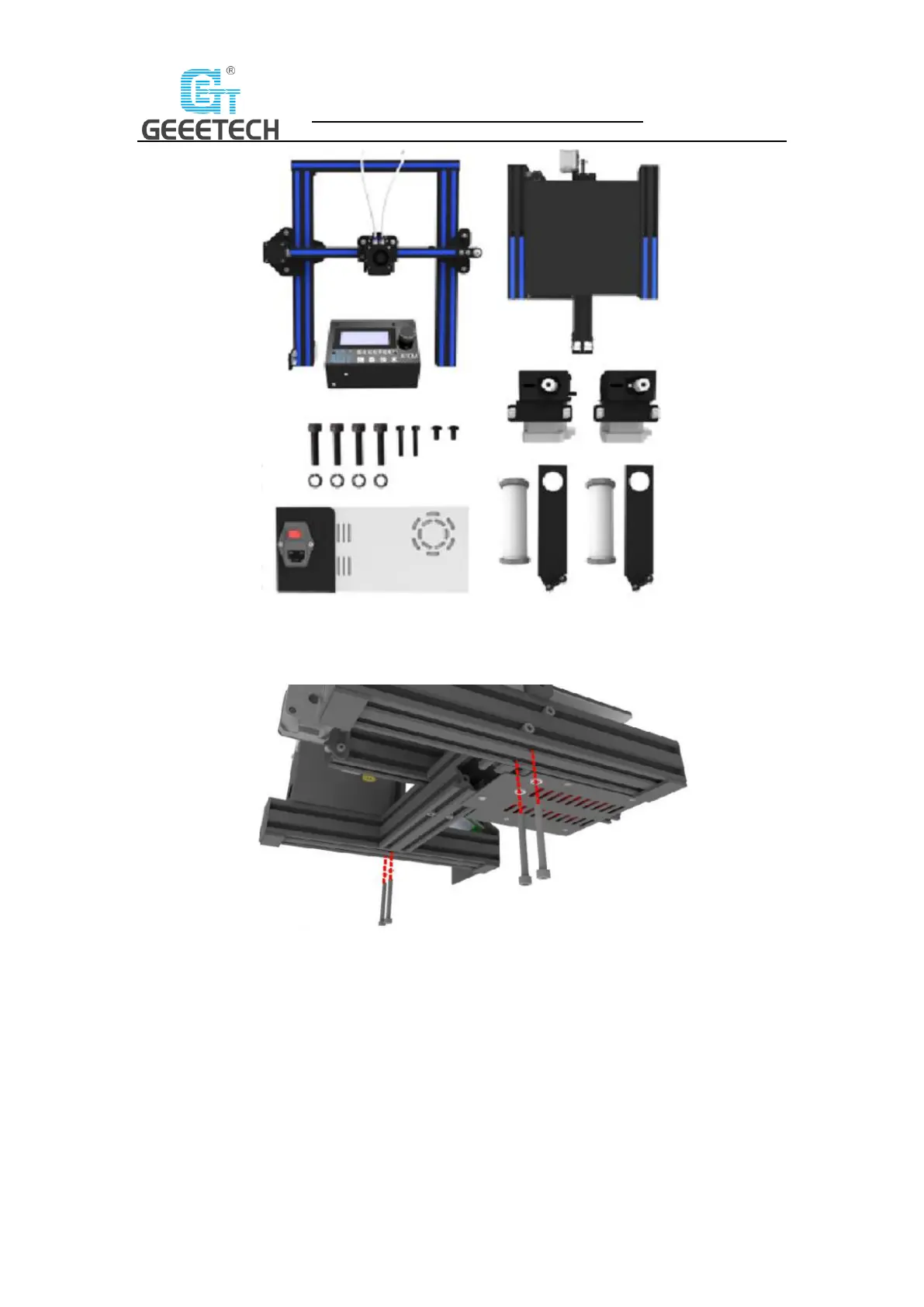

(Picture 3-1)
 Assemble the gantry frame and base from bottom to top with 4 M5x45 screws and 4 M5
spring washers. See picture (3-2).
(Picture 3-2)
 Fix the PSU to the gantry frame with 2 M4x20 screws. See picture (3-3).
