Geeetech A10M User Manual

9
SHENZHEN GETECH TECHNOLOGY CO LTD

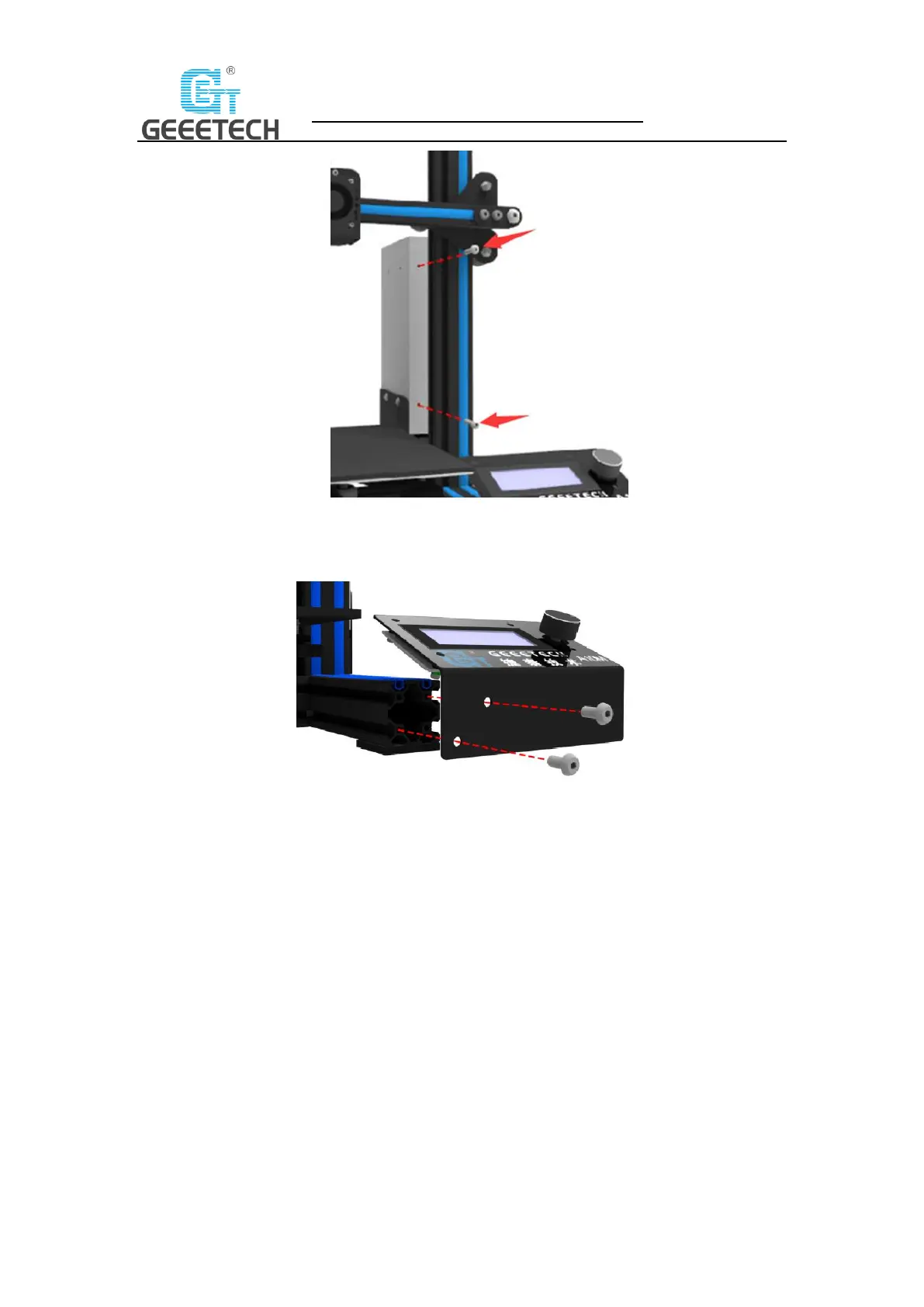

(Picture 3-3)
 Fix the LCD to the correct holes on the right side of the base with 2 M5x10 screws. See
picture (3-4).
(Picture 3-4)
 Assemble and fix the two sets of extruder units to the back side of the top gantry as shown
in picture (3-5).

Geeetech A10M Specifications

General

Print Technology	Fused Deposition Modeling (FDM)
Build Volume	220 x 220 x 260 mm
Layer Resolution	0.1-0.4 mm
Filament Diameter	1.75 mm
Nozzle Diameter	0.4 mm
Max Extruder Temperature	250°C
Max Hotbed Temperature	100°C
Connectivity	SD card, USB
Number of Extruders	2
Machine Dimensions	478 x 413 x 485 mm
Net Weight	7.8 kg
Filament Compatibility	PLA, ABS, Wood
Display	LCD
Power Supply	24V
