Geeetech A10T - 4 Machine Overview

Shenzhen Getech Technology Co.,Ltd
7
4 Machine Overview

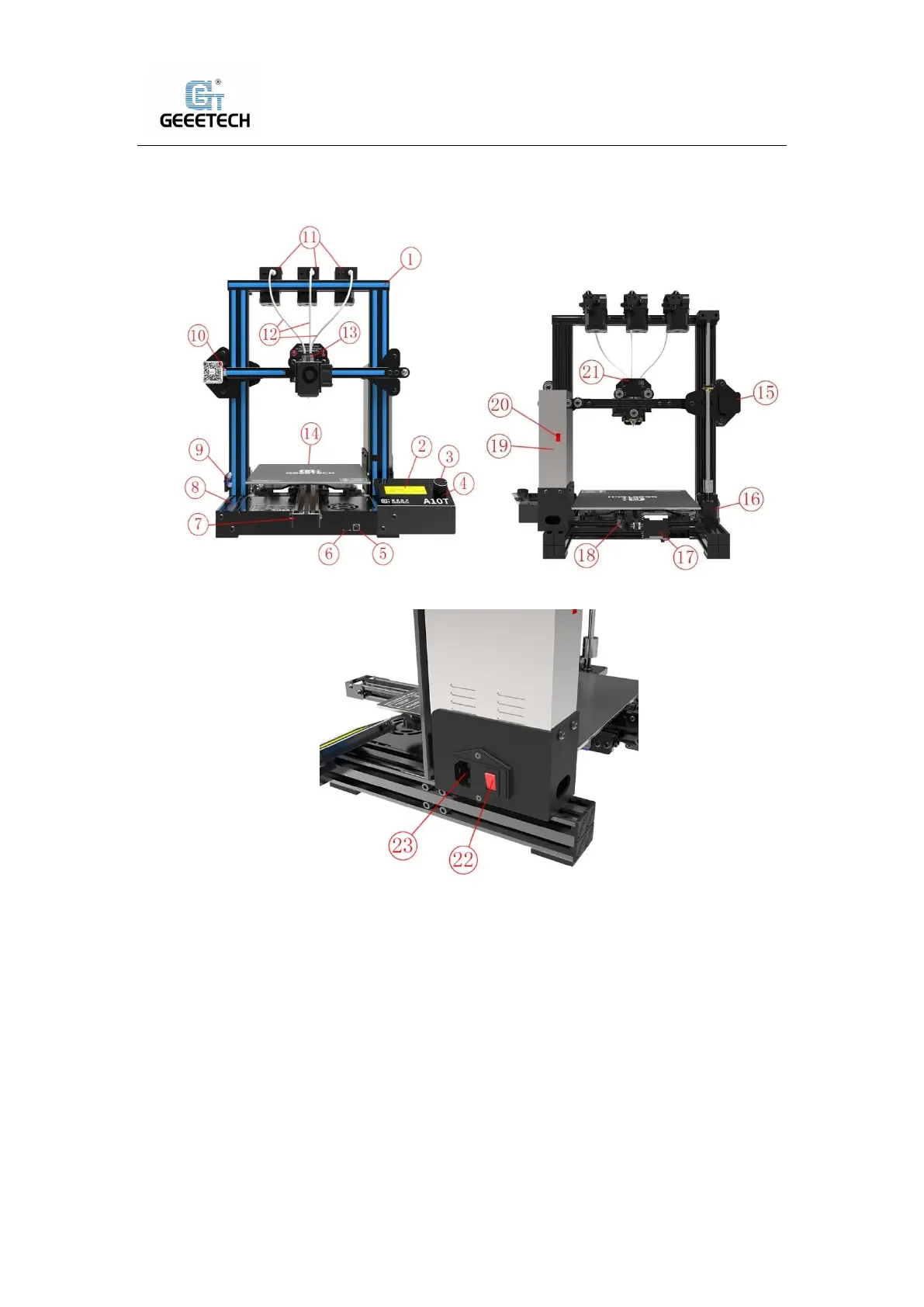

（Picture 4-1） （Picture 4-2）
（Picture 4-3）
① Gantry kit；②LCD2004 screen；③Knob；④Reset button；⑤USB port；
⑥TF card slot；⑦Y axis；⑧Bottom kit；⑨Z axis end stop；⑩X axis end stop；
⑪Remote extruder motors (3 sets)；⑫Teflon tube；⑬Extruder head；⑭Hot bed；⑮X axis
motor；⑯Z axis motor；⑰Y axis motor；⑱Y axis end stop；⑲PSU；⑳Power voltage selector
switch; ㉑Extruder wire connector；㉒Power switch；㉓Power socket
