5 Assembling
5.1Assembling the main frame
The main frame consists of the following components: Gantry kit, bottom kit, LCD display kit,
PSU kit, Extruder motors (3 sets), Filament holder kit（3 sets）and its associated screws.

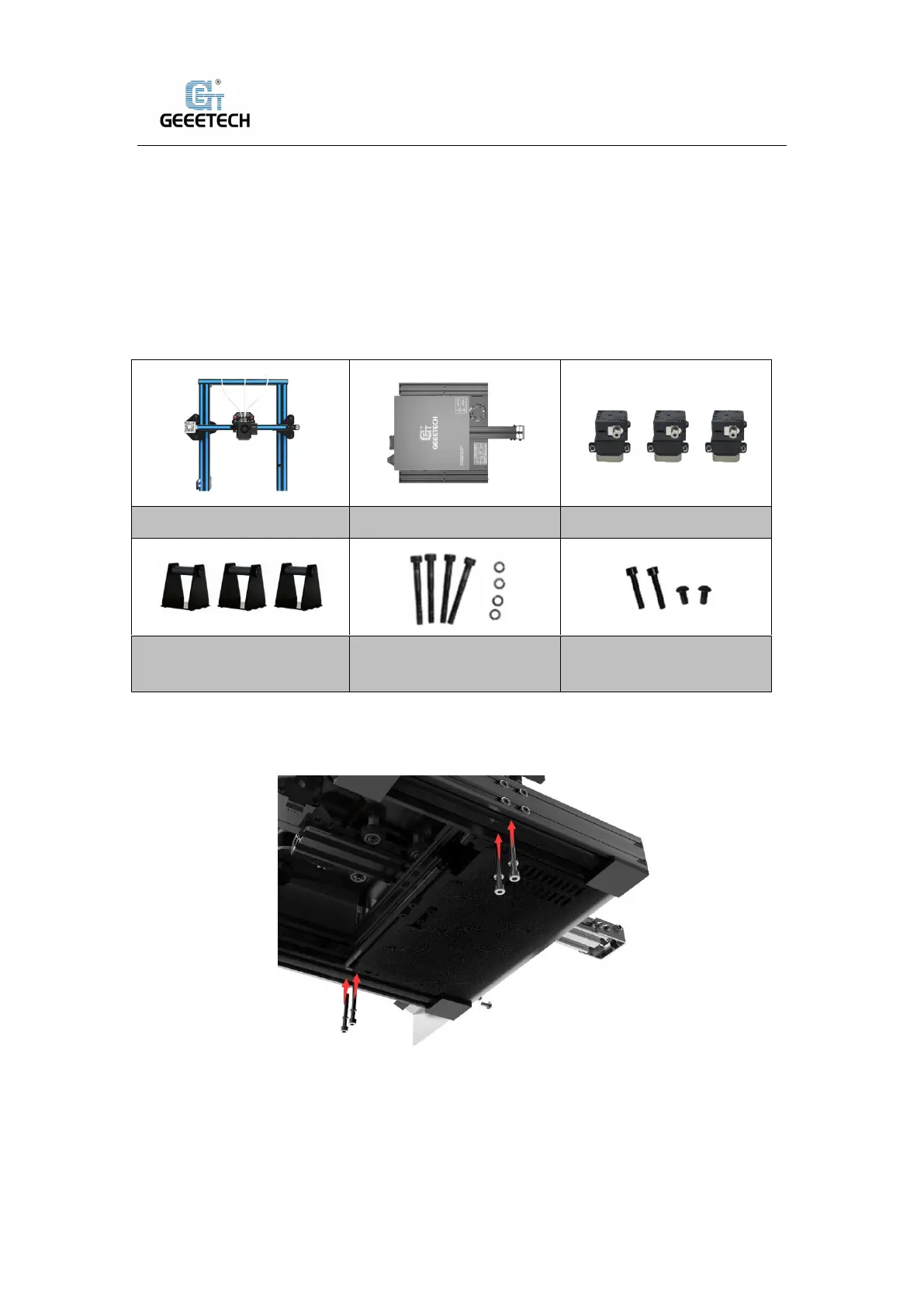

See picture (5-1)
(Picture 5-1)
 The gantry and bottom frames are assembled from the bottom of the machine with 4
M5x45 screws and 4 spring washers M5. See picture (5-2).
(Picture 5-2)
 Fix the PSU to the gantry frame with 2 M4x20 screws. See picture (5-3).
Gantry kit
Bottom kit
Extruder motors (3 sets)
Filament holder kit（3
sets）
Gantry and base
installing screws
Power and LCD screen
installing screws
