SHENZHEN GETECH TECHNOLOGY CO., LTD
10

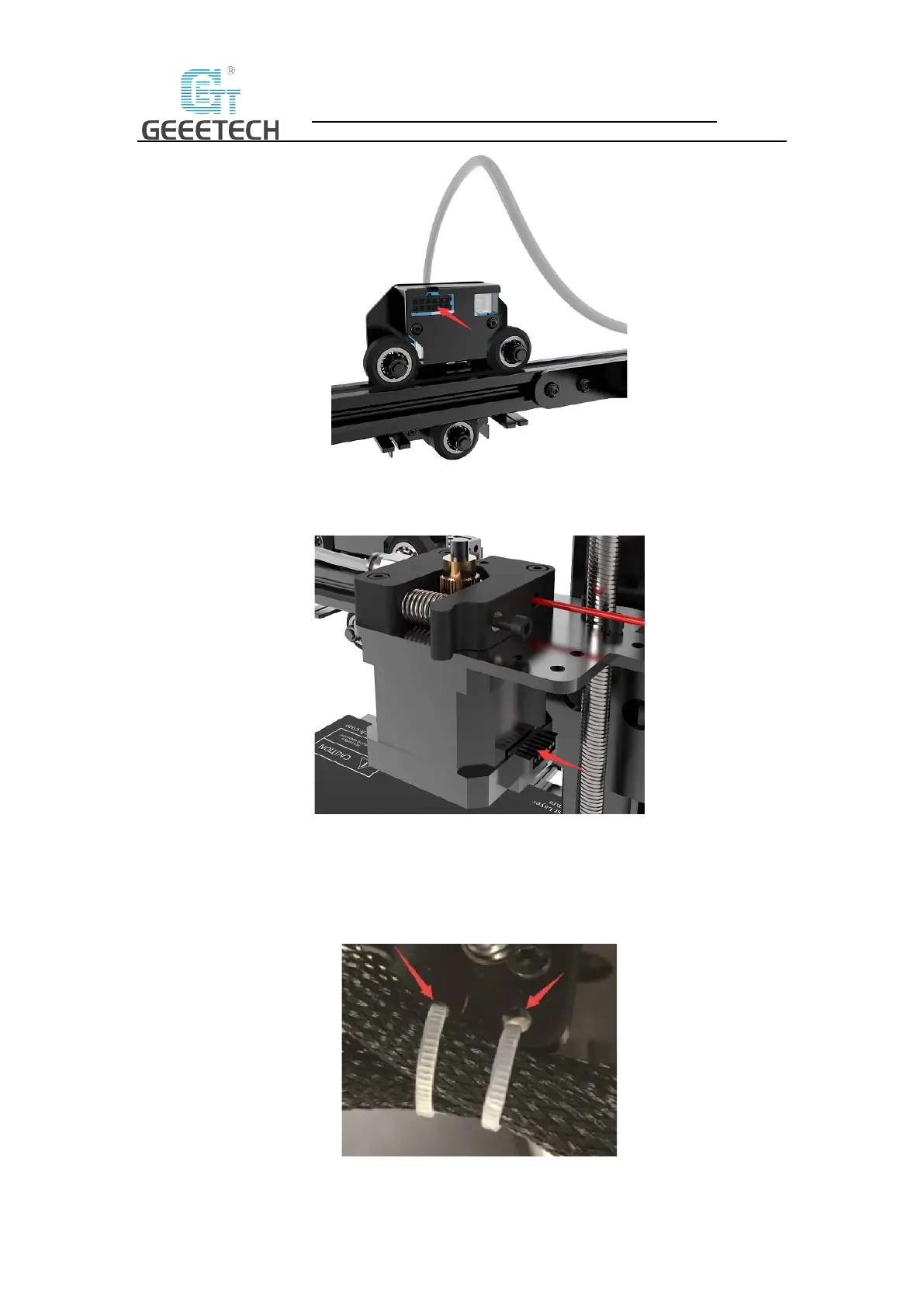

(Picture 5-5)
• Connect the motor wires of E0. See picture (5-6).
(Picture 5-6)
• Then the extruder wire and the motor extruder wire are fixed into the small hole on the
backside of the screw with the Cable tie to avoid the wire harness touching the model
during printing. In addition, the position the harness fixed needs to reserve the length of the
Z-axis at the maximum height. See picture (5-7).
(Picture 5-8)
