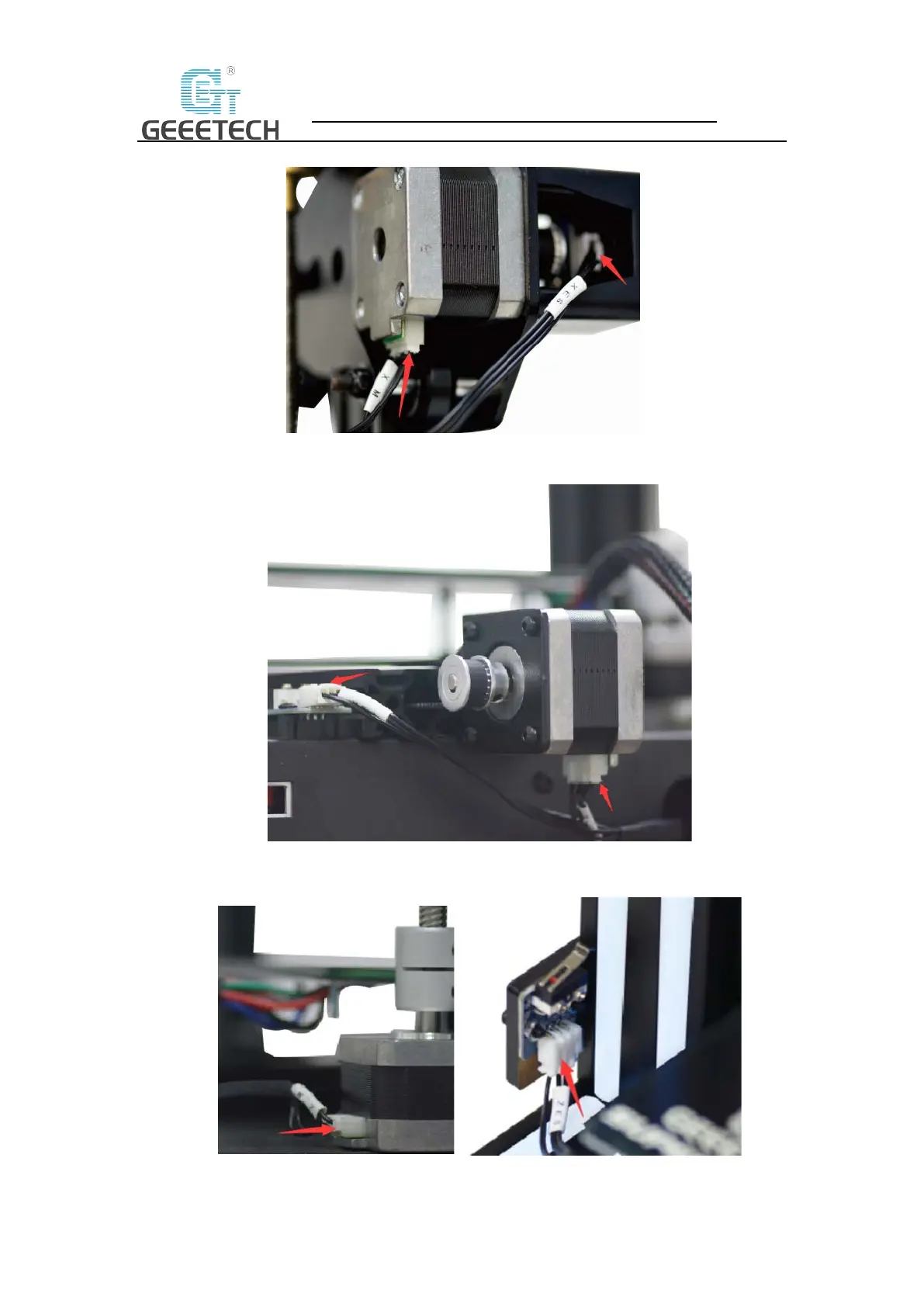

• Connect the wires of X axis’ motor and end stop. See picture (5-8).
(Picture 5-8)
• Connect the wires of Y axis’ motor and end stop. See picture (5-9).
(Picture 5-9)
• Connect the wires of Z axis’ motor and end stop. See picture (5-10).
•
(Picture 5-10)
