4. CONFIGURATION
Acronym Scrolling message Password Description
OUTPU OUTPUT CONFIG Level 2 Lets you configure the controller outputs.

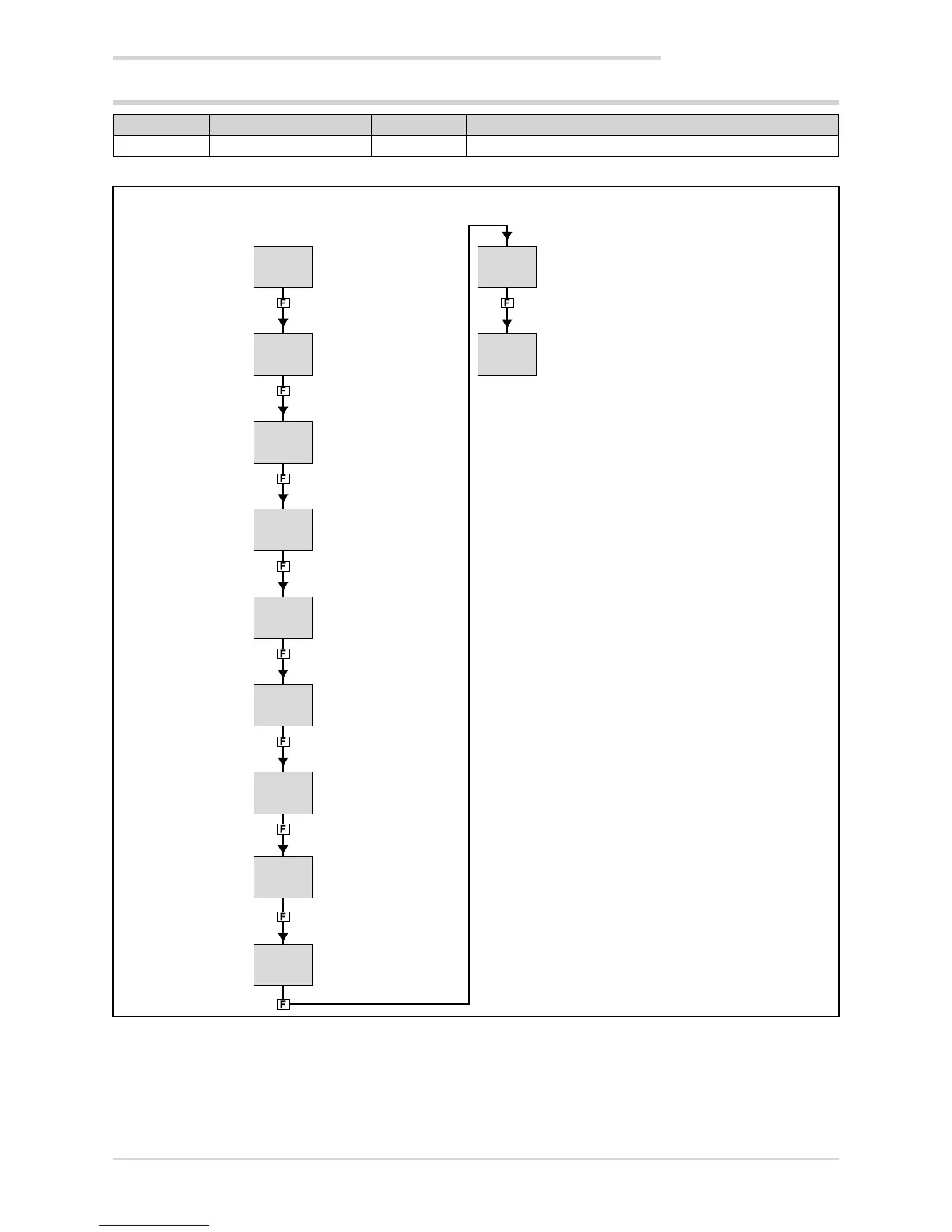

4.16. OUTPU Submenu – Configuring outputs
100
100
101
101
102
102
102
102
102
103
103
Selecting the
output
Parameter
page
Parameter
page
Defining the
output state
Selecting the
function assi-
gned to relay,
logic or Triac
output
Selecting the
function assi-
gned to conti-
nuous output
Selecting the
output message
Cycle time of
output
Setting the
event number
Setting the
Function Block
output number
Setting the
digital input
number
Setting the
number of
switchings for
signal
State of output
with broken
input
OUT.N
S.ou.x
F.ou.x
F.ou.C
EVNT.N
FB.OU.N
IN.DGN
SWTCH
FAULT
MSG.OU
CY.TIM

gefran 650 Specifications

General

Output Type	Relay, SSR, mA, V
Control Mode	PID, ON/OFF
Communication	RS485 Modbus RTU
Input Type	Thermocouple, RTD, mA, V
Power Supply	100-240 VAC
Display	LED
Alarm Output	Relay
Dimensions	48 x 48 mm
Mounting	Panel
