gefran 650 - 5.2.2. Quick Configuration Procedure for Model 650-D-R00

80208G_MHW_650-1250-1350_01-2017_ENG
140
5.2.2. Quick configuration procedure for model 650-D-R00-00100-1
5. Examples and applicative notes
> 2 s
> 2 s
> 2 s
> 2 s
> 2 s
> 2 s
> 2 s

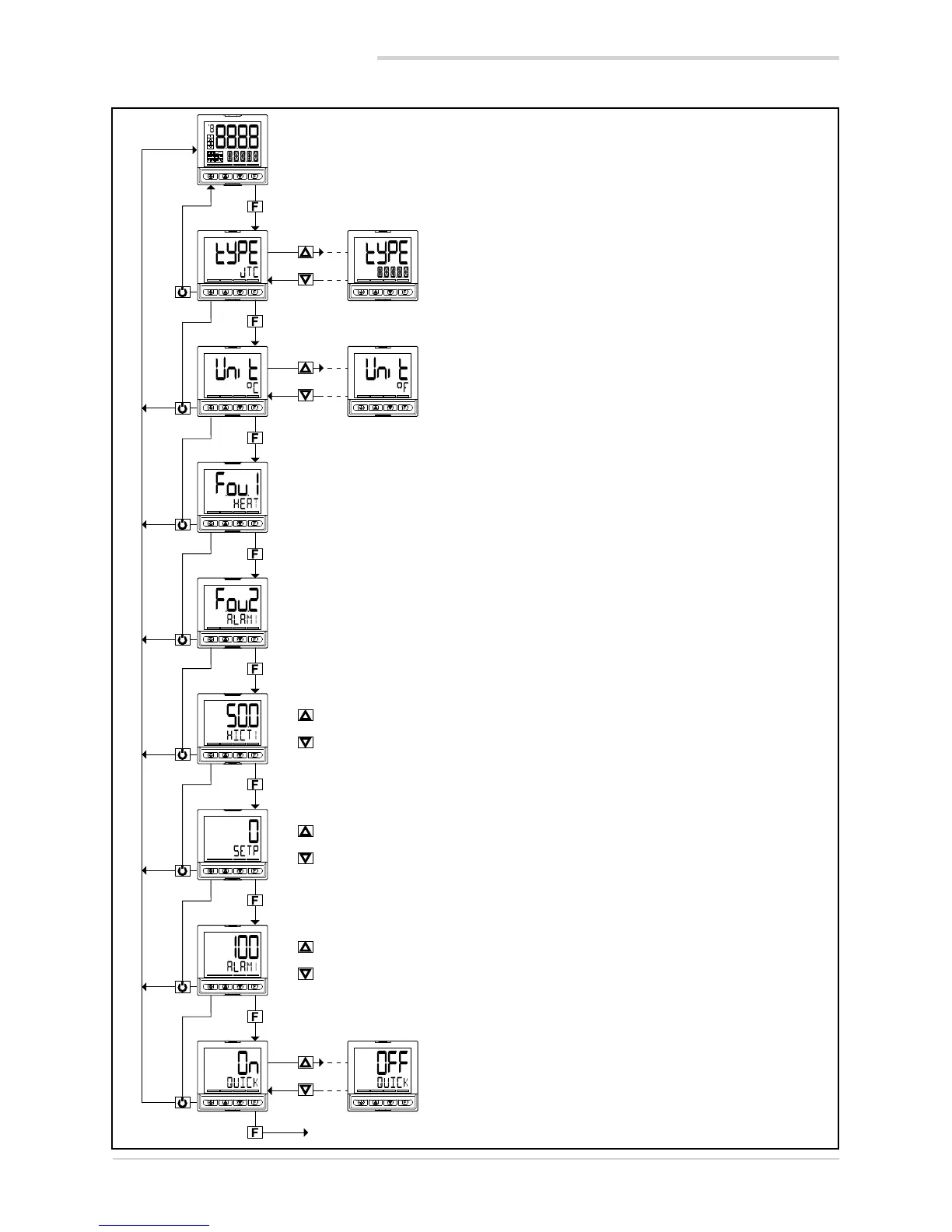

Home
Selecting sensor type
Selecting unit of measurement
The unit of measurement can be °C
or °F only if a TC or Rtd sensor is se-
lected
Select output 1 function
The functions proposed are based on type of logic output.
Select output 2 function
The functions proposed are based on type of logic output.
Setting Setpoint
Setting Alarm 1
Default: direct maximum absolute
Enable/disable quick configuration
raises the value
lowers the value
raises the value
lowers the value
return to select sensory type
raises the value
lowers the value
Full-scale of the CT1 current transformer
