gefran 650 - Page 20

80208G_MHW_650-1250-1350_01-2017_ENG
18
1.5.2. Drilling dimensions and templates
108.6 mm
4.28 in
96 mm
3.78 in
96 mm
3.78 in
80 mm
3.15 in
115 mm
4.53 in
115 mm
4.53 in
0.39
in
10 mm
92 mm
3.64 in
+ 0.8 - 0.0
92 mm
3.64 in
+ 0.8
- 0.0

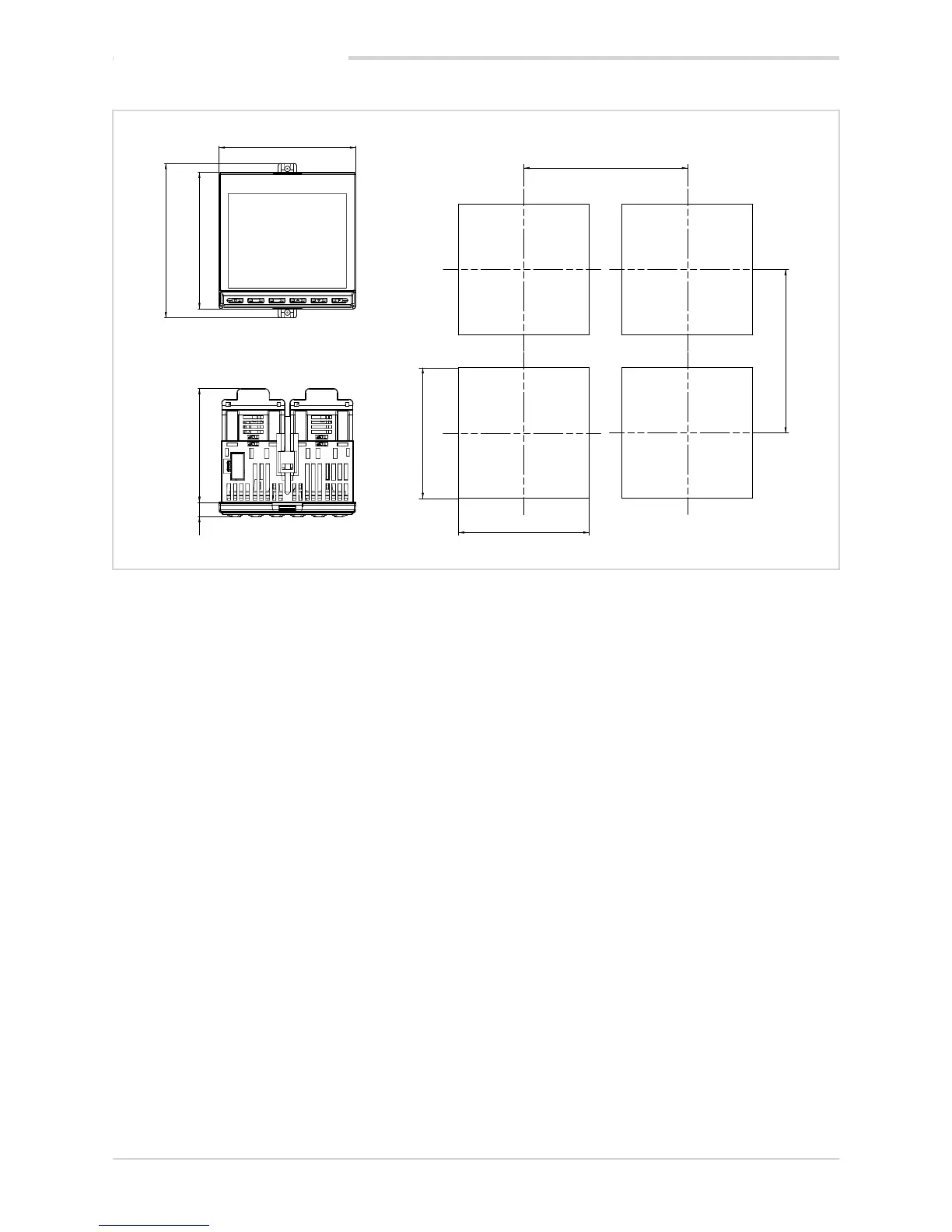

Figure 6 - 1350 drilling dimensions and templates
1. GENERAL DESCRIPTION
