36
3. COMMISSIONING

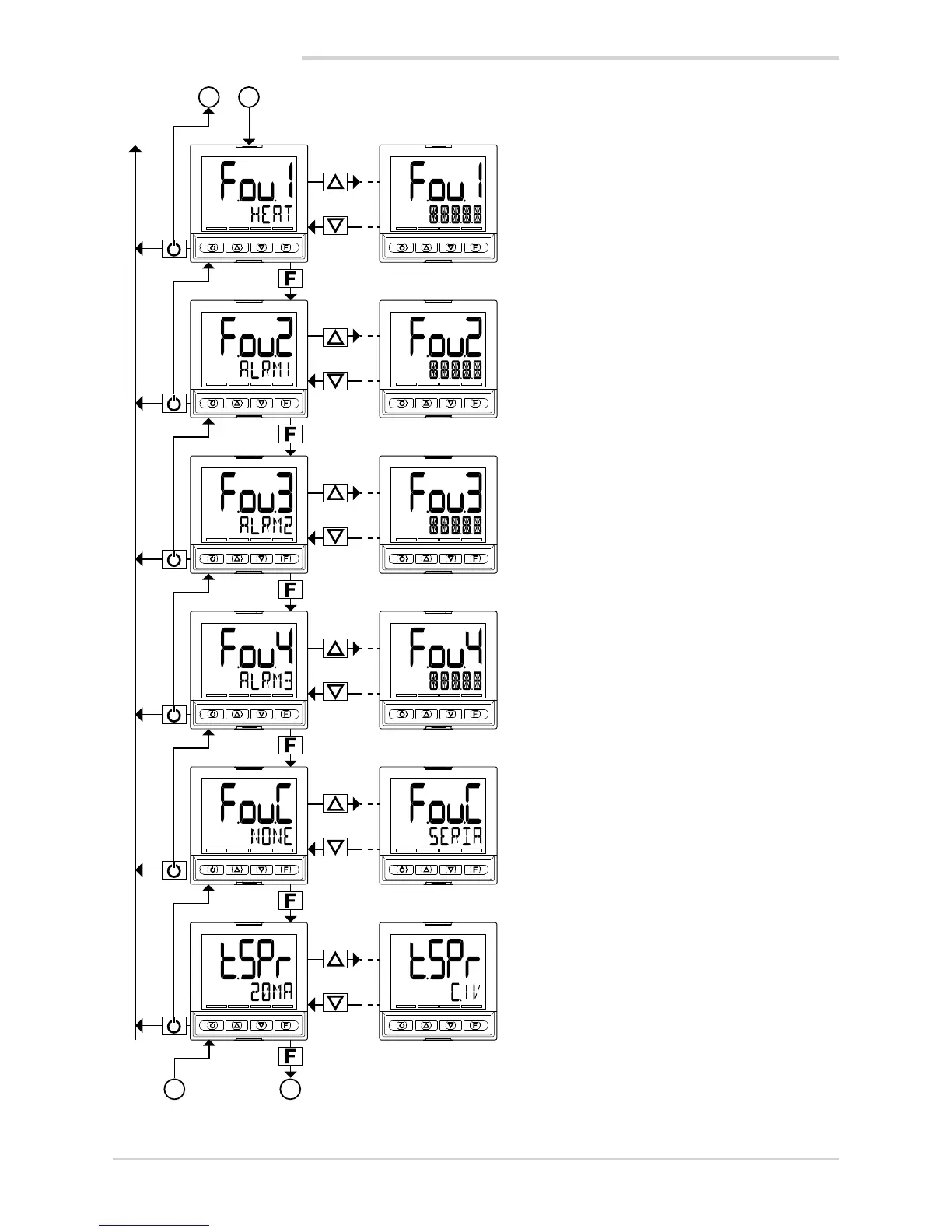

Selecting output 1 function
The proposed functions depend on output type
(relay, logic).
Selecting output 2 function
The proposed functions depend on output type
(relay, logic).
Selecting output 3 function
The menu item appears only if the optional output
is availableis available.
Selecting output 4 function
The menu item appears only if the optional output
is available
Selecting analog output function
The menu item appears only if the output conti-
nuous Out1 4-20mA.
Selecting remote setpoint type
The menu item appears only if the optional input
is available.
The setpoint scale depends on the sensor se-
lected.
> 2 s
> 2 s
> 2 s
> 2 s
> 2 s
> 2 s
A
B
A
B
