ADV200 • Functions description and parameters list 41

Down

Mpot output mon Mode:Follow

Start

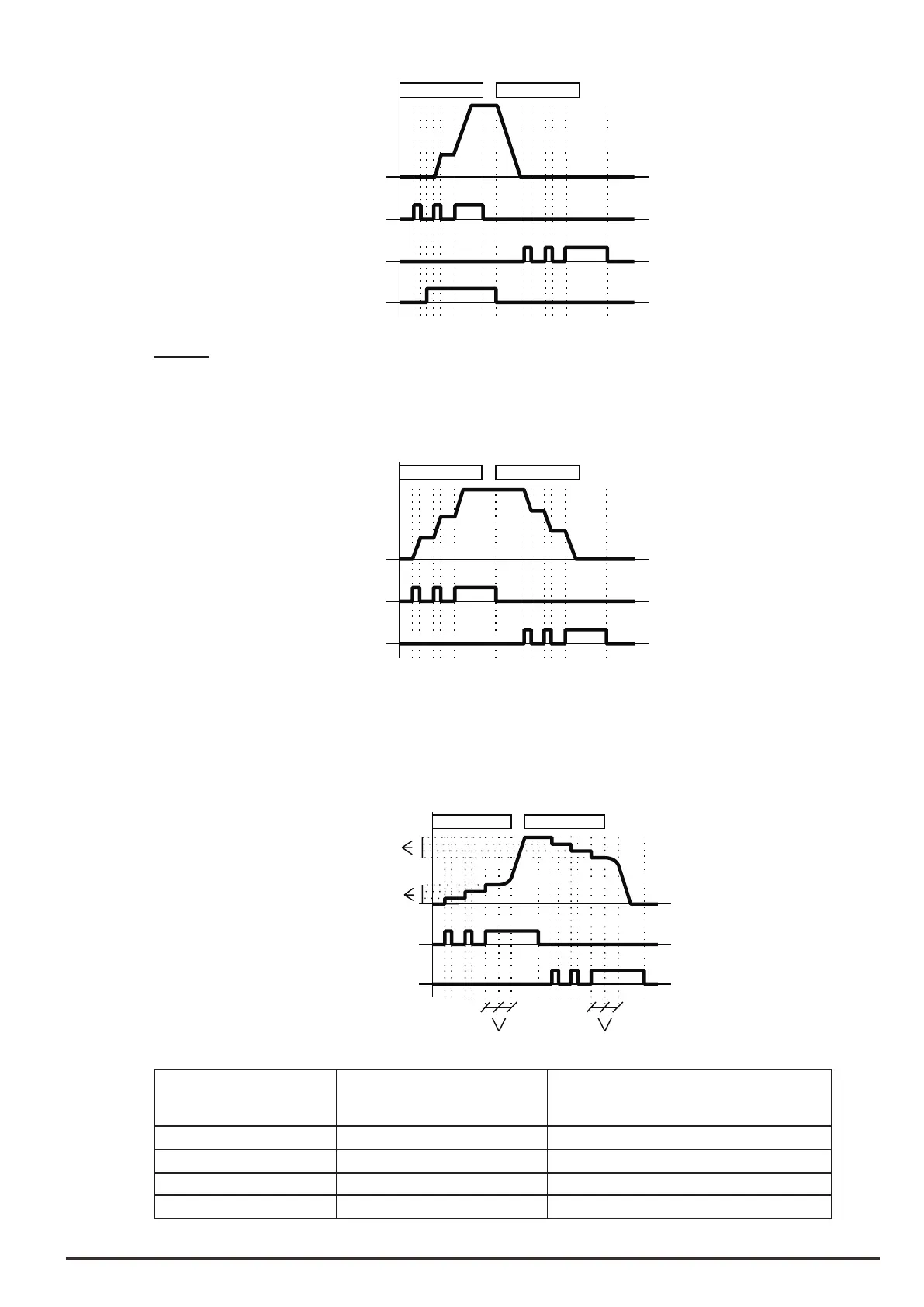

Option 2: Ramp behaviour

The two operating modes are: Ramp or Fine

In Ramp mode, each time the Up or Down commands are enabled, the output of the Motor potentiometer func-

tion increases or decreases with the set ramp. When the Up or Down command is removed, the last value that

was reached is maintained.

Down

Mpot output mon Mode:Ramp

In Fine mode, each time the Up or Down commands are enabled, the output of the Motor potentiometer func-

tion increases or decreases by 1 rpm.

If the command persists for less than 1 second, no other changes are made on the output.

If the command persists for more than 1 second, the output increases or decreases with the set ramp. The vari-

ation with the set ramp is performed gradually (1 second). When the Up or Down command is removed the last

value that was reached is maintained.

Down

Mpot output mon

1s 1s

1rpm

Mode:Fine

Mpot mode Ramp behaviour

Behaviour of the Motor potentiometer function with

the Stop or FastStop command present with the

Control mode = Ramp parameter.

0 Ramp Last val

1 Ramp Follow

2 Fine Last val

3 Fine Follow
