46 ADV200 • Functions description and parameters list
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
10.12 970 Speed threshold 3 rpm INT32 0 0 CALCI ERW FVS

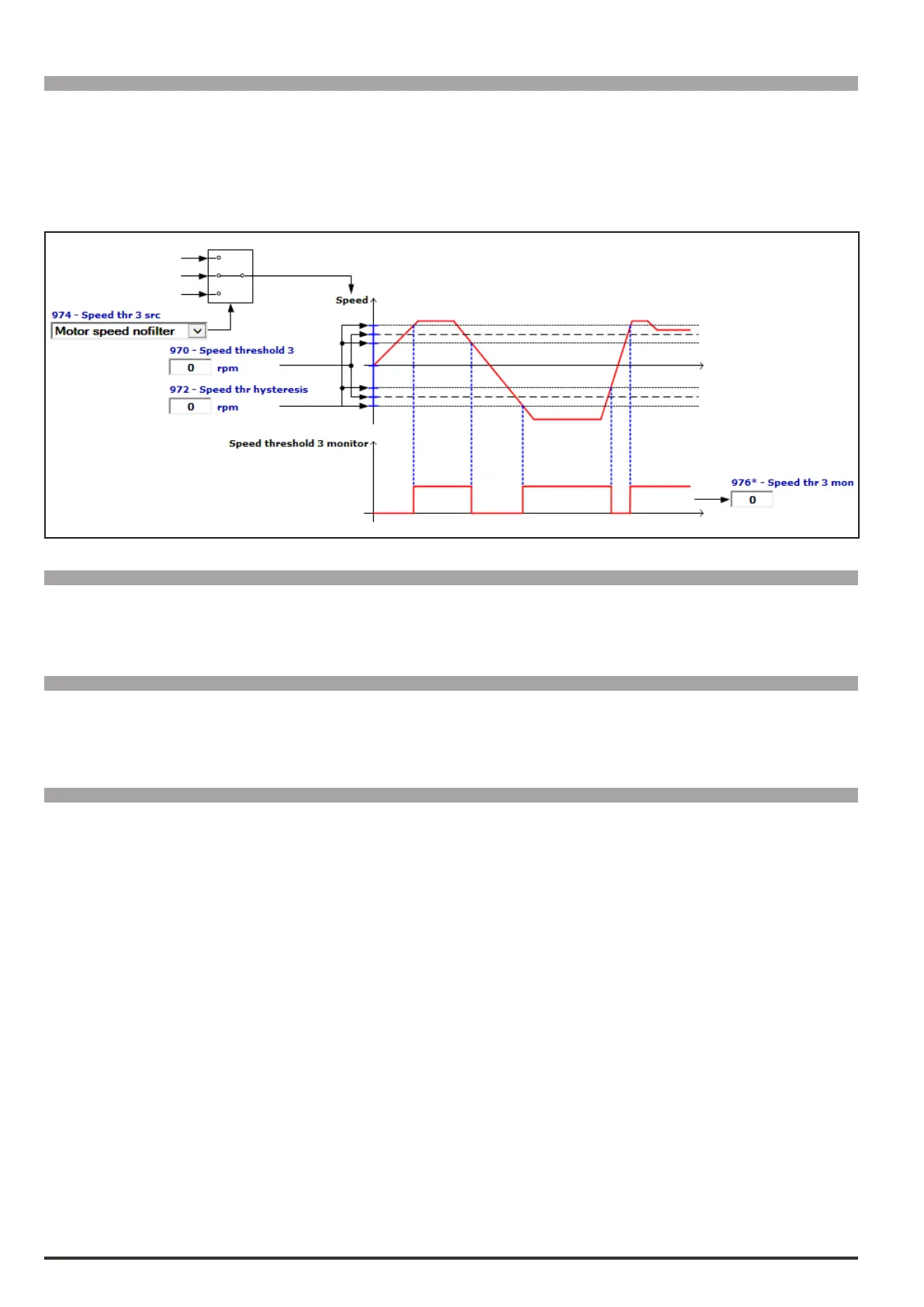

Setting of the speed 3 threshold. When this threshold + the tolerance band set in parameter 972 Speed thr
hysteresis are exceeded, parameter 976 Speed thr 3 mon is enabled. The signal is disabled when the motor
speed falls below the threshold - the tolerance band. If the threshold value is lower than the value set in 972
Speed thr hysteresis, the result produced is always 0. The value set in this parameter is active in both direc-
tions of rotation.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
10.13 972 Speed thr hysteresis rpm UINT16 0 0 CALCI RW FVS
Setting of the tolerance band around Speed threshold 3. The tolerance band is the same for both directions of
rotation of the motor.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
10.14 974 Speed thr 3 src LINK 16/32 262 0 16384 ERW FVS
Lets you select the source of the “Speed threshold 3” function block to compare Speed threshold 3 (IPA 970)
with the real or estimated motor speed or speed reference.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
10.15 980 Current threshold perc UINT16 100 0 200 RW FVS
Setting of the current threshold. A value of 100% corresponds to the value of the drive heavy duty continuous
current, displayed in parameter 488 Drive cont current, when parameter 566 Drive overload mode is set
to Heavy duty, and no derating of the drive continuous current has been activated due to any modication of
Mains voltage, Switching frequency and Ambient temperature.
The drive heavy duty continuous current value to be used is the factory setting read in PAR 488 Drive cont
current.
When this threshold + the tolerance band set in parameter 982 C
urrent thr hyster
are exceeded, parameter 986
Current thr mon is enabled. The signal is disabled when the motor speed falls below the threshold - the toler-
ance band. If the threshold value is lower than the value set in 982 Current thr hyster, the result produced is
always 0. The value set in this parameter is active in both directions of rotation.ù
