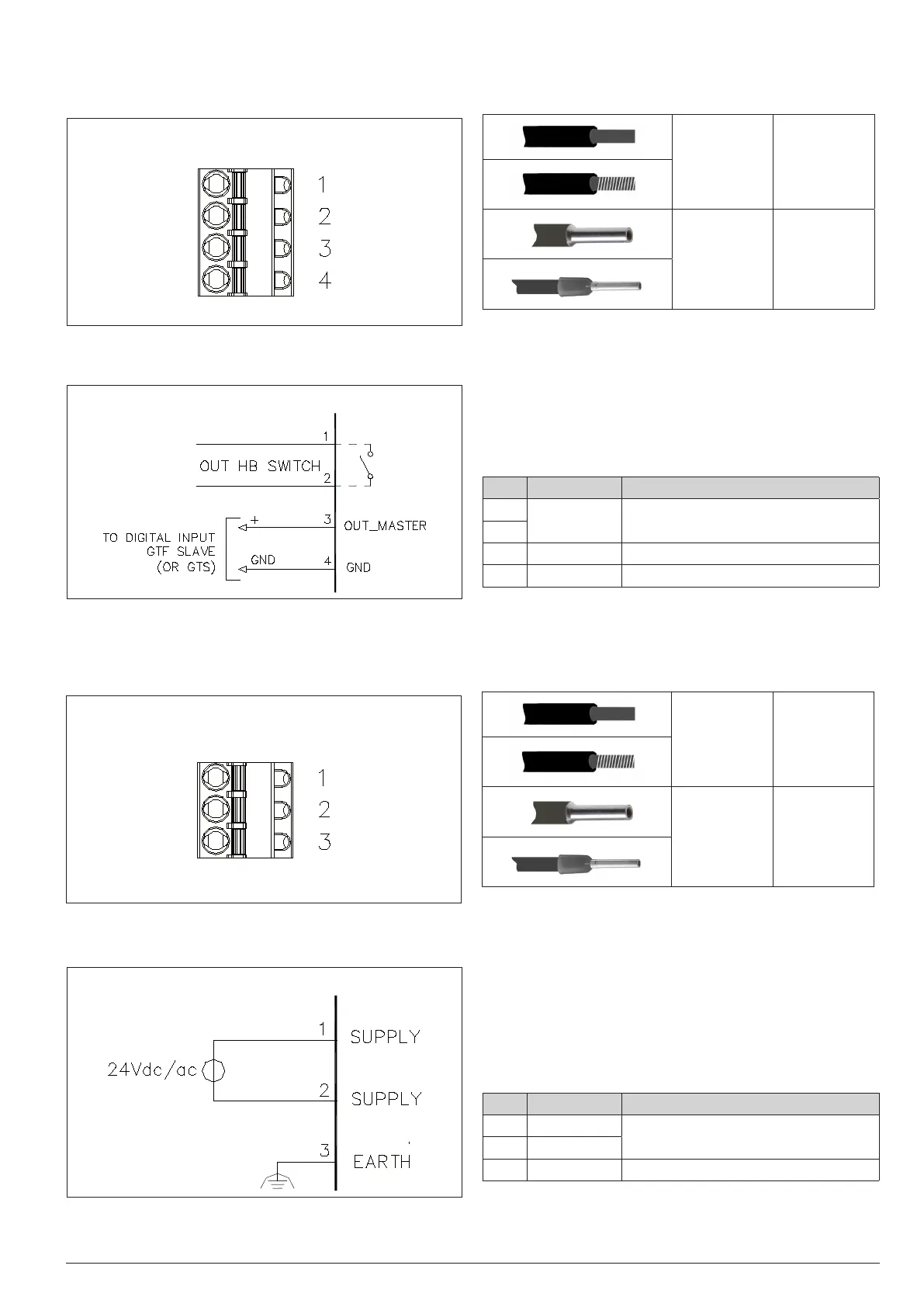

3.5.2 Connector J1 GTF 150-250A OUTPUTS
Figure 15
CONNECTOR J1 GTF 150-250A
Table 10
0,2 - 2,5mm
2
24-14AWG
0,25 - 2,5mm
2
23-14AWG
Figure 16
Connection scheme J1 GTF for 150-250A
CONNECTOR J1, J4 GTF 150-250A
Table 11
PIN NAME DESCRIPTION
1
OUT AL HB Contact output N.A. Alarm HB
2
3 +OUT_Master Output 7Vdc for control slave module
4 GND GND output OUT_Master
3.5.3 Connector J2 GTF 150-250A Supply 24V
Figure 17
CONNECTOR J2 GTF 150-250A (SUPPLY 24V)
Table 12
0,2 - 2,5mm
2
24-14AWG
0,25 - 2,5mm
2
23-14AWG
Figure 18
Connection scheme J2 GTF forr 150-250A
CONNECTOR J2 GTF 150-250A (SUPPLY 24V)
Table 13
PIN NAME DESCRIPTION
1 24Vdc/Vac
24V Supply
2 24Vac/Vdc
3 EARTH Earth EMC
