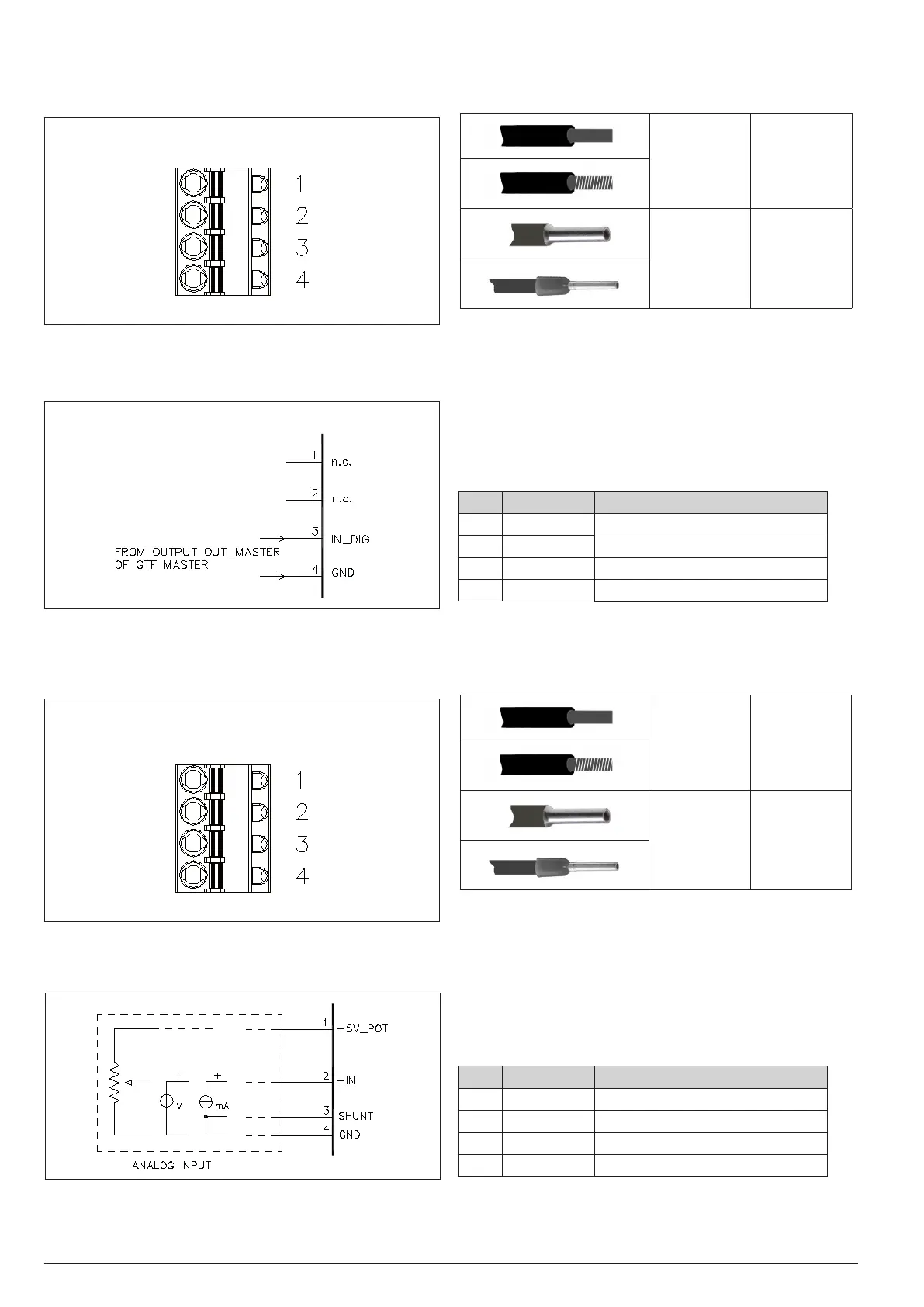

3.5.4 Connector J3 GTF 150-250A Digital inputs
Figure 19
CONNECTOR J3 GTF 150-250A (DIGITAL INPUT)
Table 14
0,2 - 2,5mm
2
24-14AWG
0,25 - 2,5mm
2
23-14AWG
Figure 20
Connection scheme J3 for GTF 150-250A
CONNECTOR J3 GTF 150-250A (DIGITAL INPUT)
Table 15
PIN NAME DESCRIPTION
1 --- Not connected
2 --- Not connected
3 +IN_DIG Digital input (& PWM input)
4 GND 24V Supply
3.5.5 Connector J4 GTF 150-250A Control Analog Input
Figure 21
CONNECTOR J4 GTF 150-250A
(CONTROL ANALOG INPUT)
Table 16
0,2 - 2,5mm
2
24-14AWG
0,25 - 2,5mm
2
23-14AWG
Figure 22
Connection scheme J4 for GTF 150-250A
Table 17
PIN NAME DESCRIPTION
1 OUT AL HB Supply output 5V potentiometer
2 +IN Control voltage input
3 SHUNT Shunt for input mA
4 GND GND control signal
