4.2.3 Analog Stereo with a Subwoofer
Before cabling, turn off the power in all monitors and subwoofers.
 connect (Left) audio cable from the source to the subwoofer connector ANALOG IN 1.
 connect a cable from subwoofer ANALOG OUT 1 to left monitor ANALOG IN.
 connect (Right) audio cable from audio source to subwoofer ANALOG IN 2.
 connect (Right) audio cable from Subwoofer ANALOG OUT 2 to right monitor ANALOG IN

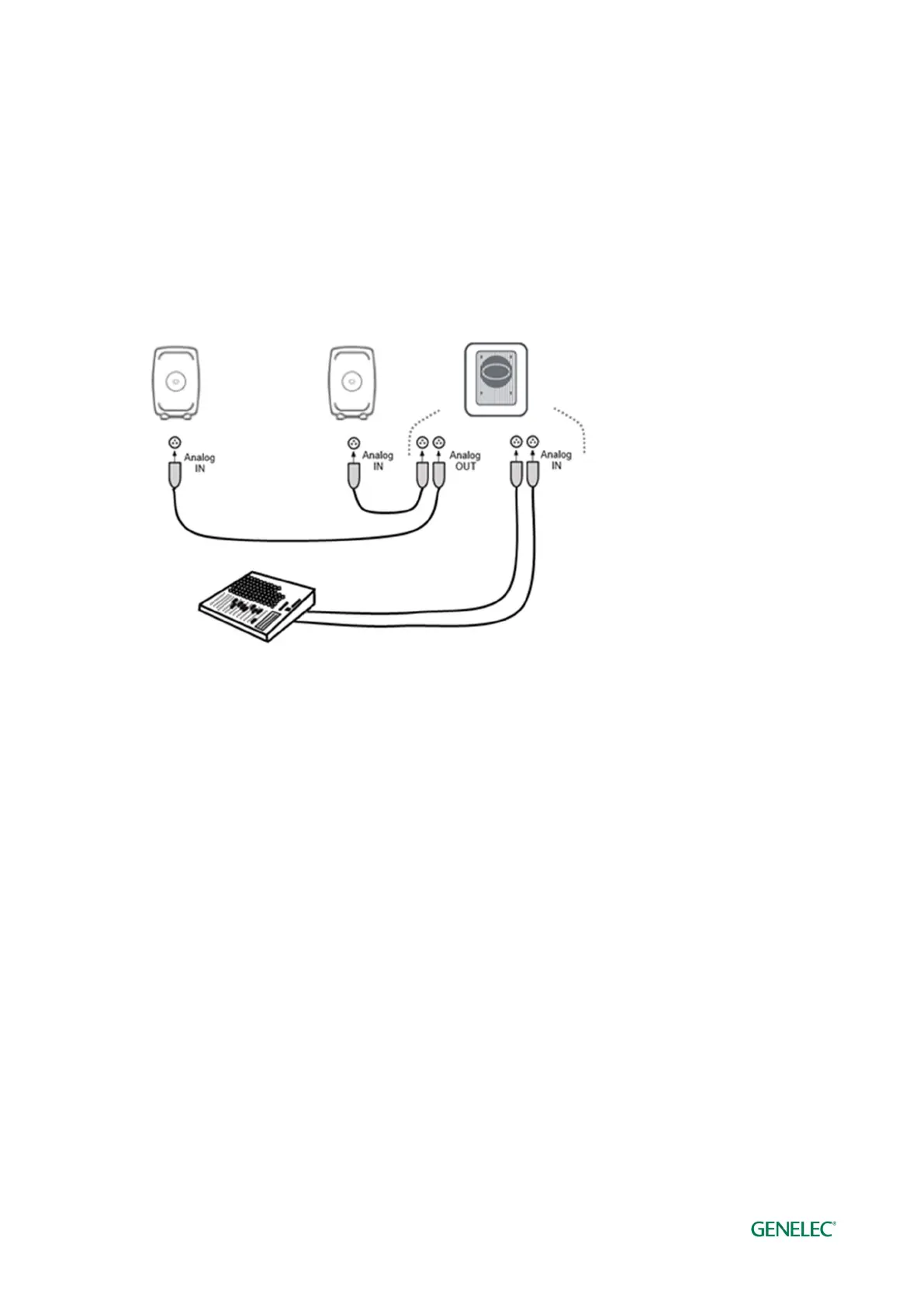

Figure 4. Analog stereo cabling with a subwoofer
4.2.4 Analog 5.1 Surround
Before cabling, turn off the power in all monitors and subwoofers.
 connect an audio cable from the audio source to the subwoofer ANALOG IN 1
 continue from the subwoofer ANALOG OUT 1 to the monitor ANALOG IN
 continue connecting all remaining audio input cables to the subwoofer inputs ANALOG IN 2
through to ANALOG IN 5, and from the respective analog outputs to the relevant monitors
 finally, connect the LFE channel from the audio source to the subwoofer LFE IN
