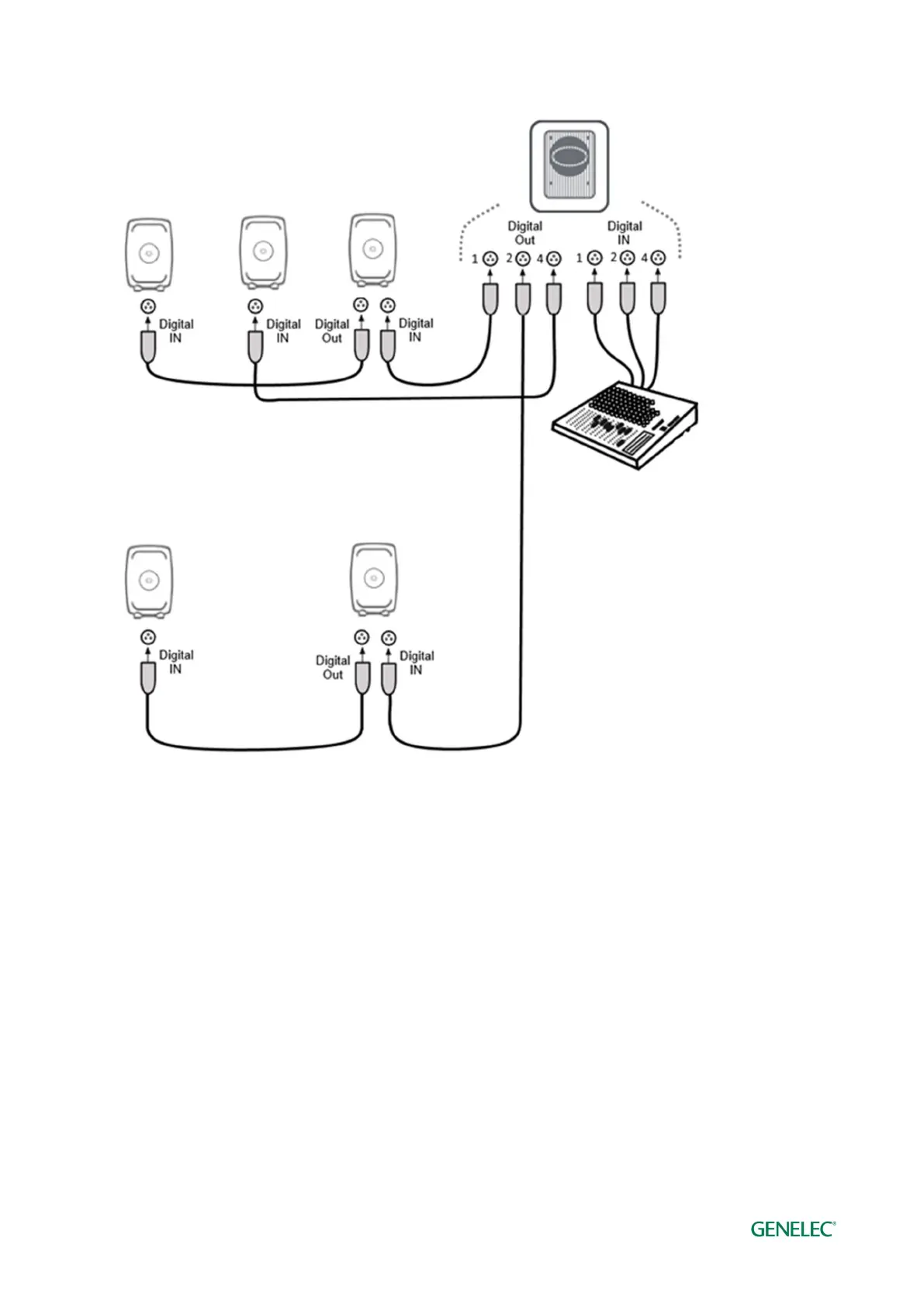

Figure 9. An example of an AES/EBU digital audio surround cabling with 7200 Series subwoofer
4.2.10 Digital Audio, Stereo with a SE7261 Subwoofer
Before cabling, turn off the power in all monitors and subwoofers. An example of the audio cabling
for AES/EBU digital audio is shown in Figure 10. Note that the AES/EBU digital audio channels
reproduced have to be selected on each monitor. The figure below also shows the dip switches
position for the required A or B channel selection.
Connect the following XLR digital audio cables:
 from the AES/EBU output of the audio source to the subwoofer ‘DIGITAL INPUT 1’ input
connector
 from the subwoofer ‘DIGITAL OUTPUT’ to the right monitor ‘DIGITAL IN’
 from the right monitor ‘DIGITAL OUT’ to left monitor ‘DIGITAL IN’
