Genelec Loudspeaker Manager (GLM) 4 - System Operating Manual page 20 of 87
Select the following digital audio channels for the monitor:
on the left monitor turn ON digital audio channel A
on the right monitor turn ON digital audio channel B

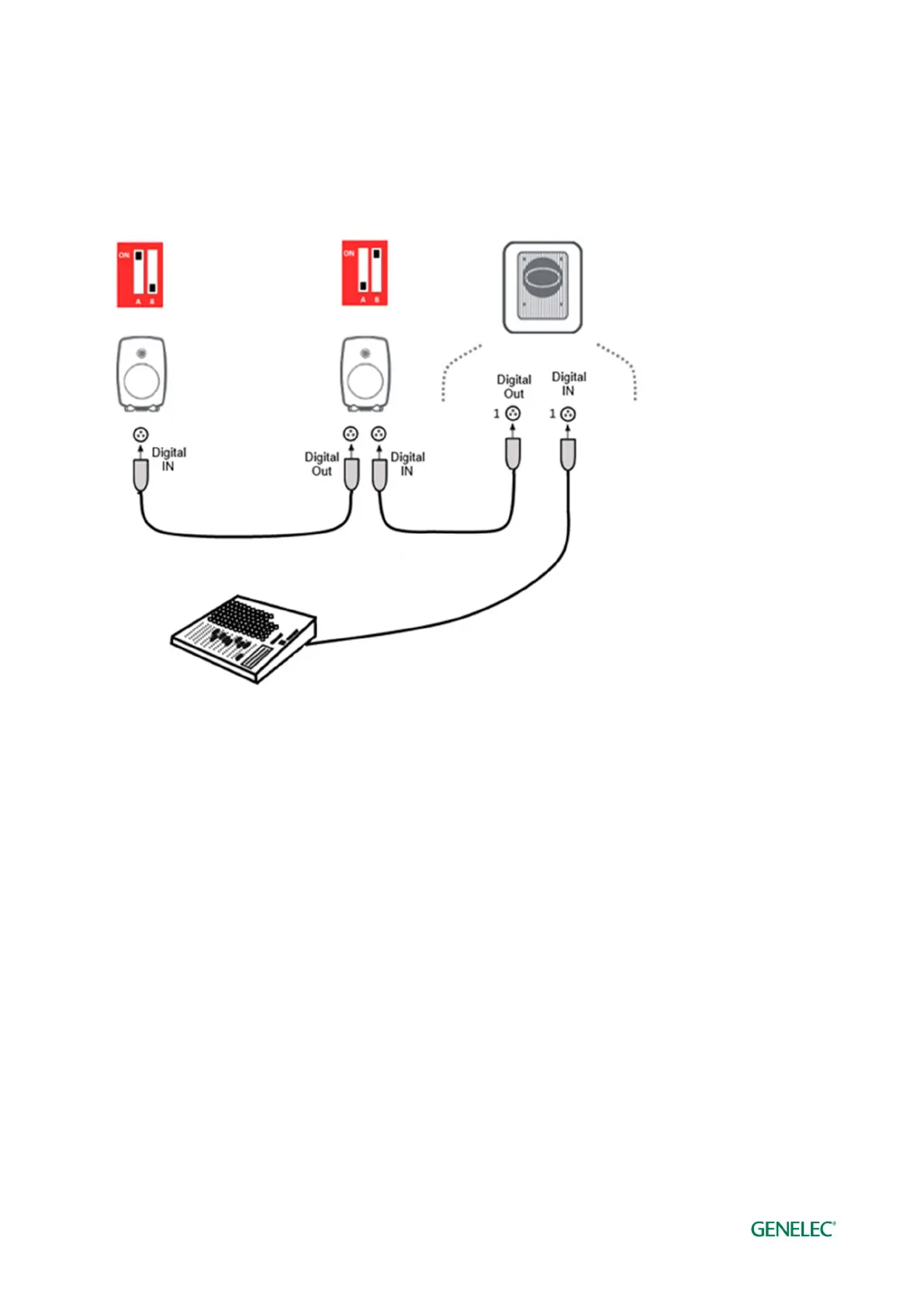

Figure 10. An example of an AES/EBU digital audio stereo cabling with SE7261 and digital channel
selections for each monitor.
4.2.11 Digital Audio 5.1 with a SE7261 Subwoofer
Before cabling, turn off the power in all monitors and subwoofers. An example of the audio cabling
for AES/EBU digital audio is shown in Figure 11.
Connect the following XLR digital audio cables:
Left/Right channel pair
from the AES/EBU output of the audio source to the subwoofer ‘DIGITAL INPUT1’
connector
from the subwoofer ‘DIGITAL OUTPUT1’ to the right monitor ‘DIGITAL IN’
from the right monitor ‘DIGITAL OUT’ to left monitor ‘DIGITAL IN’
Surround Left/Right channel pair
