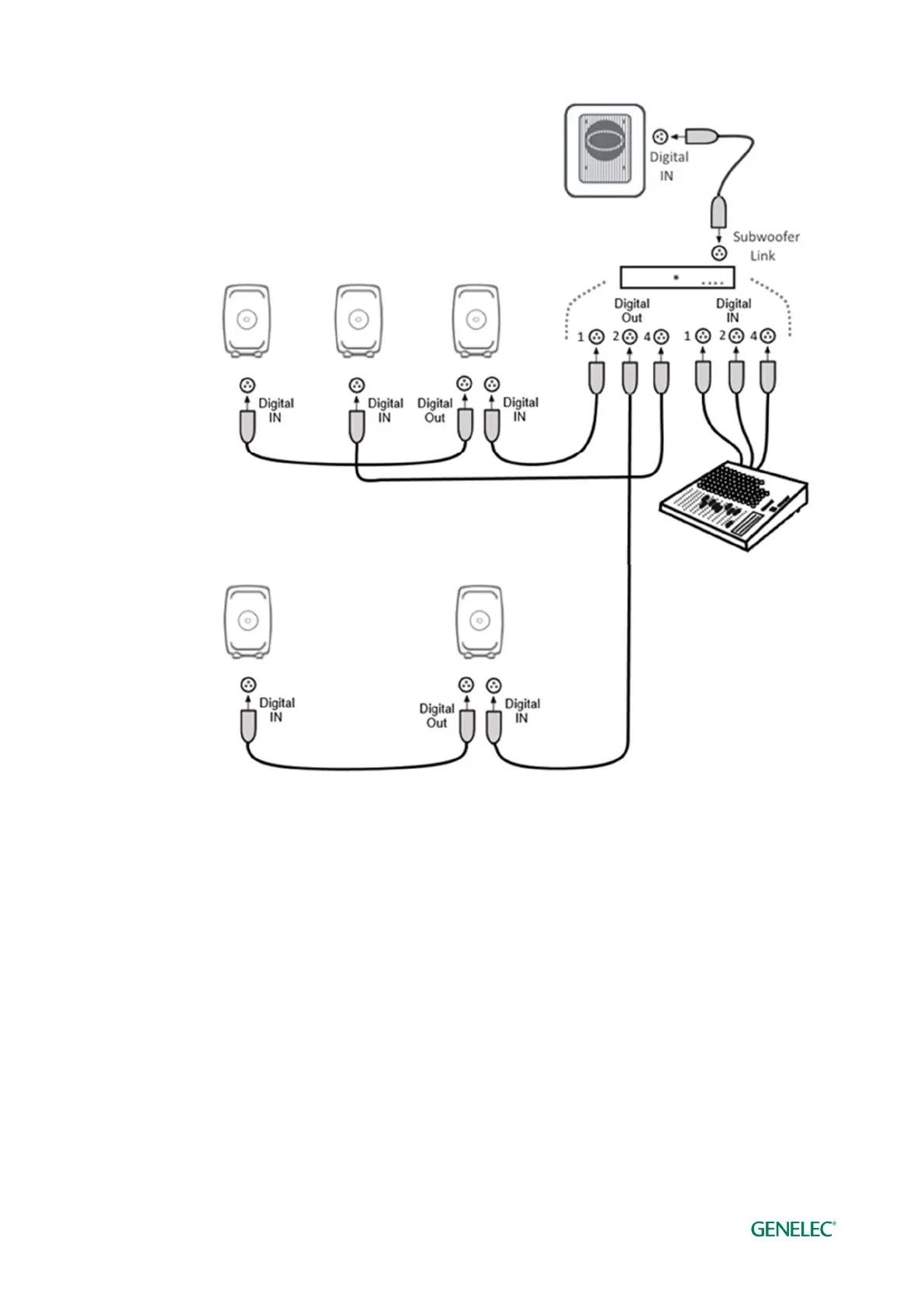

Figure 8. An example of an AES/EBU digital audio surround cabling with 7300 series subwoofer
and 9301.
4.2.9 Digital Audio 5.1 with 7200 Series Subwoofer
Before cabling, turn off the power in all monitors and subwoofers. An example of the audio cabling
for AES/EBU digital audio is shown in Figure 9. Any cable carrying the LFE channel can only be
connected to the subwoofer input 4.
Connect the following XLR digital audio cables:
Left/Right channel pair
 from the AES/EBU output of the audio source to the subwoofer ‘DIGITAL INPUT1’
connector
 from the subwoofer ‘DIGITAL OUTPUT1’ to the right monitor ‘DIGITAL IN’
