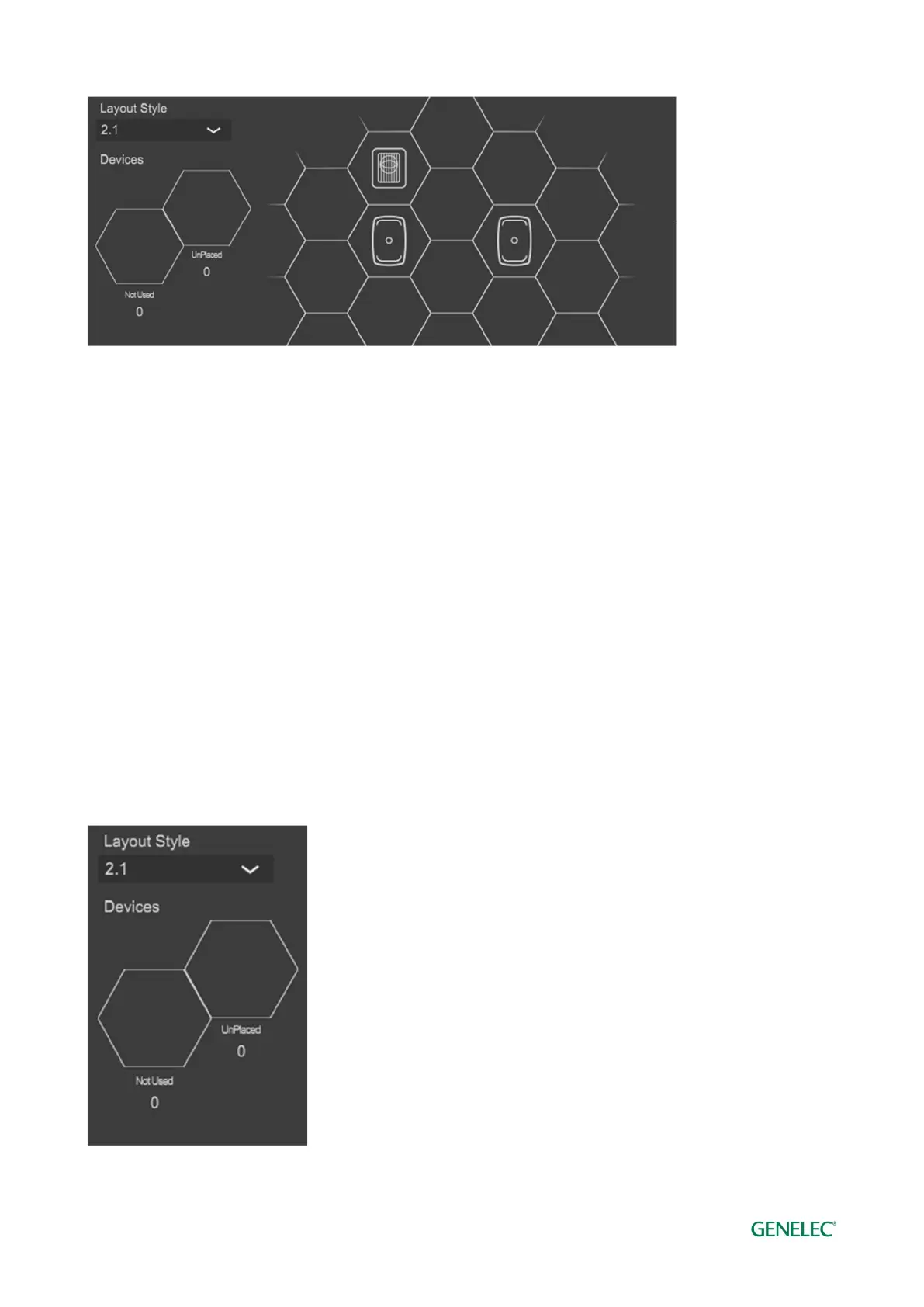

Figure 15. An example of completed placement showing an empty ‘UnPlaced’ monitor stack
When dragging the icon with the mouse, the monitor loudspeaker will play an identification tone
and flash its front panel LED. This identification tones depend on the SAM product type and the
tones can vary between products in the same setup.
After all monitors and subwoofer have been moved to the layout, click on the ‘Confirm Layout’ to
continue. The additional cell ‘Not Used’ can be used for placing those monitors or subwoofers
that are not used in the setup.
For example, an SE7261 subwoofer can support up to 8 x 8130 monitors. The system setup for
SE7381 starts with eight SE channels on the Stack. They are labeled 1A, 1B all the way through
4B. However, if your SE system only has two actual channels being used, for example in
input/outputs 1 for stereo (1A and 1 B), you would take the remaining six (2A thru 4B) off the
‘UnPlaced’ cell stack and place them into the ‘Not Used’ cell bin.
Any SAM monitor that you place into the ‘Not Used’ cell bin (Figure 16) is not a part of the current
Setup and is not available for creating other Groups. To start using these, create a new Setup
using the File/New syntax, making all monitors available in the ‘UnPlaced’ cell.
Figure 16. Location of the ' Not Used' bin.
