Genelec Loudspeaker Manager (GLM) 4 - System Ope
rating Manual
page 85 of 87

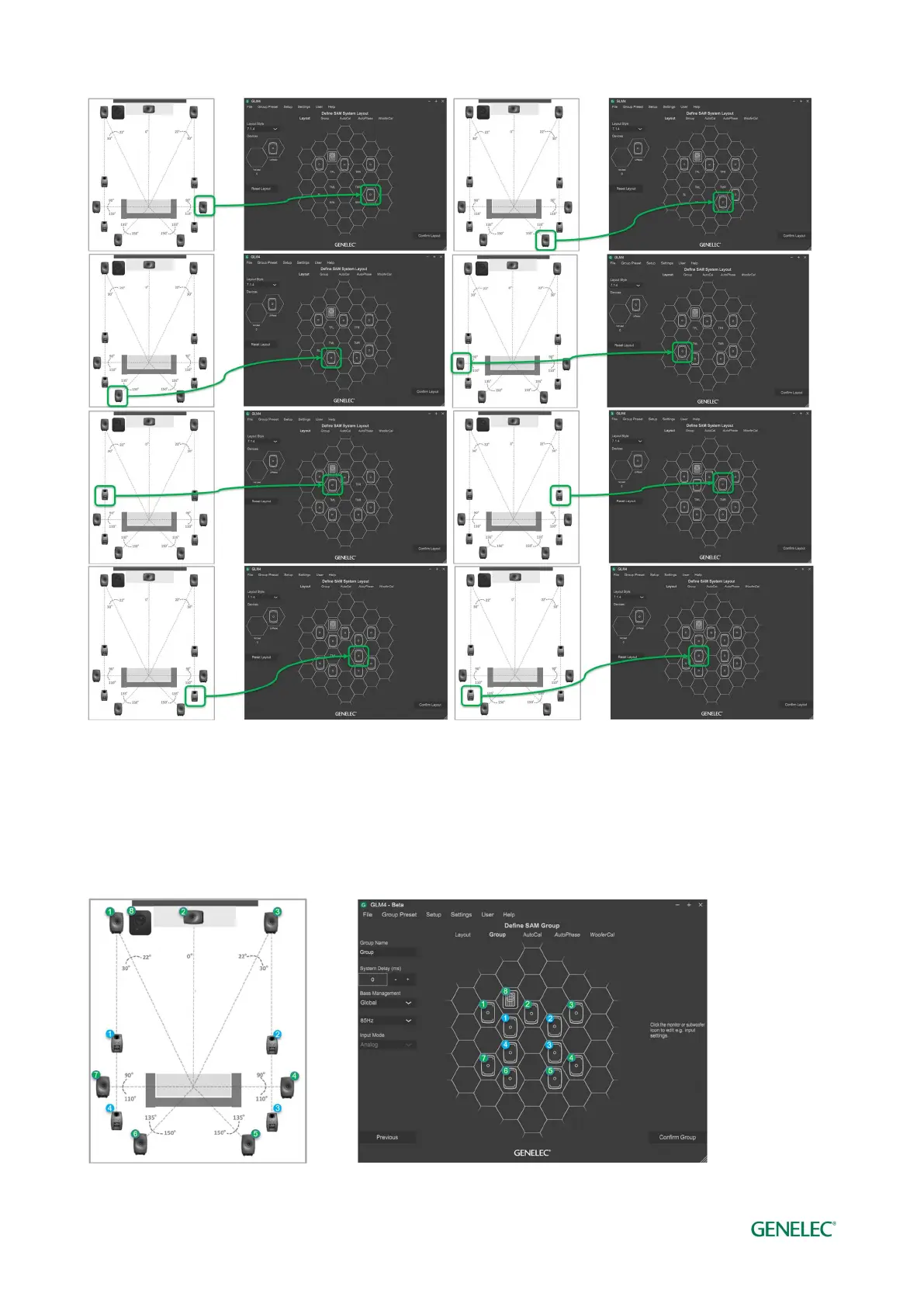

After all monitors and su
bwoofers are placed in t
he gr
id, confirm the la
yout by clicking the ‘Confirm
Layout’ key. After con
f
irmation, monitors shou
ld be shown comparable to the
picture below. GL
M
assigns default names
to monitors and ‘Top Front Left’ in Atmos
s
ystem is na
m
ed “Left”. To
rename, click the ‘To
p
Front Left’ monitor icon
(Blue 1 tag) and change the
name.
